USED 2012 MORI SEIKI NHX-4000

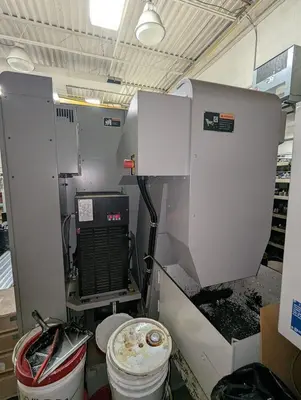

Only 144 hours of operational time on this machine. Also equipped with ChipBlaster JV10 CTS unit.

The Mori Seiki NHX4000 is a highly reliable used horizontal machining center suitable for various industrial applications. It features an X-axis travel of 22 inches, a Y-axis travel of 22 inches, and a Z-axis travel of 26 inches, providing excellent machining versatility. The machine is equipped with a CAT 40 spindle taper and operates at spindle speeds up to 12,000 RPM, supported by a spindle motor power of 20 HP continuous and 15 HP for 30 minutes.

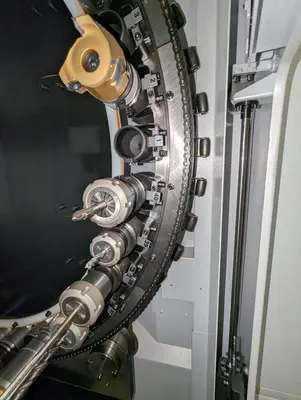

This CNC milling machine includes an Automatic Tool Changer (ATC) with a capacity of 40 tools, enhancing productivity through efficient tool management. The robust construction of the NHX4000 is evident in its weight of 16,720 pounds, ensuring stability and precision during operation. Measuring 166.3 inches in length, 107.1 inches in width, and 98.9 inches in height, it requires adequate space for installation and operation in your facility.

Overall, the Mori Seiki NHX4000 offers versatility, power, and reliability, making it a suitable option for businesses seeking a high-performance CNC machining solution.

X-axis Travel: 22"
Y-axis Travel: 22"
Z-axis travel: 26"
Spindle speed: 12,000
Spindle Motor Power(Cont. /30min): 20/15 HP
Spindle taper: CAT 40
ATC Capacity: 40 tools
Machine Weight: 16,720 pounds
Machine dimension L x W x H: 166.3" x 107.1" x 98.9"
