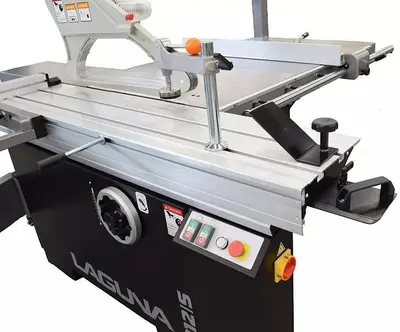

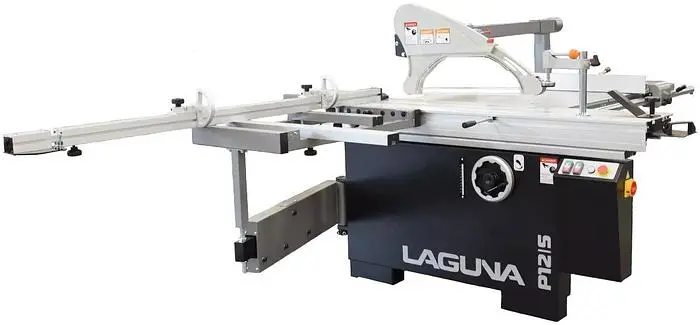

NEW LAGUNA P12|5
Overview
P12|5 Features 63″ dumbbell sliding table design, 5HP main motor, 3/4 HP scoring and swing-away overhead guard.
The 63″ sliding table is constructed of anodized aluminum. The dumbbell design is widely recognized as the superior choice for high-end sliders today. Ultra-smooth movement allows you to move the table effortlessly. The European style 51″ rip fence consists of a heavy-duty casting riding on a micro-polished solid steel bar. On the backside of the casting is a small adjustable wheel to make sideways movement a breeze. The rip fence is outfitted with a micro adjustment for fine-tuning; simply lock it in place and adjust fence incrementally. The overhead guard comes standard with quick-change 90° and 45° guards; you can switch from one to the other in a matter of seconds. A nice detail is the swing-away function that allows you to quickly move the guard out of the way. Dust collection hookup is out of the way at the end of gantry (5″). The heavy-duty anodized aluminum crosscut fence features two solid flip-stops, telescoping function (max 108″), 45° miter and is ergonomically designed to make it easier to read the tape.
Specs
Main Motor: 5HP Main
Motor: 3/4 HP Scoring
Volt: 220, 1 Phase, 60 Hz
Blade Capacity: 12″, 14″ (300mm, 355mm)
Max Blade: 14″ (355mm)(Minimum Height When Lowered: 1″/25mm)
Max Scoring Blade: 4 ¾” (120mm)
Scoring Adjusting: T-Handle Through Cast Top
Arbor: 30mm (Main), 20mm (Scoring)
Max Cutting Height 90° 14″/35mm Blade: 4-½″ (155mm)
Max Cutting Height 90° 12″/305mm Blade: 3-½″ (90mm)
Max Cutting Height 45° 14″/355mm Blade: 2-¾″ (70mm)
Max Cutting Height 45° 12″/305mm Blade: 2-⅜″ (62mm)
Main Blade Speed: 4000 RPM
Scoring Blade Speed: 8000 RPM
Dust Collection Port Saw: 4″ (100mm)
Sliding Table: 63″ (1600mm)
Sliding Table Width: 14.88″ (378mm)
Main Cast Table: 21-½″ x 35-¼″
Rip Fence: 51″ (1300mm)
Rip Fence Micro Adjust: Included
Rip Fence Bar: 1-⅝″ (40mm) Solid Steel Micro Polished
Push Handle: Included
Rip Shoe: Included
Hold Down Clamp: Included
32″ x 12″ Steel Extension Table: Included
Crosscut Fence: Flip-Stops
Crosscut Fence Readout: Inch/Metric
Crosscut Max Collapsed: 77″
Crosscut Fence Max Extended: 140″
Table Lock Positions: 2 Tabs, 20 Notches = 40 Total
Shipping Dimensions (L x W x H): 83″ x 46″ x 46″
Weight (Net/Ship): 1405/1525 lbs
