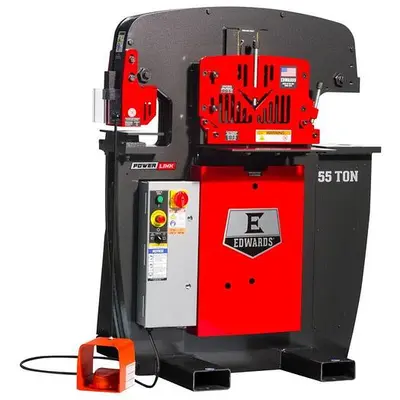

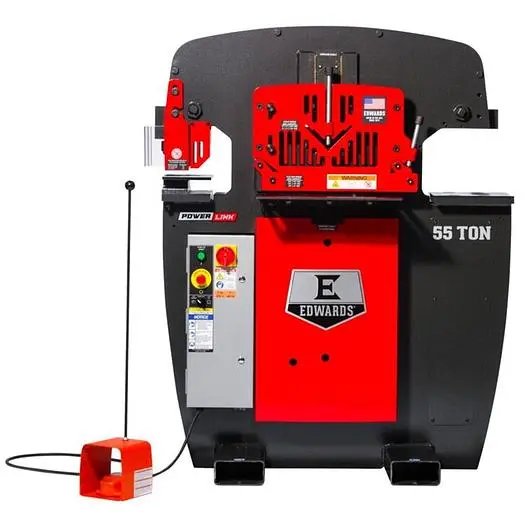

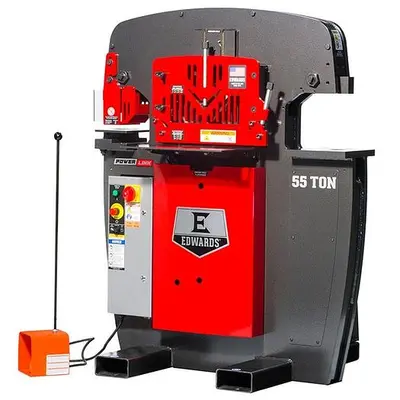

NEW EDWARDS 55 TON

Four Available Workstations Universal Open Tooling Station Electric Stroke Control ANSI B11.5-1988R(02) Compliant ETL/UL Approved Controls The Edwards 55 Ton Ironworker is well suited to fit the needs of any fab shop, large or small. Standard features include a Punch Assembly with Pedestal Die Table, Flat Bar Shear, Angle Shear and a universal open tooling station designed to accept optional Tooling Accessories. The optional PowerLink System allows your Ironworker to act as a power source to our expanding line of innovative PowerLink Hydraulic Tools, such as the 10 Ton Tube/Pipe Bender, 20 Ton Shop Press and 40 Ton Shop Press. PUNCH Rating 55 Tons Max. Capacity 1-1/16" Dia. in 5/8" A36 (65,000 PSI Tensile) Stroke 1-1/4" Throat Depth 7-1/2" Open Height 8-1/8" Shut Height 6-7/8" Work Height 36-9/16" FLAT BAR SHEAR Max. Capacity 3/8" x 14" 1/2" x 12" 3/4" x 4" Max. Round 7/8" Max. Square 7/8" Work Height 34-1/2" ANGLE SHEAR Max. Capacity 3" x 3" x 3/8" 4" x 4" x 1/4" Work Height 39-7/8" OPTIONAL COPER NOTCHER Max. Capacity 2-1/2" x 4" x 5/16" Work Height 39-1/2" OPEN STATION Throat Depth 11-3/16" Open Height 8-1/8" Shut Height 6-7/8" Stroke 1-1/4" Work Height 34-1/2" GENERAL SPECIFICATIONS Standard Motor 5 HP 3~ 208 V or 230 V 1725 RPM 14 A Optional Motors 5 HP 3~ 460 V 1725 RPM 7 A 5 HP 3~ 575 V 1725 RPM 6 A 5 HP 1~ 230 V 1725 RPM 23 A Hydraulic Pump 3-1/2 GPM - 1 Stage Valve Pressure 2500 PSI Reservoir 7 Gallons Cylinder 2-1/2" Ram DIMENSIONS Height 55-1/4" Width 44-3/8" Depth 36-1/8" Shipping Weight 2480 lb
