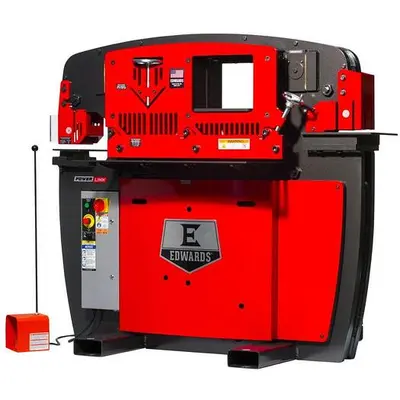

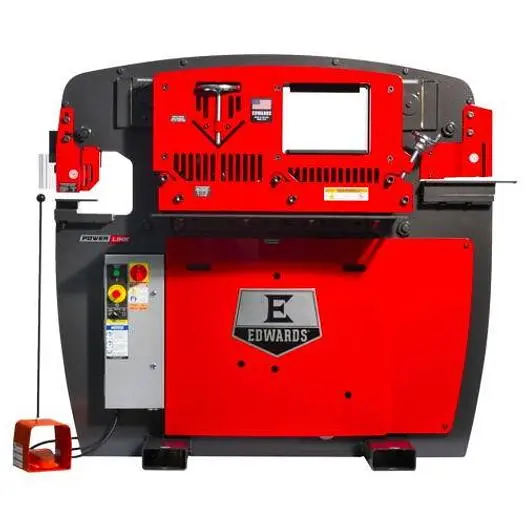

Five Available Workstations Universal Open Tooling Station 24" Flat Bar Shear Dedicated Coper Notcher Electric Stroke Control ANSI B11.5-1988R(02) Compliant ETL/UL Approved Controls The five workstations of the Edwards 65 Ton Ironworker give you the power to handle any size job and the flexibility to tailor it to your specific needs. Standard features include a Punch Assembly with Pedestal Die Table, 24" wide Flat Bar Shear, Angle Shear, Coper Notcher and a universal open tooling station designed for optional Tooling Accessories. The optional PowerLink System allows your Ironworker to act as a power source to our expanding line of innovative PowerLink Hydraulic Tools, such as the 10 Ton Tube/Pipe Bender, 20 Ton Shop Press and 40 Ton Shop Press. PUNCH Rating 65 Tons Max. Capacity 1-1/16" Dia. in 3/4" A36 (65,000 PSI Tensile) Stroke 1-13/16" Throat Depth 9-3/4" Open Height 8-3/4" Shut Height 6-15/16" Work Height 36-9/16" FLAT BAR SHEAR Max. Capacity 3/8" x 24" 1/2" x 14" 1" x 4" Max. Round 1" Max. Square 1" Work Height 34-1/2" ANGLE SHEAR Max. Capacity 5" x 5" x 3/8" Work Height 43-1/2" COPER NOTCHER Max. Capacity 2-1/2" x 5" x 3/8" Work Height 39-1/2" OPEN CAVITY Height 8-3/4" Width 12" Work Height 43" GENERAL SPECIFICATIONS Standard Motor 7.5 HP 3~ 208 V or 230 V 1765 RPM 22 A Optional Motors 7.5 HP 3~ 460 V 1765 RPM 11 A 7.5 HP 3~ 575 V 1770 RPM 8 A 5 HP 1~ 230 V 1725 RPM 23 A *7.5 HP 1~ 230 V 1765 RPM 36 A *Required for 1~ Hydraulic Accessory Pack Hydraulic Pump 10-1/2 GPM - 2 Stage Valve Pressure 3500 PSI Reservoir 17 Gallons Cylinder 3-1/2" Ram DIMENSIONS Height 57" Width 62-1/8" Depth 45" Shipping Weight 4750 lb
