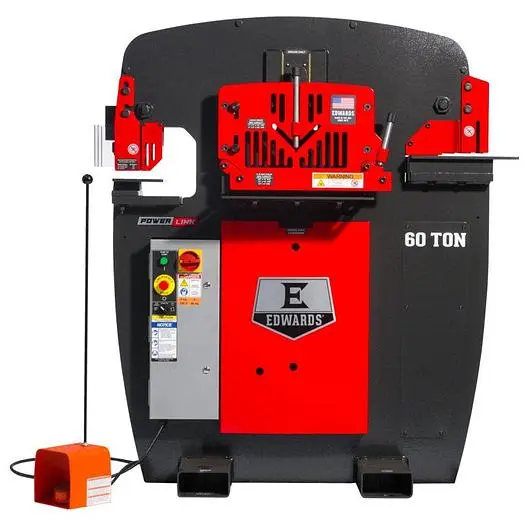

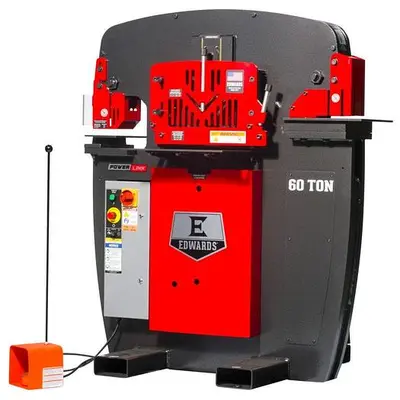

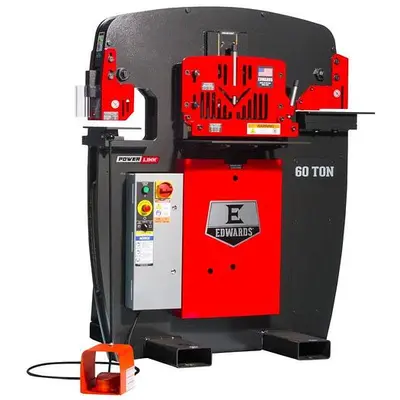

NEW EDWARDS 60 TON

Four Loaded Workstations Dedicated Coper Notcher Station Electric Stroke Control ANSI B11.5-1988R(02) Compliant ETL/UL Approved Controls The Edwards 60 Ton Ironworker is a robust machine featuring a dedicated Coper Notcher station, adding strength and stability to this great tool. Standard features include a Punch Assembly with Pedestal Die Table, 14" wide Flat Bar Shear, Angle Shear and Coper Notcher. The optional PowerLink System allows your Ironworker to act as a power source to our expanding line of innovative PowerLink Hydraulic Tools, such as the 10 Ton Tube/Pipe Bender, 20 Ton Shop Press and 40 Ton Shop Press. PUNCH Rating 60 Tons Max. Capacity 1" Dia. in 3/4" A36 (65,000 PSI Tensile) Stroke 1-1/4" Throat Depth 8-7/8" Open Height 8-1/8" Shut Height 6-7/8" Work Height 36-9/16" FLAT BAR SHEAR Max. Capacity 3/8" x 14" 1/2" x 12" 3/4" x 4" Max. Round 7/8" Max. Square 7/8" Work Height 34-1/2" ANGLE SHEAR Max. Capacity 3" x 3" x 1/2" 4" x 4" x 3/8" Work Height 39-7/8" COPER NOTCHER Max. Capacity 2-1/2" x 4" x 3/8" Work Height 39-1/2" GENERAL SPECIFICATIONS Standard Motor 5 HP 3~ 208 V or 230 V 1725 RPM 14 A Optional Motors 5 HP 3~ 460 V 1725 RPM 7 A 5 HP 3~ 575 V 1725 RPM 6 A 5 HP 1~ 230 V 1725 RPM 23 A Hydraulic Pump 3-1/2 GPM - 1 Stage Valve Pressure 2500 PSI Reservoir 7 Gallons Cylinder 2-1/2" Ram DIMENSIONS Height 56-1/8" Width 46-1/8" Depth 36-1/8" Shipping Weight 2550 lb
