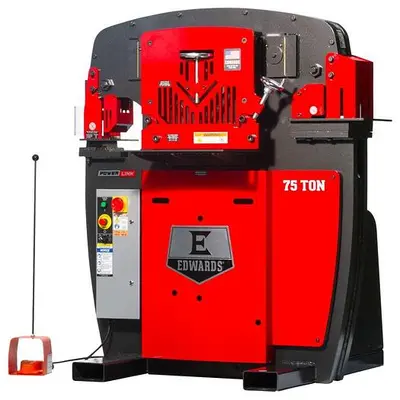

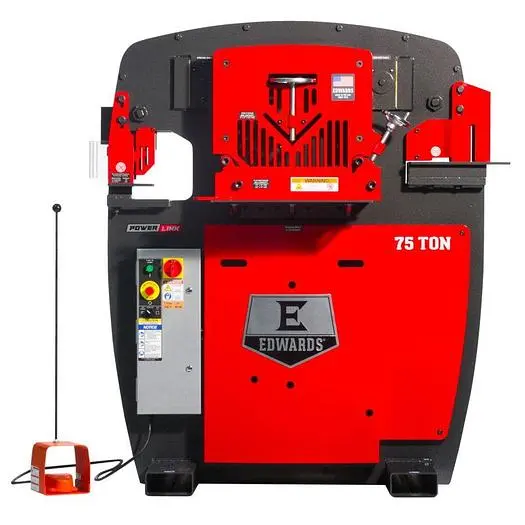

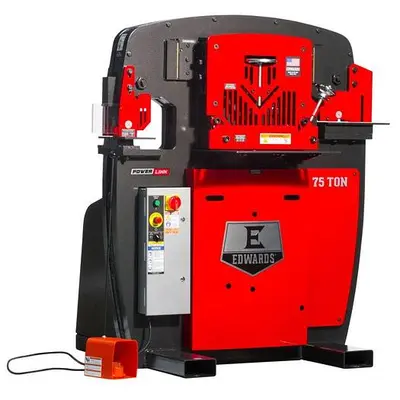

Four Available Workstations Punch Assembly Designed for Optional Tooling Dedicated Coper Notcher Station Electric Stroke Control ANSI B11.5-1988R(02) Compliant ETL/UL Approved Controls The Edwards 75 Ton Ironworker offers you greater capacity to accomplish larger tasks. Its standard features include a Punch Assembly with Pedestal Die Table, a 14" wide Flat Bar Shear, Angle Shear and Coper Notcher. The Punch Assembly is easily converted to an open station designed to accept optional Tooling Accessories, allowing flexibility to customize your Ironworker according to your needs. The optional PowerLink System allows your Ironworker to act as a power source to our expanding line of innovative PowerLink Hydraulic Tools, such as the 10 Ton Tube/Pipe Bender, 20 Ton Shop Press and 40 Ton Shop Press. PUNCH Rating 75 Tons Max. Capacity 1-1/16" Dia. in 7/8" A36 (65,000 PSI Tensile) Stroke 1-13/16" Throat Depth 10" Open Height 8-3/4" Shut Height 6-15/16" Work Height 39-1/16" FLAT BAR SHEAR Max. Capacity 1/2" x 14" 3/4" x 10" Max. Round 1" Max. Square 1" Work Height 37" ANGLE SHEAR Max. Capacity 5" x 5" x 1/2" Work Height 43-15/16" COPER NOTCHER Max. Capacity 2-1/2" x 5" x 1/2" Work Height 42" GENERAL SPECIFICATIONS Standard Motor 7.5 HP 3~ 208 V or 230 V 1765 RPM 22 A Optional Motors 7.5 HP 3~ 460 V 1765 RPM 11 A 7.5 HP 3~ 575 V 1770 RPM 8 A 5 HP 1~ 230 V 1725 RPM 23 A *7.5 HP 1~ 230 V 1765 RPM 36 A *Required for 1~ Hydraulic Accessory Pack Hydraulic Pump 10-1/2 GPM - 2 Stage Valve Pressure 3500 PSI Reservoir 17 Gallons Cylinder 3-1/2" Ram DIMENSIONS Height 60-1/4" Width 50" Depth 45" Shipping Weight 4100 lb
