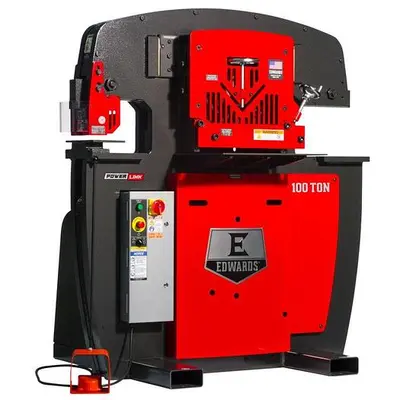

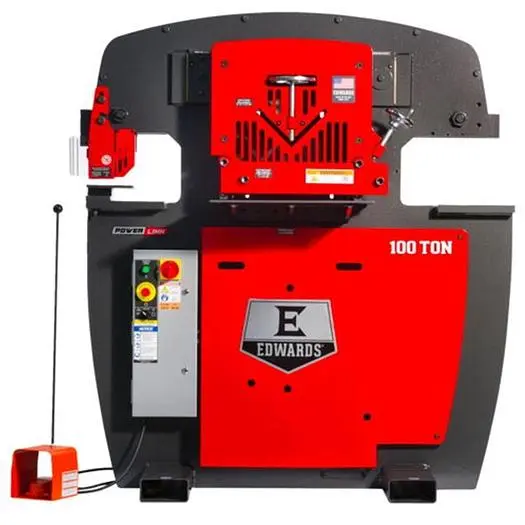

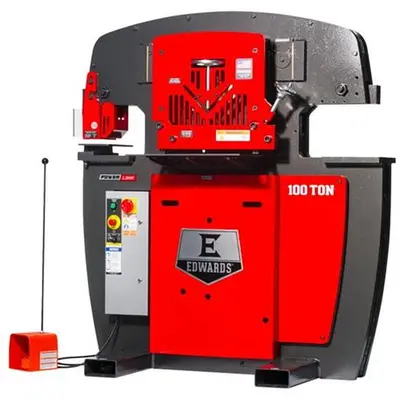

NEW EDWARDS 100 TON

Four Available Workstations High Capacity Angle Shear Universal Open Tooling Station Electric Stroke Control ANSI B11.5-1988R(02) Compliant ETL/UL Approved Controls If you're looking for versatility and power, the Edwards 100 Ton Ironworker is perfect for your shop. Standard features include a Punch Assembly, a 14" wide Flat Bar Shear, a high capacity Angle Shear and a universal open tooling station designed for optional Tooling Accessories allowing you to select the perfect tool for your needs. The optional PowerLink System allows your Ironworker to act as a power source to our expanding line of innovative PowerLink Hydraulic Tools, such as the 10 Ton Tube/Pipe Bender, 20 Ton Shop Press and 40 Ton Shop Press. PUNCH Rating 100 Tons Max. Capacity 1-1/16" Dia. in 1" A36 (65,000 PSI Tensile) Stroke 1-13/16" Throat Depth 11" Open Height 8-3/4" Shut Height 6-15/16" Work Height 39-1/16" FLAT BAR SHEAR Max. Capacity 3/4" x 14" 1" x 10" Max. Round 1-1/4" Max. Square 1-1/4" Work Height 37" ANGLE SHEAR Max. Capacity 6" x 6" x 1/2" Work Height 43-15/16" OPTIONAL COPER NOTCHER Max. Capacity 2-1/2" x 6" x 1/2" Work Height 42" OPEN STATION Throat Depth 14-3/4" Open Height 8-3/4" Shut Height 6-15/16" Stroke 1-13/16" Work Height 37" GENERAL SPECIFICATIONS Standard Motor 7.5 HP 3~ 208 V or 230 V 1765 RPM 22 A Optional Motors 7.5 HP 3~ 460 V 1765 RPM 11 A 7.5 HP 3~ 575 V 1770 RPM 8 A 5 HP 1~ 208 V or 230 V 1725 RPM 23 A *7.5 HP 1~ 230 V 1765 RPM 36 A *Required for 1~ Hydraulic Accessory Pack Hydraulic Pump 10-1/2 GPM - 2 Stage Valve Pressure 3500 PSI Reservoir 17 Gallons Cylinder 3-1/2" Ram DIMENSIONS Height 61-11/16" Width 56-1/8" Depth 45" Shipping Weight 4650 lb
