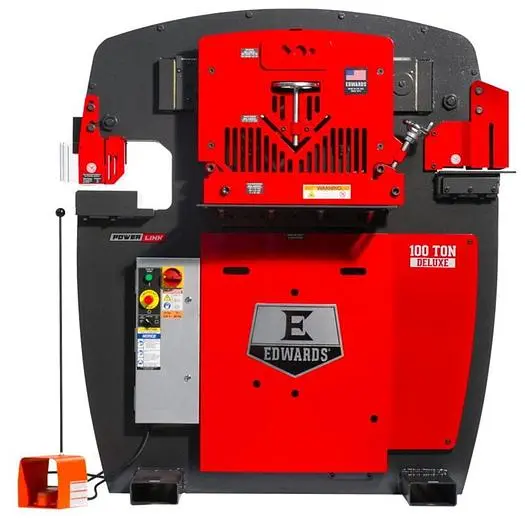

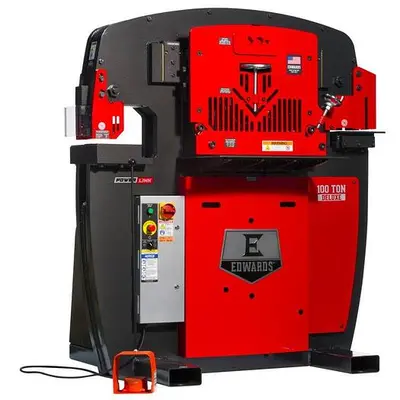

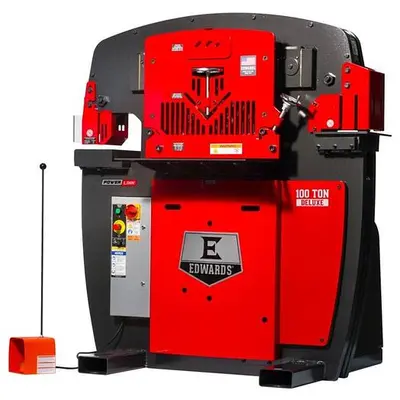

NEW EDWARDS 100 TON DELUXE

Five Loaded Workstations Built-in Rod Shear for Square and Round Bar 18" Flat Bar Shear Dedicated Coper Notcher Electric Stroke Control ANSI B11.5-1988R(02) Compliant ETL/UL Approved Controls A brute of an Ironworker, the Edwards 100 Ton Deluxe Ironworker features super-duty construction and a powerful 10hp motor. Standard features include a Punch Assembly, 18" wide Flat Bar Shear, Angle Shear, Coper Notcher and a special built-in Rod Shear for solid square and round bar stock. The optional PowerLink System allows your Ironworker to act as a power source to our expanding line of innovative PowerLink Hydraulic Tools, such as the 10 Ton Tube/Pipe Bender, 20 Ton Shop Press and 40 Ton Shop Press. PUNCH Rating 100 Tons Max. Capacity 1-1/16" Dia. in 1" A36 (65,000 PSI Tensile) Stroke 1-15/16" Throat Depth 11" Open Height 8-3/4" Shut Height 6-13/16" Work Height 39-3/8" FLAT BAR SHEAR Max. Capacity 1/2" x 18" 3/4" x 14" 1" x 10" Max. Round 1" Max. Square 1" Work Height 37" ANGLE SHEAR Max. Capacity 6" x 6" x 1/2" Work Height 43-15/16" ROD SHEAR Max. Round 1-1/2" Max. Square 1-1/4" Work Height 54-1/2" COPER NOTCHER Max. Capacity 3" x 6" x 1/2" Work Height 42" GENERAL SPECIFICATIONS Standard Motor 10 HP 3~ 208 V or 230 V 1770 RPM 26 A Optional Motors 10 HP 3~ 460 V 1770 RPM 12 A 10 HP 3~ 575 V 1770 RPM 10 A 10 HP 1~ 230 V 1740 RPM 40 A Hydraulic Pump 24 GPM Valve Pressure 3800 PSI Reservoir 17 Gallons Cylinder 2-1/2" Ram DIMENSIONS Height 63-1/8" Width 56" Depth 45-1/2" Shipping Weight 5180 lb
