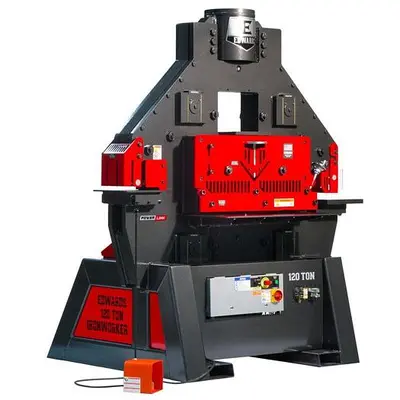

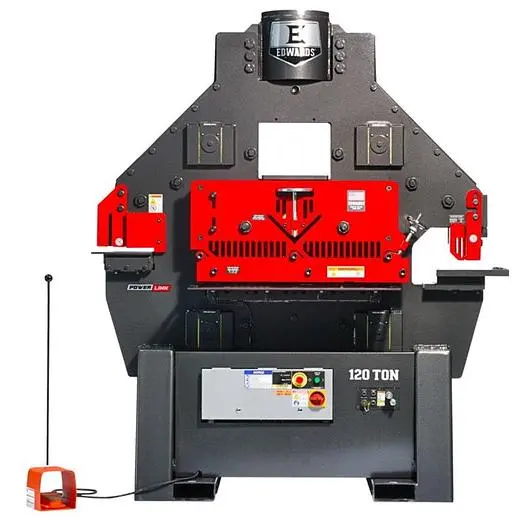

NEW EDWARDS 120 TON

Five Available Workstations Universal Open Tooling Station 24" Flat Bar Shear Dedicated Coper Notcher Electric Stroke Control ANSI B11.5-1988R(02) Compliant ETL/UL Approved Controls Our most powerful Ironworker, the Edwards 120 Ton Ironworker offers the most in capacity and versatility. Standard features include a Punch Assembly, 24" wide Flat Bar Shear, high capacity Angle Shear, Coper Notcher and a universal open tooling station for optional Tooling Accessories allowing you to select the perfect tool for your needs. The optional PowerLink System allows your Ironworker to act as a power source to our expanding line of innovative PowerLink Hydraulic Tools, such as the 10 Ton Tube/Pipe Bender, 20 Ton Shop Press and 40 Ton Shop Press. PUNCH Rating 120 Tons Max. Capacity 1-1/2" Dia. in 1" A36 (65,000 PSI Tensile) Stroke 2" Throat Depth 11" Open Height 9-1/8" Shut Height 7-1/8" Work Height 36-5/8" FLAT BAR SHEAR Max. Capacity 1/2" x 24" 1" x 12" Max. Round 1-1/4" Max. Square 1-1/4" Work Height 33-1/4" ANGLE SHEAR Max. Capacity 6" x 6" x 1/2" Work Height 52-1/2" COPER NOTCHER Max. Capacity 3" x 6" x 1/2" Work Height 40" OPEN CAVITY Height 9" Width 11-3/4" Work Height 51-3/4" GENERAL SPECIFICATIONS Standard Motor 10 HP 3~ 208 V or 230 V 1770 RPM 26 A Optional Motors 10 HP 3~ 460 V 1770 RPM 12 A 10 HP 3~ 575 V 1770 RPM 10 A 10 HP 1~ 230 V 1740 RPM 40 A Hydraulic Pump 24 GPM Valve Pressure 3800 PSI Reservoir 17 Gallons Cylinder 2-3/4" Ram DIMENSIONS Height 79 3/8" Width 60" Depth 60" Shipping Weight 5500 lb
