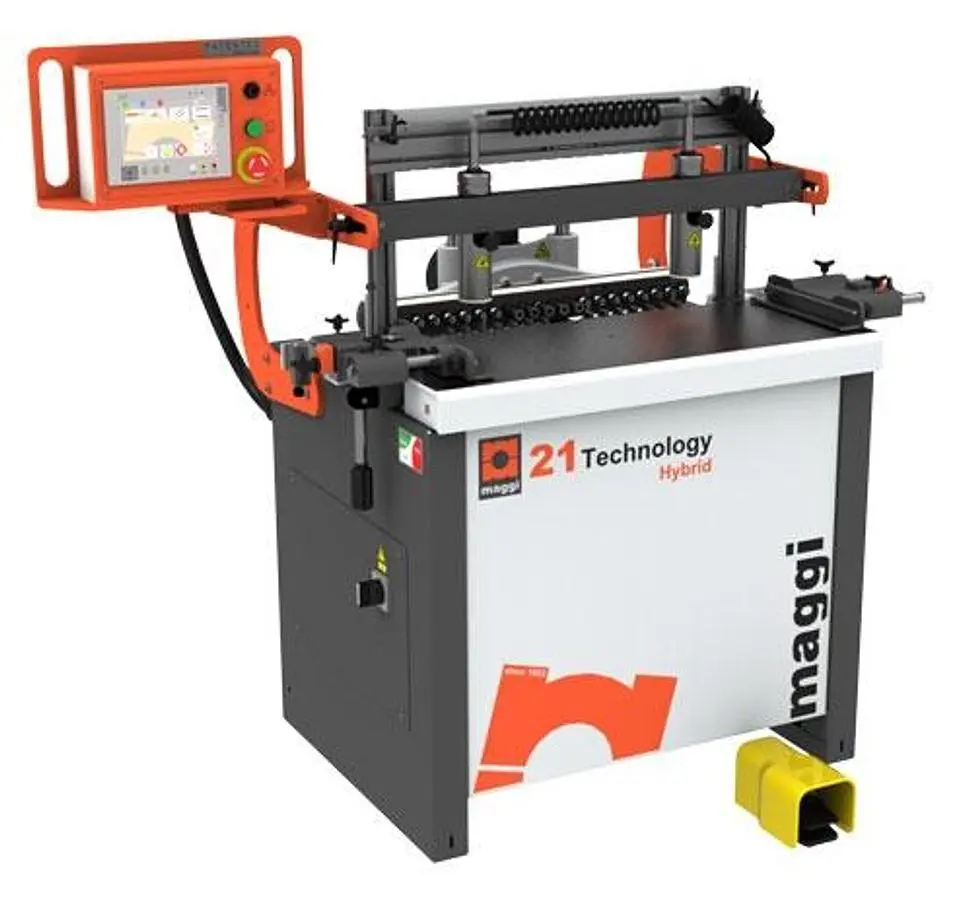

NEW MAGGI SYSTEM 21

COMPUTER CONTROLLED DRILL HEAD The Maggi System 21 Technology Boring Machine provides a 21 spindle 32 mm universal drilling solution with CNC boring capabilities. The drill head is controlled via a touch screen and programmable for horizontal and vertical boring as well as boring at any angle between 0 and 90 degrees. Jobs can be stored and recalled at a touch of a button, resulting in quick setups. Accurate positioning of the boring unit to the table via CNC touch panel controls. 0 to 2.5" adjustable drilling depth via CNC touch panel controls. (2) patented quick release material clamps with auto-setting to firmly hold material to table. Powerful 2 HP motor. 34" x 13" cast iron table. Side fences with mechanical digital readout for quick and accurate setting. 120" line boring fence with (4) stops. Foot actuated pneumatic clamps and drill cycle. Uses 10 Left Hand (red/orange) and 11 Right Hand (black) boring bits. Capable of drilling holes for Cabineo panel fasteners. Includes: Magnetic Starter with overload protection and (21) quick change chucks. Dust Outlet: 3" Voltage: 230V 3-Phase Net weight: 750 lbs. Dimensions: 62.2" x 37.4" x 41.75" Tall. Crated Dimensions: 44.9" x 37.4" x 55.1" Tall. Crated Weight: 815 lbs.
