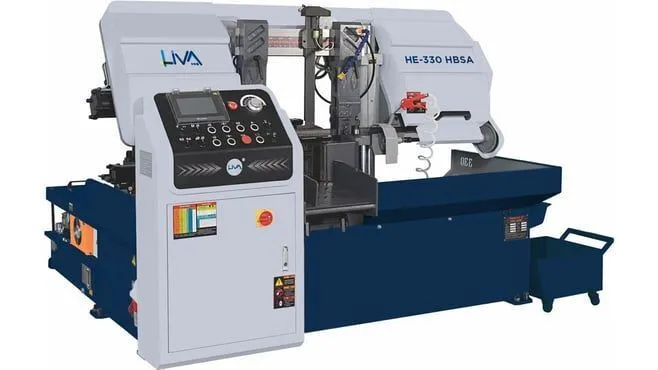

NEW LIVAMAK HE-330 HBSB Bandsaw
Overview
Description
2026 LIVA Model HE-330 HBSB
Sawing speed 50% higher, saw blade life 50% longer
Machine accuracy 50% increased, equipment service life 50% higher.
Intelligent welding: robot welding, surpassing the limit of manual operation to ensure stability, uniformity and consistency.
Special processing: micron-level precision CNC multi-faceted processing at one time, shot blasting, corrosion-resistant and wear-resistant coating to ensure high precision, durability and reliability of parts.
Precision assembly: years of technology accumulation, process assembly, stable and efficient operation of equipment.
This machine is an equipment for sawing metal materials by bi-metallic saw blades
It has the advantages of compact structure, fast cutting speed, high precision, narrow saw gap, low noise, convenient operation, etc. It is a new energy-saving product that replaces circular saws and hack saws.
Specifications
| Rect-Cap (H) | 13" | 330.2 mm |
|---|---|---|
| Rect-Cap (W) | 13" | 330.2 mm |
| Rounds-Cap | 13" | 330.2 mm |
| Square-Cap | 13" | 330.2 mm |
| Power | 5 hp | 3.7 kW |
| Type (Auto, Manual, Semi) | Manual | Manual |
| Blade Width | 1.34" | 34.036 mm |
| Blade Thickness | 0.042" | 1.0668 mm |
| Blade Length | 162" | 4,114.8 mm |
| Control | CNC (Inverter) | CNC (Inverter) |
| Dimensions | 92.52" x 87.94" x 59.06" | 92.52" x 87.94" x 59.06" |
Max. cutting capacity (mm): Ø330 / 330W × 330H
Saw wheel diameter (mm): Φ450
Saw blade size (mm): 34 × 1.1 × 4115
Saw blade line speed (m/min): 20–80
Feeding rate: Stepless
Motors:
Main motor (kW): 5HP
Hydraulic motor (kW): 1HP
Cooling motor (W): 135
Tanks' capacity:
Hydraulic tank (L): 60 liters
Cooling tank (L): 50 liters
Table height (mm): 685 (26.97"
Dimension (mm): 2350 × 2220 × 1500 92.52" x 87.94" x 59.06"
