USED DOOKOO DK9-6030

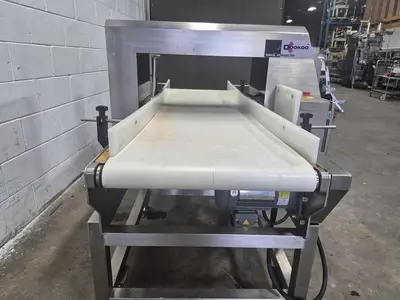

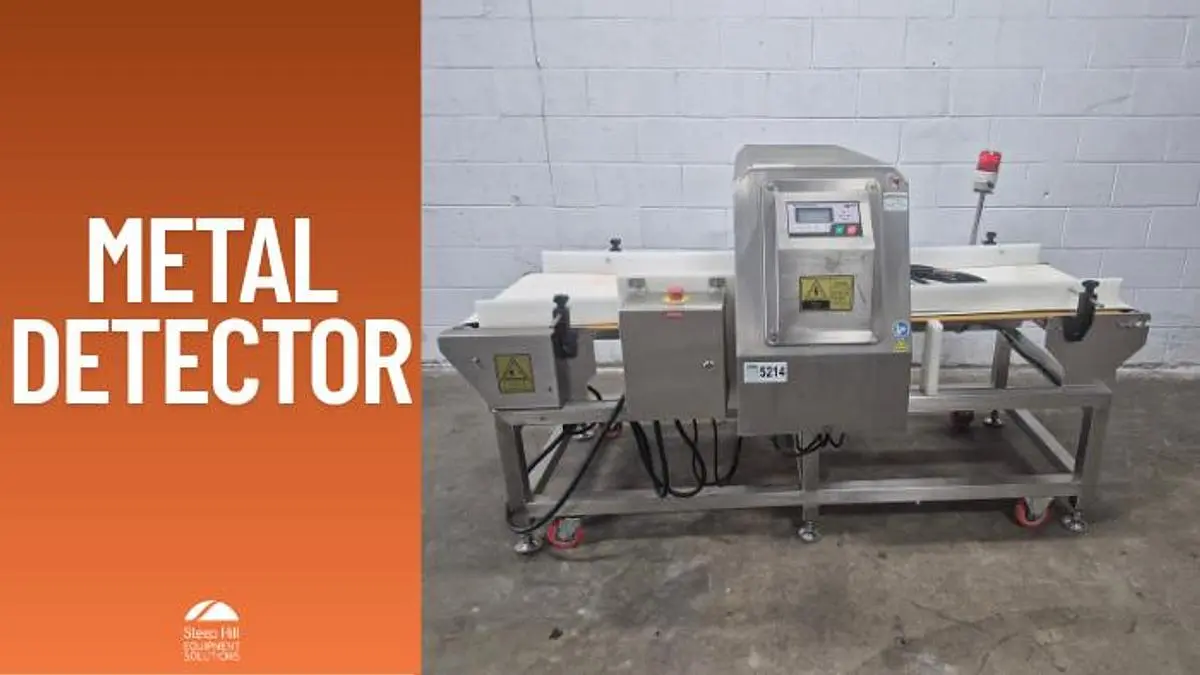

Dookoo DK9-6030 Metal Detector
This industrial unit is a conveyor-style metal detector primarily used for quality control and safety in manufacturing.
Specs:

Aperture: 16.75″L x 26″W x 13″H, from belt: 11.5″H
Conveyor Belt: 79″L x 22.5″W, usable width: 19.25″W
Side Rails: 72.5″L x 3.5″H high
Belt Speed: 27m per min
Power Supply: AC 220V, 50Hz
Sensitivity: 1.6Fe, 2.3nFe, 3.0SS
Frequency: 187K
Balanced Signal: 11m
Proof: IP67
Detection:  A product moves through the "Detecting Head" via a belt
Signal Analysis: If metal is found, the system creates an error signal
Rejection: The machine typically triggers a "Reject Method," such as stopping the belt and sounding an alarm, or using a mechanical arm to push the contaminated product off the line
Primary Applications: Food Industry, Pharmaceuticals, Machine Protection and Consumer Goods

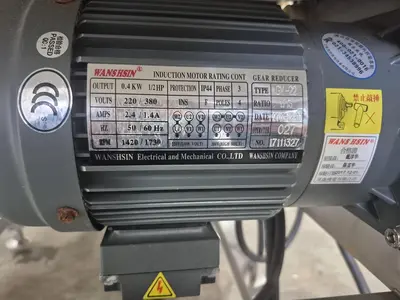

Powered by a Wanshsin GV-22 Three-Phase Induction Gear Motor
Specs:

Power Output: 0.4 KW (equivalent to 1/2 HP)
Gear Ratio: 1:15
Speed (RPM): The raw motor runs at 1420 RPM (at 50Hz) or 1730 RPM (at 60Hz). After the 1:15 reduction, the final output shaft rotates at approximately 95–115 RPM
Electrical: Designed for 3-phase power, supporting either 220V (Delta connection) or 380V (Star connection)

Location Code: B8
