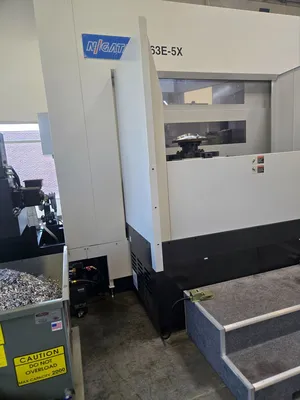

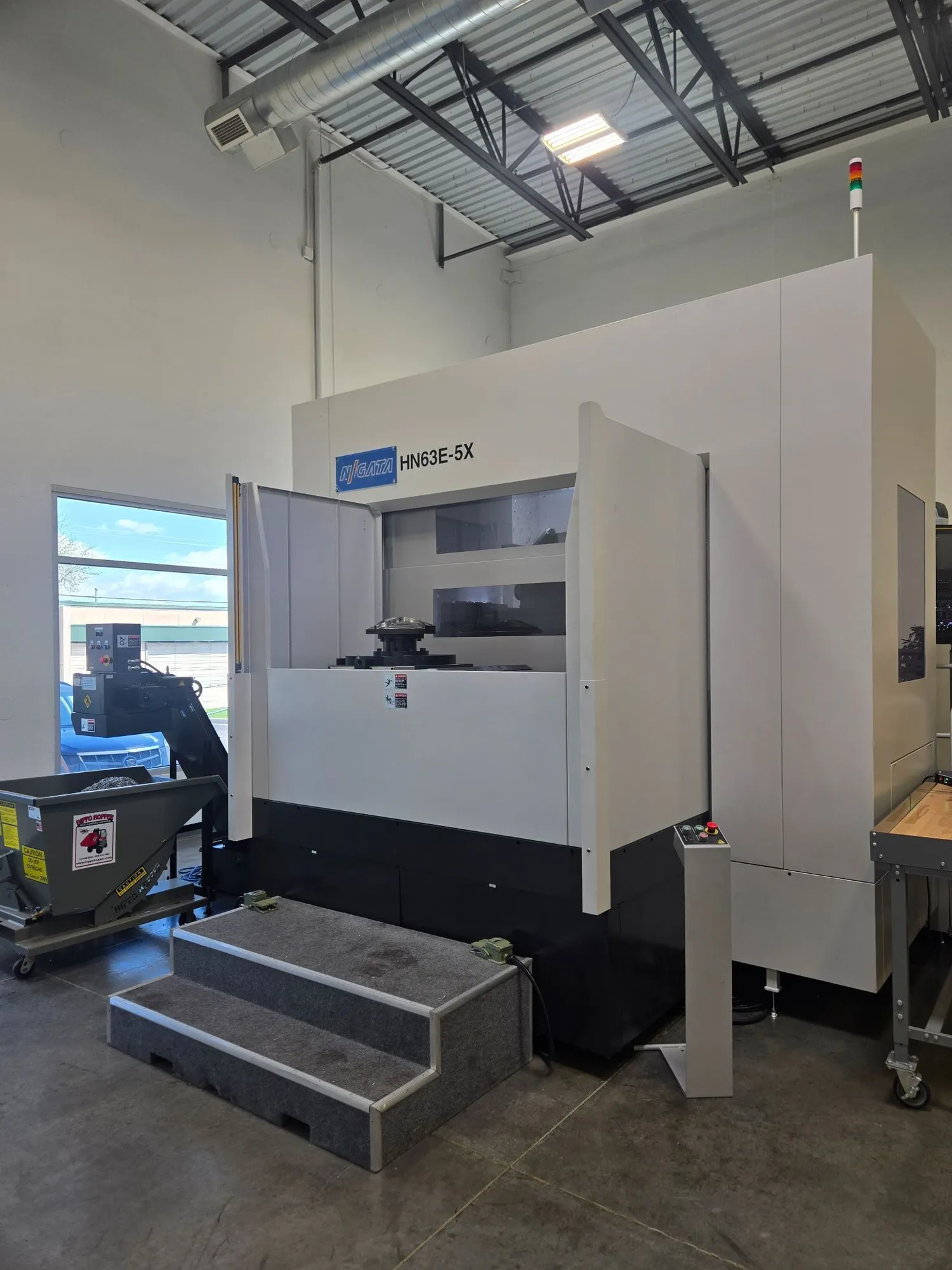

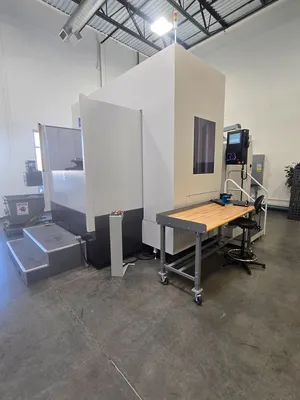

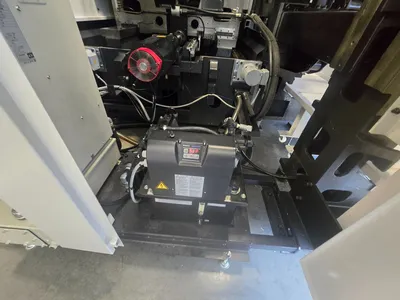

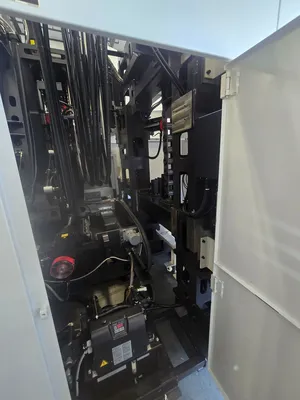

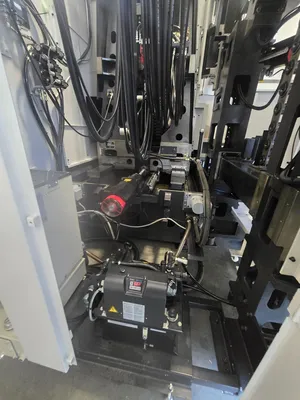

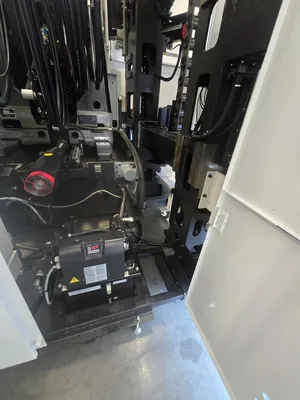

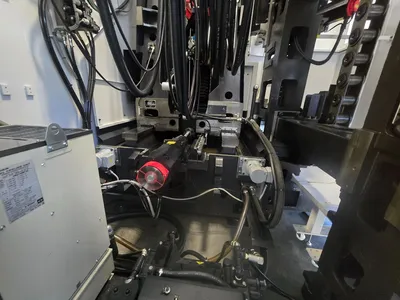

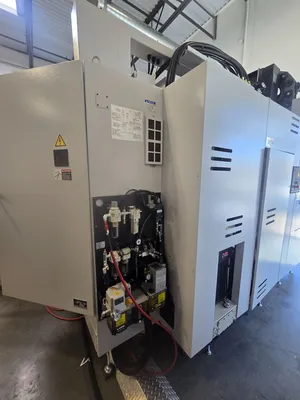

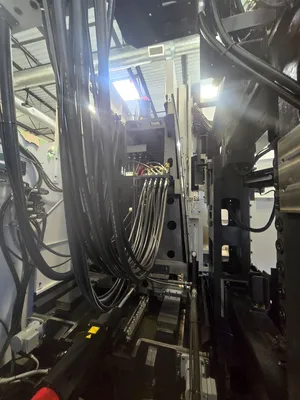

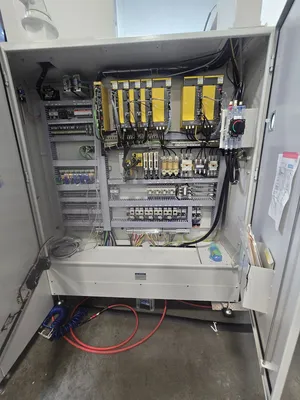

USED 2024 NIIGATA HN63E-5X

Discover precision with the 2024 NIIGATA HN63E-5X, (Demo/Used Machine) a robust 5-axis horizontal machining center. Equipped with a high torque spindle, 360° pallet rotation, and a 62-tool ATC, it's ideal for machining tough materials like titanium. Control via Fanuc 30iB.

SPECIFICATIONS ITEM
HN63E-5X
TRAVEL & WORK CAPACITY
X axis travel (longitudinal table)900 mm 35.4"
Y axis travel (vertical head) 930 mm 36.6"
Z axis travel (column in & out) 830 mm 32.7"
A axis travel (trunnion rotation) 10˚ (10˚ ~ -100˚) 10˚ (10˚ ~ -100˚)

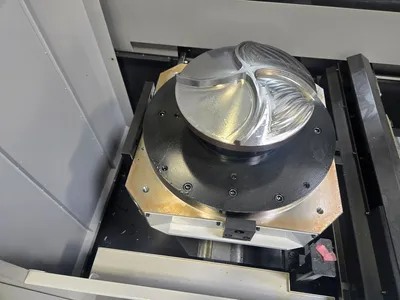

B axis travel (pallet rotation) 360˚ 360˚
Max Work / Swing Diameter 950 mm 37.4"
Max Work / Height 800 mm 31.5"

TABLE
Table working surface 630 x 630 mm 24.8" x 24.8"
Table increments 1° [0.001°] 1° [0.001°]
Maximum mass on pallet 1000 kg 2200 lbs

SPINDLE
Spindle speeds 6000 min-1 6000 rpm
Spindle speeds OP 12000 min-1 12000 rpm
Spindle taper CAT 50 BIG PLUS

FEEDRATE
Rapid traverse X axis 30 m/min 1181 ipm
Rapid traverse Y axis 30 m/min 1181 ipm
Rapid traverse Z axis 30 m/min 1181 ipm
Rapid traverse A axis 6 min 6 rpm
Rapid traverse B axis 15 min 15 rpm

AUTOMATIC TOOL CHANGER
(ATC) Tool magazine capacity Chain 62 [88/128/175/255]
Matrix [126/178/230/308] Chain 62 [88/128/175/255]
Matrix [126/178/230/308]

GENERAL
Machine weight approx. 22200 kg 48942 lbs
Control Fanuc 30iB (31iB) Fanuc 30iB (31iB)
***All specifications subject to change without notice.

HN63E-5X 5-Axis Horizontal Machining Center (5-Axis HMC)
*Rigid machine body
*Machine base of HN63E– a rigid and boxway style machine
*Excellent stability and good dampening properties
*High torque spindle

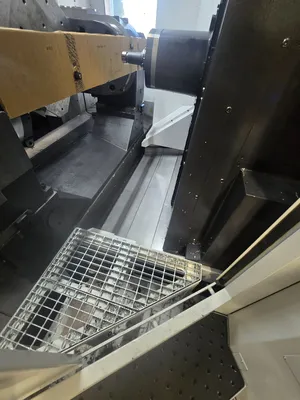

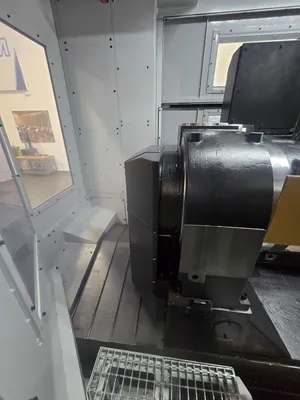

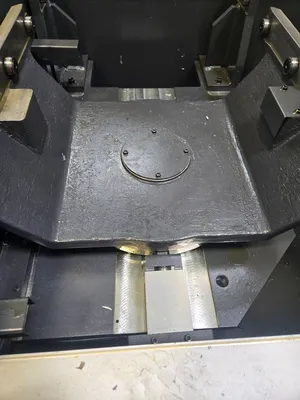

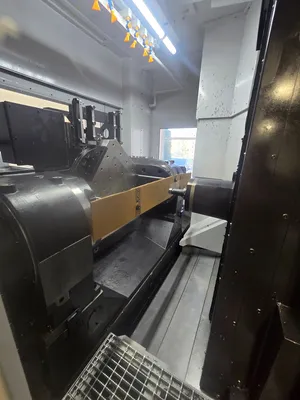

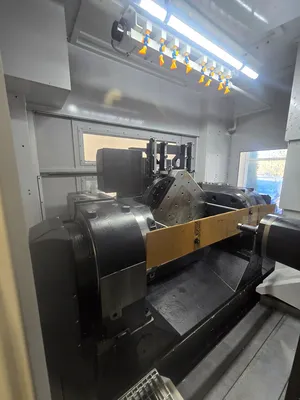

*Rigid trunnion table and low frequency machining
*High load roller BRG and double-lead worm gear
for A and B axes, high torque drive
*Perfect for machining titanium and other hard machining materials.
*Variety of 5-axis machining support software

STANDARD EQUIPMENT
• 6000min-1 (rpm) 37kW Two Geared Spindle (HN80E-5X)
• 6000min-1 (rpm) 26kW Two Geared Spindle (HN50E/63E-5X)
• Scale Feedback System X, Y, Z, A, B axes
• Idle Self Rotation on 2APC System (HN50E/63E-5X)

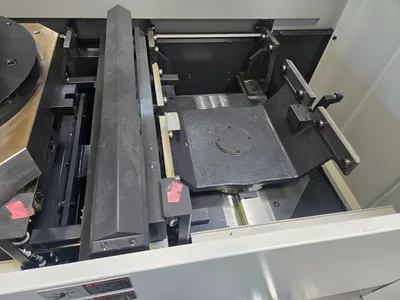

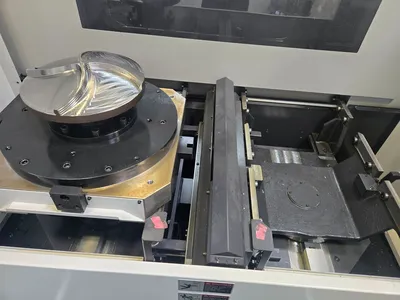

• Shuttle Type Twin Pallets Automatic Pallet Changer (2APC)
(HN50E/63E-5X)
• Pallet Changer with Safety Work-around Platform (2APC)
(HN80E-5X)
• Two Pallets with Threaded holes are Niigata’s Standard Configuration
• Automatic Tool Change with 62 Tools capacity (ATC)

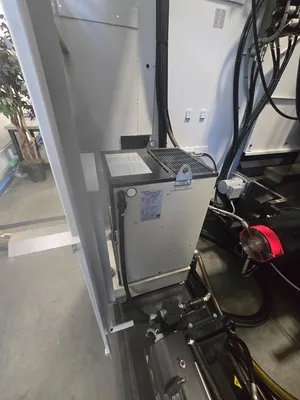

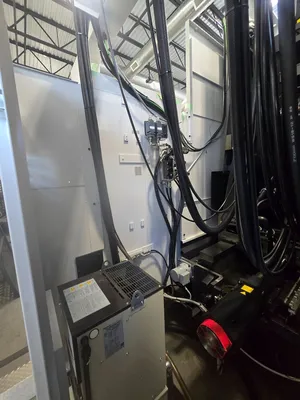

• Spindle Cooling Unit Controlled by Thermal Sensor in the
Machine Base
• Full Enclosure-Type Splash and Chip Guarding with LED Work
Light (SPG)

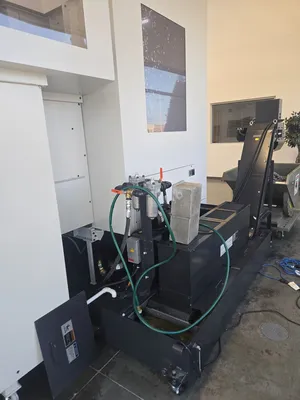

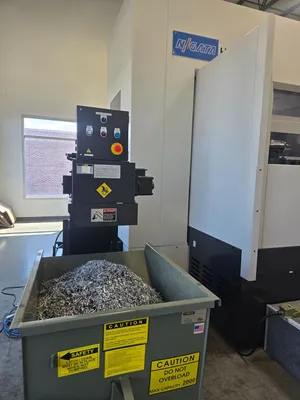

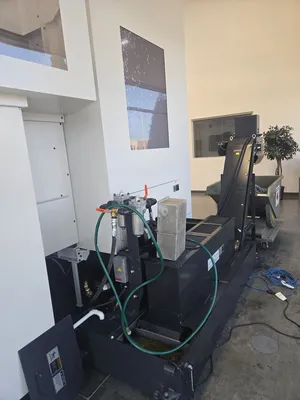

• Front and Rear Spiral Chip Augers Built into the Machine Bed
• Rigid Tapping
• Manual Pulse Generator with X, Y, Z, A, B
• Spindle Speed / Load Meter with Override on NC Control Display
• Flood Coolant System
• Coolant Tank
• Work Completion and Emergency Lamp
• Automatic Power Off Device

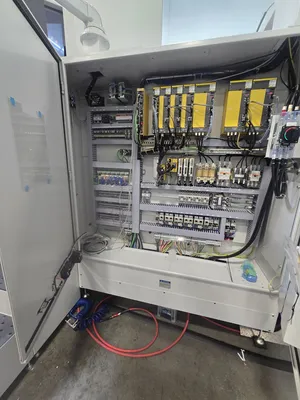

• Door Interlock (at 2APC, SPG, ATC and Electrical Cabinet)
• Self-Diagnostics Function
• 2APC Program Number Search (with 2APC)
• Renishaw A, B-axis compensation function with probing function

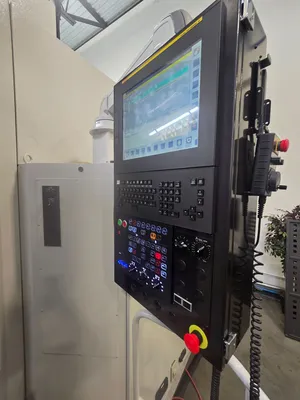

• Fanuc CNC System with 15" Color LCD
