USED 2018 C.R. ONSRUD 145G12
Overview
Description
CR ONSRUD 145G12 CNC ROUTER, 24000 RPM, FANUC Vertical Machining Centers (2018)
Specifications
| X | 145" | 3,683 mm |
|---|---|---|
| Y | 61" | 1,549.4 mm |
| Z | 11" | 279.4 mm |
| Power | 12 hp | 8.9 kW |
| RPM | 24,000 RPM | 24,000 RPM |
| # ATC | 12 | 12 |
| Taper | HSK 63F | HSK 63F |
General Info
Stock #: 113260012
Brand: CR ONSRUD
Model: 145G12
Year: 2018
Specifications
Table Length: 144"
Table Width: 60"
X-Axis Travel: 145"
Y-Axis Travel: 61"
Z-Axis Travel: 11"
Spindle Speed: 24000 RPM
Spindle Motor: 12 hp
Spindle Taper: HSK 63F
Tool Capacity (ATC): 12
Rapid Traverse - X Axis: 2000 in/min
Rapid Traverse - Y Axis: 2000 in/min
Control: Fanuc 0i Handheld Machine Controller System
Feature: Full 3-D Capability
Feature: Vacuum Table
Feature: Quick Change Cartridge Style Spindle with Airblast
Feature: Automatic Oil Mist Lubricator
Feature: Air Conditioned Electronics Cabinets
Feature: Pneumatic Controlled Vacuum Table Switch
Feature: Integrated Dust Transition System
Feature: Aluminum T-Slot Table
Feature: Ethernet Control Retrofit for Panel Pro Series
Feature: Programmable Feed Rates with Override Capability
Equipped With

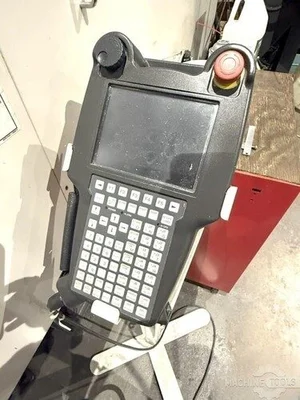

Fanuc i-Pendant HMI with Touch Screen, RMI-Q RF Receiver, 12 Tool Dynamic Automatic Rotary Tool Changer, 15KVA Isolation Transformer, Standard Centralized Manual Greased Lubrication, New HSD 12HP HSK-63F Fully Programmable Variable Speed Spindle
Additional Info
2200 Cutting Hours, Original Owner, Machine Cutting Primarily Aluminum, In Plant, Under Power, Ready for Immediate Inspection and Purchase
