Used Precision Stainless 2,500 Liter 316L Agitated Reactor | Jacketed Pharmaceutical Pressure Vessel

Used Equipment Facts About This Machine
Manufacturer: Precision Stainless
Equipment Type: Jacketed Agitated Reactor Vessel
Capacity: 2,500 Liters (660 Gallons)
Material: 316L Stainless Steel
Condition: Used
Previous Use: Pharmaceutical Processing

Description

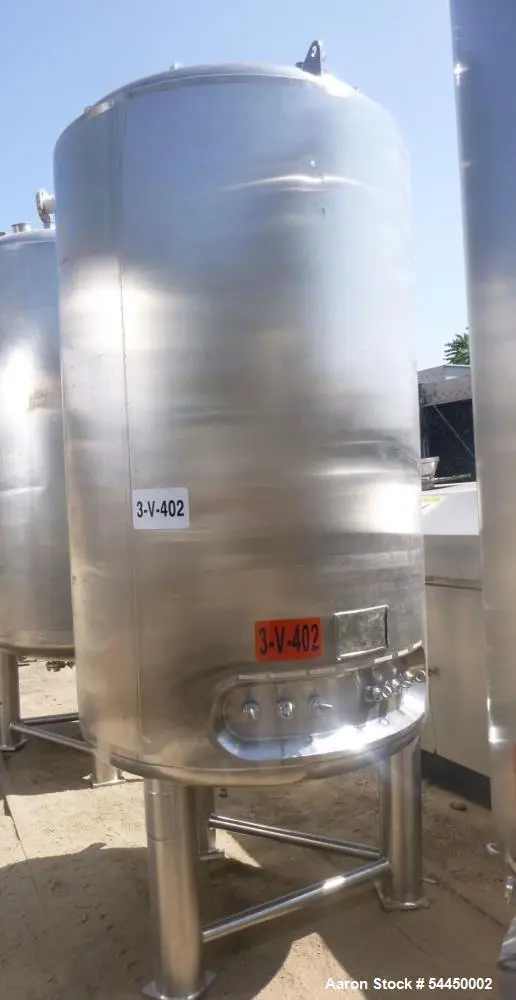

Used Precision Stainless 2,500 liter (660 gallon) 316L stainless steel agitated reactor designed for high-purity pharmaceutical and chemical processing applications. This vertical vessel features dished top and bottom heads and is engineered for both pressure and vacuum service across a wide operating temperature range.
The reactor includes a dimpled jacket rated for 100 PSI, enabling efficient heating and cooling control. Internally rated for 50 PSI and full vacuum, this vessel is built for demanding process conditions. The agitation system features a 1" diameter x 7' long shaft with (3) 16" diameter disc blades with 3" paddles, providing effective mixing and product uniformity.

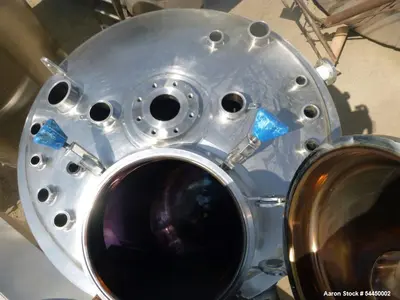

Equipped with an 18" manway and multiple top nozzles, along with a 2" center bottom outlet, this pharmaceutical-grade reactor is ideal for controlled mixing, reaction, and formulation processes.

Specifications

Manufacturer: Precision Stainless
Capacity: 2,500 liters (660 gallons)
Type: Jacketed agitated reactor vessel
Orientation: Vertical
Diameter: 48"
Height: 6' 7"
Material: 316L stainless steel
Top: Dished head
Bottom: Dished head
Internal Rating: 50 PSI / Full Vacuum
Temperature Range: -20°F to 300°F
Jacket Type: Dimpled jacket
Jacket Rating: 100 PSI
Agitation System:

Shaft: 1" diameter x 7' long
Blades: (3) 16" diameter disc blades
Paddle Width: 3"

Bottom Outlet: 2" center outlet
Top Features:

18" manway
4" agitator port
Additional ports: 1-1/2" to 6"

Previous Service: Pharmaceutical operation

Applications
Designed for high-purity, temperature-controlled mixing and reaction processes in pharmaceutical, biotech, and specialty chemical manufacturing.

Products This Equipment Would Be Used For

Pharmaceutical formulations
Active pharmaceutical ingredients (API)
Biotech solutions
Liquid suspensions
Emulsions
Sterile processing fluids
Nutraceutical liquids
Specialty chemicals
Cosmetic formulations
Fine chemical reactions
