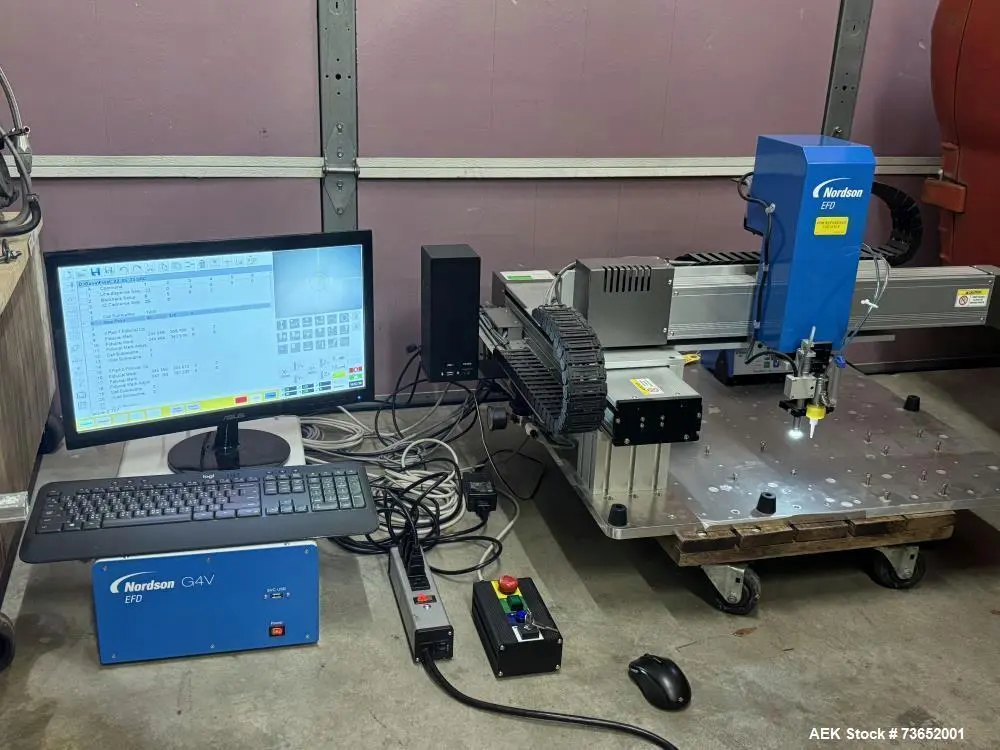

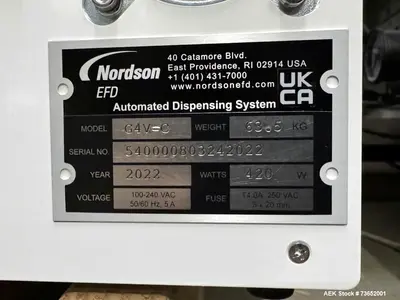

USED NORDSON G4V

Manufacturer: Nordson EFD
Model: G4V
Equipment Type: Automatic Dispensing System / 3-Axis Robot
Condition: Used
Year Built: 2022

Description
Used Nordson EFD Model G4V automatic dispensing system designed for high-precision fluid dispensing in automated production environments. This 3-axis robotic system delivers exceptional accuracy and repeatability, making it ideal for applications requiring precise placement of adhesives, sealants, lubricants, and other fluids.
Equipped with a 5-phase micro-stepping motor, the system provides smooth motion control and high-speed operation up to 520 mm/s. With a working area of 400 mm x 400 mm x 100 mm and repeatability within 0.02 mm, the G4V ensures consistent results in demanding manufacturing processes. Built in 2022, this unit is well-suited for electronics, medical device, automotive, and industrial assembly applications.

Specifications

Manufacturer: Nordson EFD
Model: G4V
Type: Automatic dispensing system / 3-axis robot
Axes: 3-axis movement
Working Area: 400 mm x 400 mm x 100 mm
Maximum Speed: 520 mm/s (X/Y), 320 mm/s (Z)
Repeatability: ±0.02 mm
Tool Payload: 3 kg (6.6 lbs)
Drive System: 5-phase micro-stepping motor
Operating Temperature: 10°C to 40°C (50°F to 104°F)
Year Built: 2022

Applications
Ideal for automated, high-precision dispensing in manufacturing processes requiring consistent and repeatable fluid placement.

Products This Equipment Would Be Used For

Adhesive dispensing
Epoxy application
Sealant dispensing
Solder paste dispensing
UV glue application
Lubricant application
Potting compounds
Silicone dispensing
Conformal coating
Medical-grade fluid dispensing
