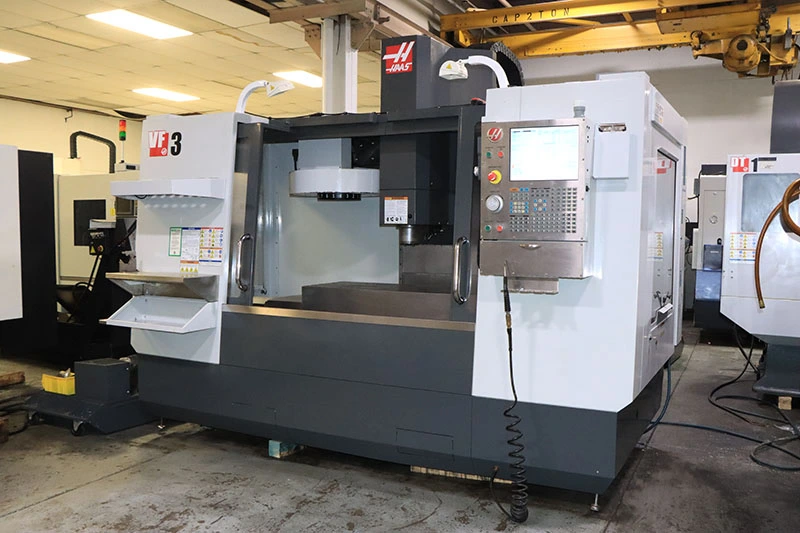

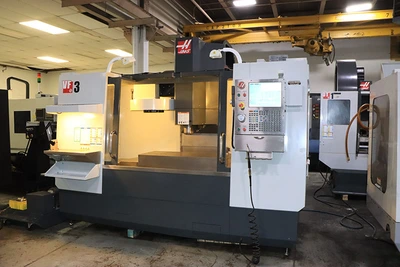

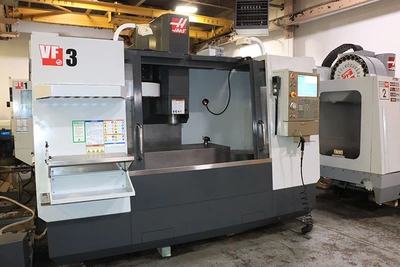

USED 2011 Haas VF-3

40" X Axis 20" Y Axis Haas VF-3 VERTICAL MACHINING CENTER, Haas Control, 20 ATC, CT40, WIPS, Auger,

HAAS VERTICAL MACHINING CENTER

MODEL: VF-3,  S/N: 1082214,  NEW: 12/2010

MACHINE INSTALLED 2011

SPECIFICATIONS:

X-AXIS TRAVEL.......................... 40" - 1016mm

Y-AXIS TRAVEL.......................... 20" - 508mm

Z-AXIS TRAVEL.......................... 25" - 635mm

SPINDLE NOSE TO TABLE.................. 4" TO 29"

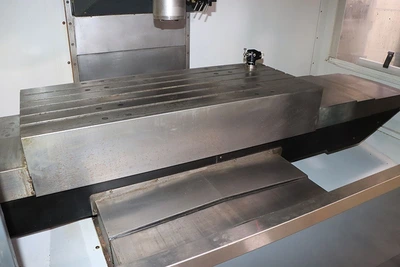

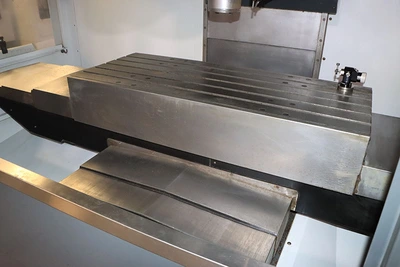

TABLE SIZE............................. 18" X 48"

MAXIMUM WEIGHT ON TABLE................ 3,500 LBS

SPINDLE SPEED MAX ..................... 10,000 RPM

SPINDLE MOTOR.......................... 30 HP

SPINDLE TAPER.......................... CAT 40

TOOL CHANGER .......................... 20 + 1 POSITIONS

RAPID TRAVERSE RATE.................... 1000 IPM

MAX CUTTING FEEDRATE................... 650 IPM

APPROX MACHINE WEIGHT.................. 12,500 LBS

EQUIPPED WITH

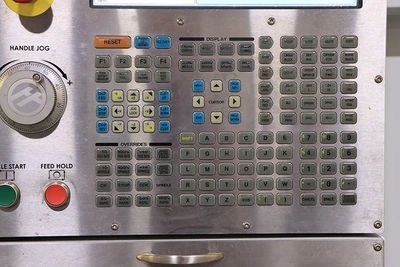

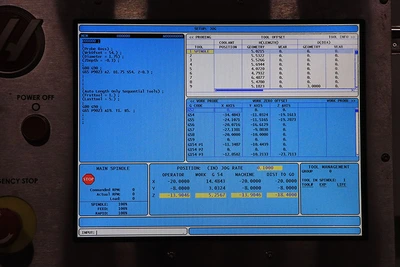

- HAAS CNC CONTROL:

  RIGID TAPPING, ROTATION & SCALING, QUICK CODE,

  M19 SPINDLE ORIENTATION, ADVANCED TOOL MANAGEMENT

  MACROS, USB PORT, ENABLE DNC

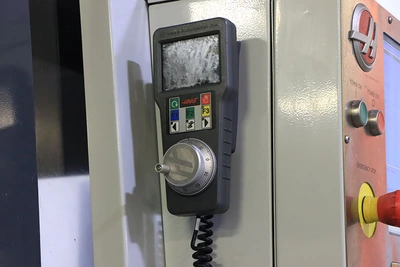

- REMOTE JOG HANDLE (RJH)

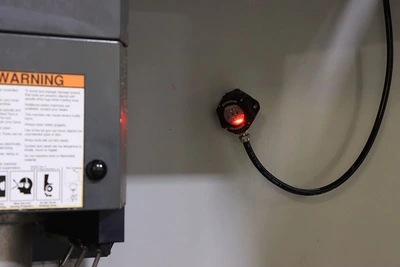

- WIRELESS INTUITIVE PROBING SYSTEM (WIPS)

- RENISHAW PART & TOOL PROBES

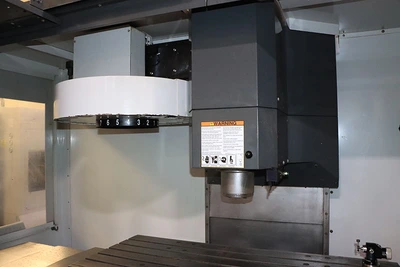

- 20 POCKET CAROUSEL TOOL CHANGER

- HIGH INTENSITY LIGHTING

- CHIP AUGER

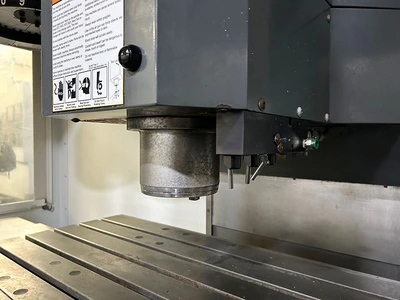

- 30 HORSE POWER SPINDLE DRIVE

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

FOR MORE INFORMATION: Call David at 973-497-7570
