25" Swing 80" Centers Sharp 2580 ENGINE LATHE, Inch/Metric, Gap, 3&4 Jaw, Steady, Toolpost, 3" Ho

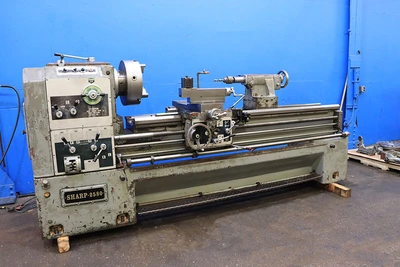

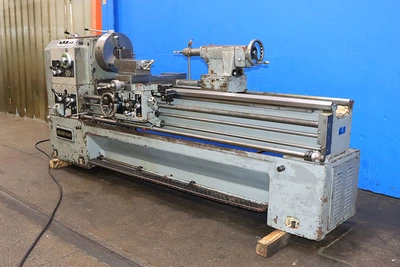

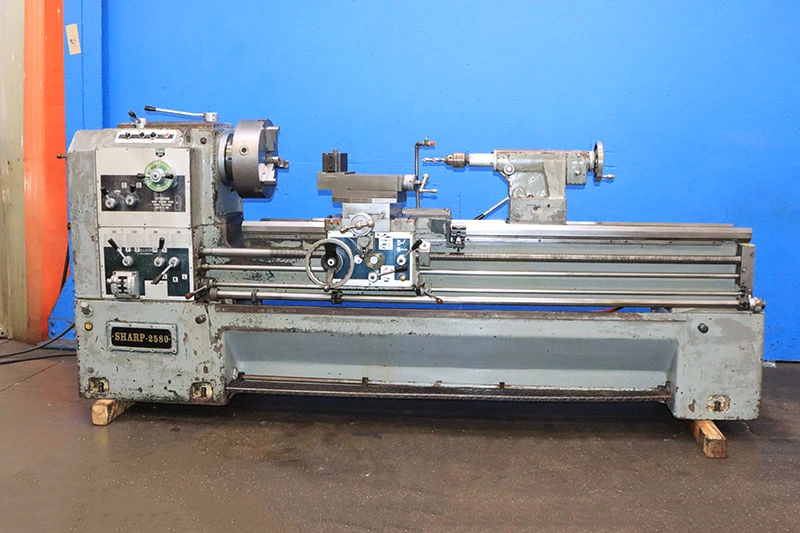

25"/34" x 80" SHARP GAP BED ENGINE LATHE
MODEL: 2580, S/N: 200038, NEW:1978
SPECIFICATIONS:
SWING OVER BEDWAYS ................... 25"
SWING IN REMOVEABLE GAP .............. 34"
SWING OVER CROSS SLIDE ............... 17"
HOLE THRU SPINDLE .................... 3-1/16"
DISTANCE BETWEEN CENTERS ............. 80"
SPINDLE NOSE ......................... D1-8" CAMLOCK

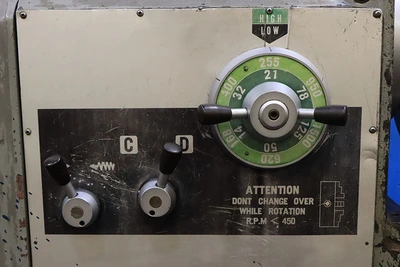

SPINDLE SPEED RANGE (12) ............. 14 - 1500 RPM
ENGLISH THREADING RANGE .............. .25 - 56 TPI
METRIC THREADING RANGE ............... .5 - 112 mm
FEED RANGE ........................... .0012" - .0330" IPR
TAILSTOCK SPINDLE TAPER .............. #4MT
TAILSTOCK SPINDLE TRAVEL ............. 7"
APPROX FLOOR SPACE ................... 134"L x 45"W x 60"H
APPROX WEIGHT ........................ 6,500 LBS
EQUIPPED WITH:

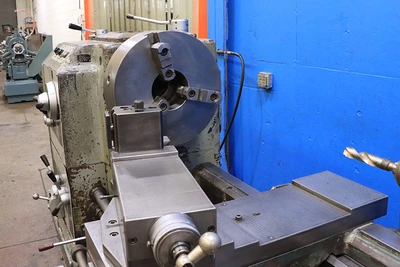

15-1/2" 3-JAW CHUCK
15-1/2" 4-JAW CHUCK
FACEPLATE
ROLLER TYPE STEADY REST

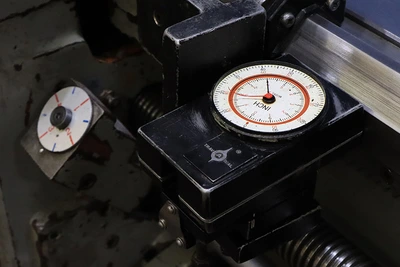

TRAV-A-DIAL FOR LONGITUDINAL CARRIAGE TRAVEL
THREAD DIAL INDICATOR
QUICK CHANGE TOOLPOST w/HOLDERS

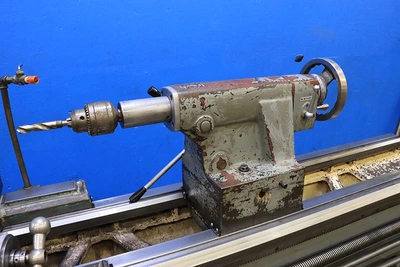

DRILL CHUCK FOR TAILSTOCK
TWO SPEED TAILSTOCK

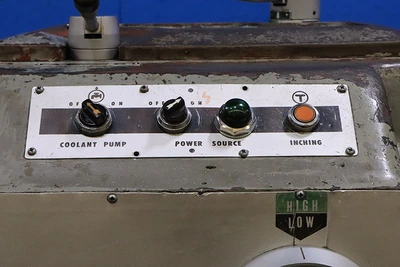

COOLANT SYSTEM
HARDENED AND GROND BED WAYS
FOOT BRAKE
15 HORSE POWER
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
FOR MORE INFORMATION: Call David at 973-497-7570
