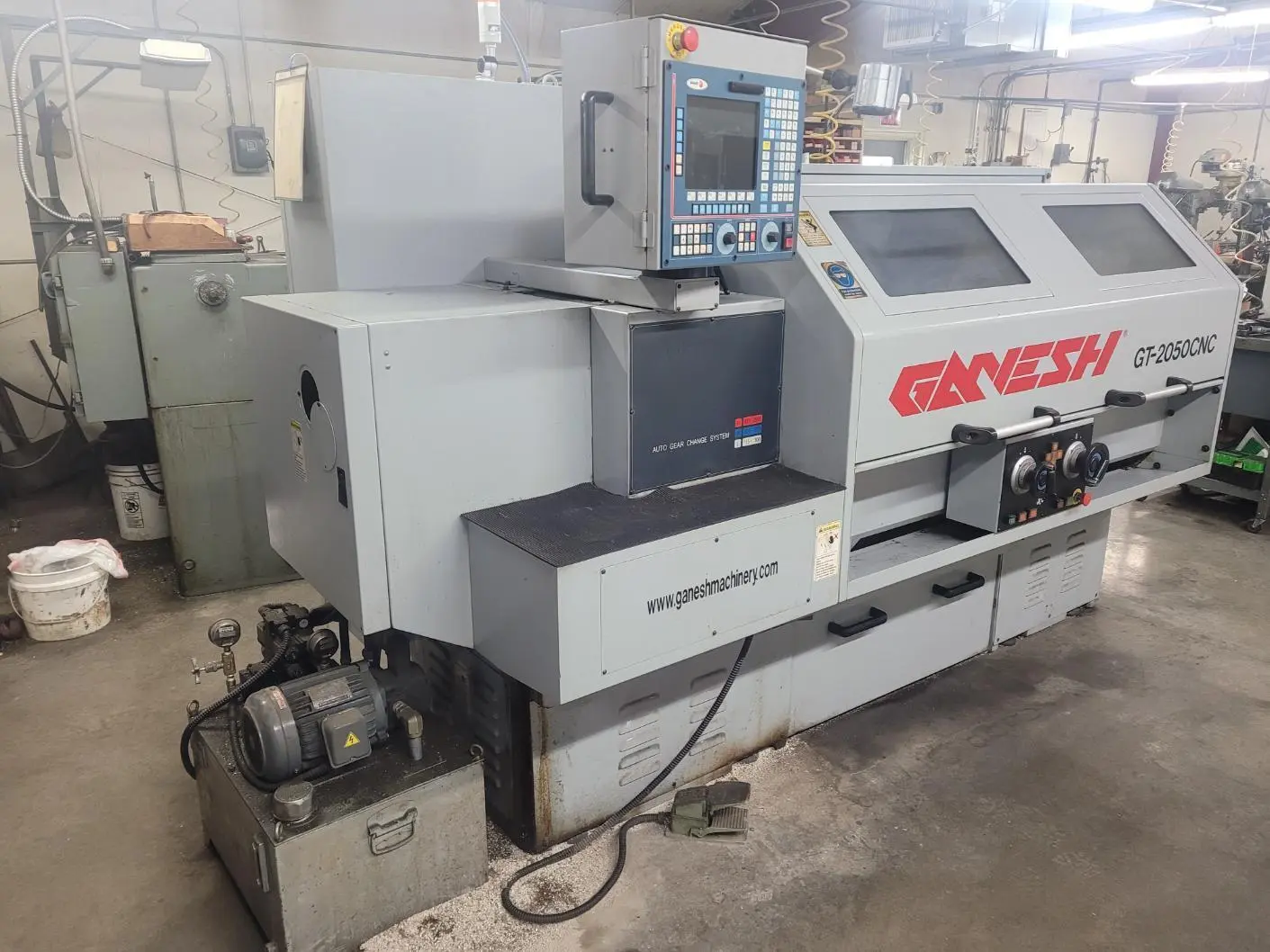

USED 2006 KING RICH KR-L480

Ganesh CNC Teach Lathe
OEM: King Rich Industries Co. Ltd. (Taiwan)
Model: KR-L480 (Ganesh GT-2050 CNC)
DOM: March 2006
Electrics: 220 Volt, 3 Phase, 60 Cycle
Spindle Motor: 10HP

Features & Specifications:
…CNC Controls: Fagor 8040-T
…Spindle Specifications:
……Bore: 3.15”
……Nose: D1-8
…Spindle Speeds:
……Low: 15 – 300 RPM
……Medium: 50 – 850 RPM
……High: 140 – 2500 RPM
…8-Station Turret
…Max Turning Diameter: 18.9”
…Max Turning Length: 27.55” – 42.5”
…Swings:
…….Over Bed: 18.9”
…….Over X-Slide: 8.9”
……Over Gap: 27.5”
….Cross-Slide Travel: 8.1”
…Tailstock Specs:
……Quill Diameter: 3”
……Travel: 6.3”
……Taper: MT#5
…Centers: 49.2”
…X,Y-Axis Electronic Handwheels
…10” 3-Jaw Chuck
…Miscellaneous Tooling (see pics)
...Manuals

Machine Dimensions (approx.): 126” x 54” x 76”
Machine Weight (approx.): 6,350 lbs.

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes & History:

1st-Owner machine. He has purchased a new machine and needs the space to install. He is not familiar with the Fagor controls; this machine comes with the entire set of manuals for the control system. The machinist that ran the machine for him no longer works there. The Fagor controls were completely rebuilt in 2023.

He has not ran the machine since that time. I saw the controls turned on and functioning. The machine was a good runner for him when it was part of his production. It comes with some tooling as shown in the pictures and a 10” 3-Jaw chuck. It is presently under power and available for test and inspection for somebody who is familiar with the controls and can run the machine.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Seattle, WA Metro Area (Puget Sound)

Equipment is under power; available for inspection.
Buyer responsible for loading expenses.
Buyer responsible for freight logistics and expenses.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
