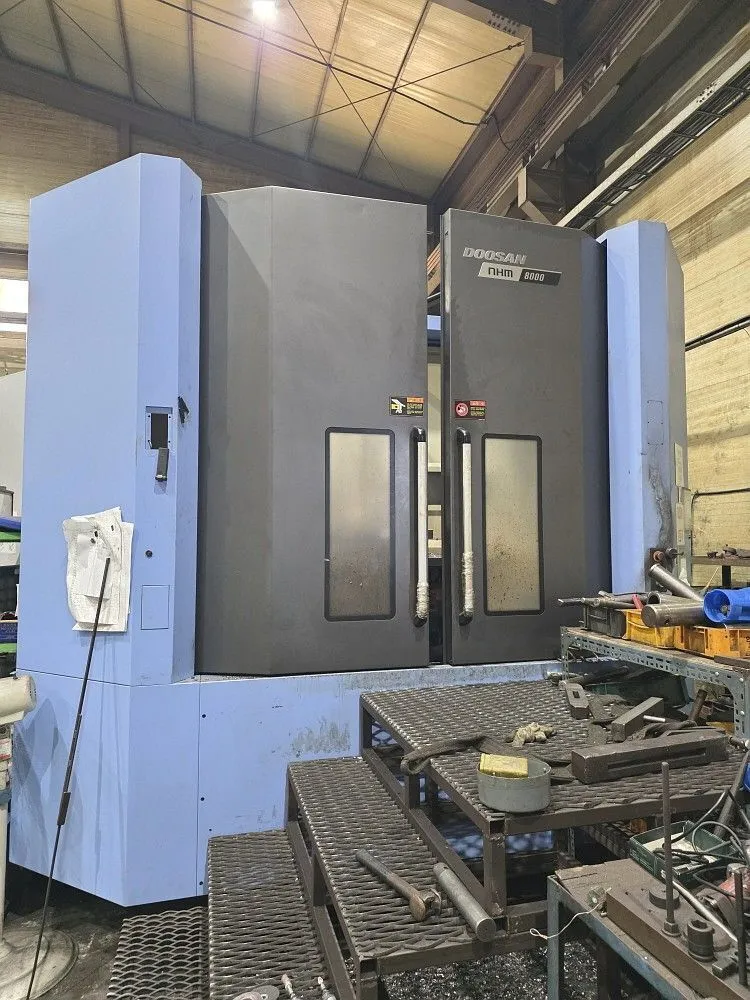

2021 DOOSAN NHM 8000 HMC. This horizontal machining center features a BT-50 taper, 60-tool ATC, and 6000 RPM spindle. Offers X: 1400mm, Y: 1050mm, Z: 1200mm travel and 800x800mm pallets.
| X | 55.12" | 1,400 mm |
| Y | 41.34" | 1,050 mm |
| Z | 47.24" | 1,199.9 mm |
| Power | 46 hp | 34.3 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 60 | 60 |
| Taper | BT-50 | BT-50 |
| Pallet-W | 31.5" | 800.1 mm |
| Pallet-L | 31.5" | 800.1 mm |
| # Axis | 3 | 3 |
| Control | CNC (FANUC 31I-B) | CNC (FANUC 31I-B) |
| Weight | 57,000 | 57,000 |
Specifications:
Pallet Size - L 31.5"
Pallet Size - W 31.5"
Number of Pallets: 2
Pallet Weight Capacity: 4,409 lb
Pallet Surface to Spindle Center: 2.8" ~ 44.3"
Pallet Center To Spindle Gage Line: 5.9" ~ 53.1"
Workpiece Dimensions: 57.1" x 61"
AxisTravel
X: 55.1"
Y: 41.3"
Z: 47.2"
B - Axis Travel; 1 DEGREE
Rapid Traverse Rate - X: 945 in/min.
Rapid Traverse Rate - Y: 945 ipm
Rapid Traverse Rate - Z: 945 ipm
Cutting Feed Rate: 472 in/sec.
Spindle Speed: 6,000 RPM
Spindle Taper: 50
Number of Ranges: 2
Main Motor: 46.9 hp
Automatic Tool Changer: 60
Tool Diameter: 5.1", 12.6"
Tool Length: 24.8"
Tool Weight: 66 lb
Control CNC (FANUC 31I - B CNC COLOR CONTROL)
Weight: 57000.00Lbs
FANUC 31IB CNC COLOR CONTROL
AICC II 200 BLOCKS
640 METERS MEMORY
RENISHAW TS27R TOOL SETTER
PORTABLE MPG
EMBEDDED ETHERNET FUNCTION
CHIP CONVEYOR
BIG PLUS SPINDLE
AIR BLOWER
SPINDLE AIR CURTAIN
AUTO POWER OFF
OIL SKIMMER
200 PAIRS OF TOOL OFFSETS
HAND HELD MPG
EMBEDDED ETHERNET OPTION
WORK COORDINATE 48 PAIRS
COOLANT THRU SPINDLE
