NEW TRAK MACHINE TOOLS 2OP
Overview

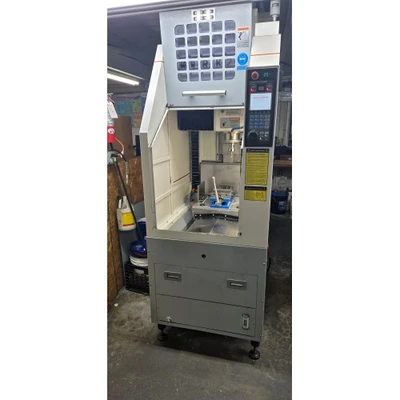

TRAK MACHINE TOOLS MODEL 2OPW VERTICAL MACHINING CENTER NEW 2014 SOUTHWESTERN INDUSTRIES
AML Stock #003029
SOUTHWESTERN INDUSTRIES VERTICAL MACHINING CENTER MODEL: TRAK 2OP-M10-MILL, S/N: 142DQ636, NEW: 2014
Specs
TABLES SIZE ...................... 18" X 15"
TABLE LOAD CAPACITY .............. 500 LBS
TRAVELS:
TABLE (X-AXIS) .................. 14"
SADDLE (Y-AXIS) .................. 12"
HEAD (Z-AXIS) ................... 17"
MAX SPINDLE NOSE TO TABLE ........ 20.25"
MIN SPINDLE NOSE TO TABLE ........ 2.75"
SPINDLE CENTER TO COLUMN FACE .... 14"
QUILL DIAMETER ................... 2.2"
SPINDLE TAPER .................... #30BT
SPINDLE SPEED RANGE .............. 250 - 5,000 RPM
SPINDLE MOTOR .................... 3 HP
MAX RAPID SPEEDS ................. 500 IPM
APPROXIMATE DIMENSIONS ........... 30.5"W x 52"D x 101"H
APPROXIMATE MACHINE WEIGHT ....... 2,400 LBS.
Equipped With
PROTO-TRAK MODEL: TMX CONTROL,
CONVERSATIONAL OR G-CODE PROGRAMMING,
5" LCD SCREEN,
RIGID TAPPING, LINEAR & CIRCULAR INTERPOLATION,
THREE AXIS, CANNED CYCLES,
& MUCH MUCH MORE!
TWO USB PORTS
BALL SCREWS & SERVO MOTORS FOR X,Y & Z AXES
8 STATION AUTOMATIC TOOLCHANGER
BUILT IN JERGENS BALL LOCKS ON TABLE
AUTOMATIC LUBRICATION SYSTEM
COOLANT SYSTEM
3 HORSE POWER SPINDLE MOTOR
CALL MARC @ (732) 390-0006 TO INSPECT UNDER POWER IN NJ
