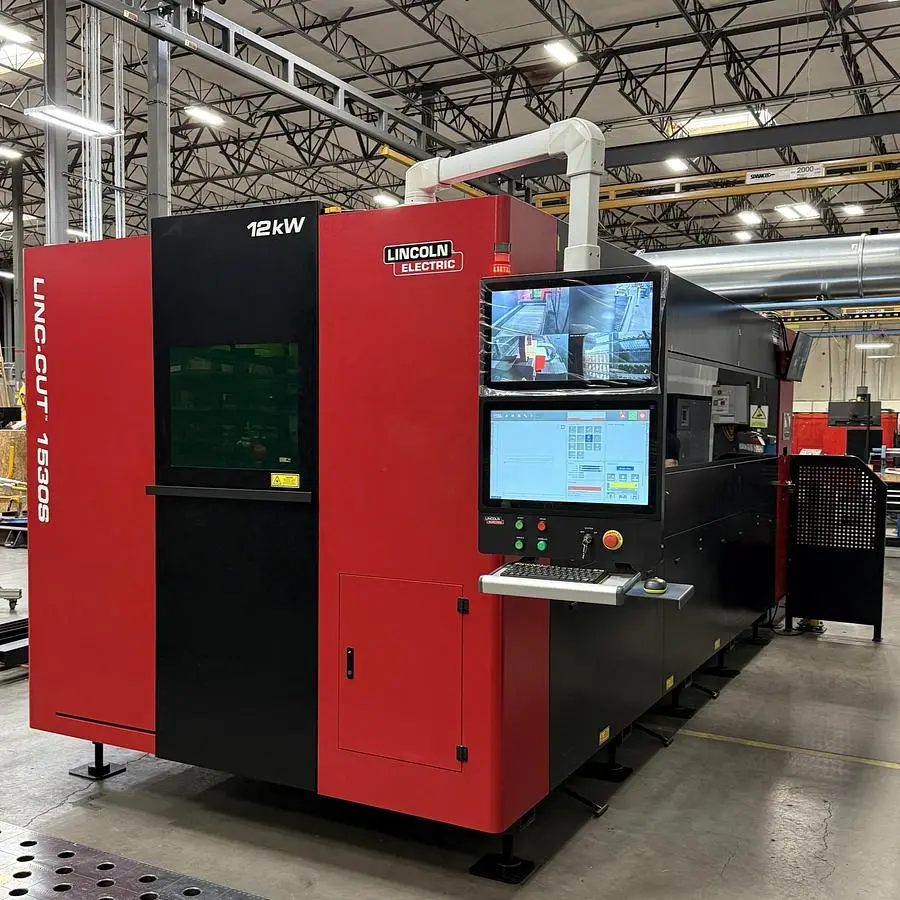

NEW 2026 LINCOLN ELECTRIC LINC-CUT 1530S 6KW FIBER LASER CNC CUTTING SYSTEM

Brand-New 2026 Lincoln 6kW & 12kW Fiber Laser(s)
Call Evan for Pricing: 817-222-9848 or submit an request for quote.

Machine Features:

Work Area: 5' x 10' travels

Cutting Capacity: Up to 1.5" steel plate
Included in the Package:
Machine delivery
Setup (customer-supplied electrical and gas hookups required)
2 days of expert training
1-year warranty

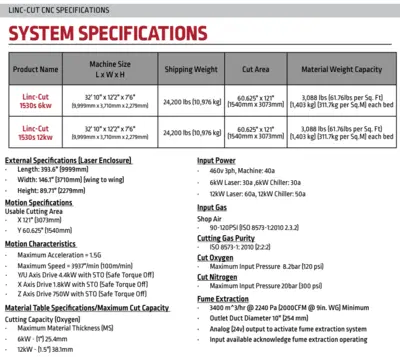

External Specifications (Laser Enclosure)
• Length: 393.6" (9999mm)
• Width: 146.1" (3710mm) (wing to wing)
• Height: 89.71" (2279mm)
Motion Specifications
Usable Cutting Area
• X 121" (3073mm)
• Y 60.625" (1540mm)
Motion Characteristics
• Maximum Acceleration = 1.5G
• Maximum Speed = 3937"/min (100m/min)
• Y/U Axis Drive 4.4kW with STO (Safe Torque Off)
• X Axis Drive 1.8kW with STO (Safe Torque Off)
• Z Axis Drive 750W with STO (Safe Torque Off)

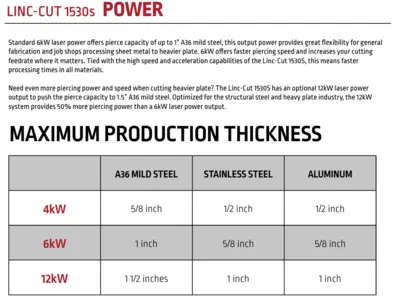

Material Table Specifications/Maximum Cut Capacity
• Cutting Capacity (Oxygen)
• Maximum Material Thickness (MS)
• 6kW - (1") 25.4mm
• 12kW - (1.5") 38.1mm

Input Power
460v 3ph,Machine: 40a
6kW Laser: 30a ,6kW Chiller: 30a
12kW Laser: 60a, 12kW Chiller: 50a
Input Gas
Shop Air
90-120PSI (ISO 8573-1:2010 2.3.2)
Cutting Gas Purity
ISO8573-1: 2010 (2:2:2)
Cut Oxygen
Maximum Input Pressure 8.2bar (120 psi)
Cut Nitrogen
Maximum Input Pressure 20bar (300 psi)
Fume Extraction
3400m^3/hr @2240 Pa (2000CFM @ 9in. WG) Minimum
Outlet Duct Diameter 10" (254 mm)
Analog (24v) output to activate fume extraction system Input available acknowledge fume extraction operating
