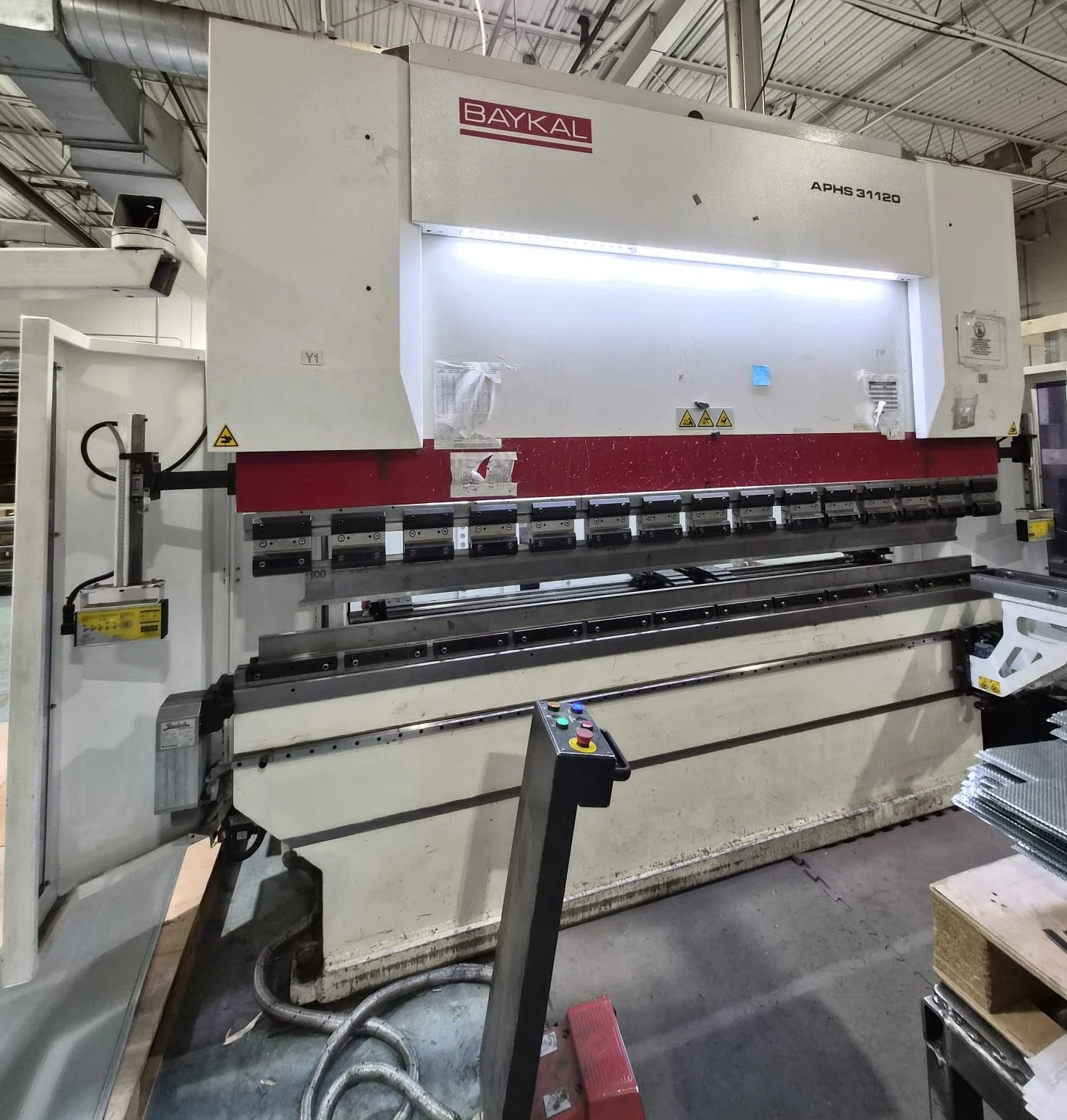

2018 Baykal APHS31120 Press Brake. Unit is in very good condition and can be inspected under power as needed.
| Tonnage | 120 T | 108.862 t |
| Type | 'HYD' | 'HYD' |
| Overall Length | 1,202" | 30.5 m |
| Between Housings | 100" | 2.5 m |
| Stroke | 10" | 254 mm |
| # Axis | 4 | 4 |
| Control | CNC (DELEM DA-66T) | CNC (DELEM DA-66T) |
| Dimensions | 158" X 71" X 110" | 158" X 71" X 110" |
| Weight | 19,000 Lbs | 19,000 Lbs |
DESIGN AND OPERATING FEATURES
Rigid, welded, monoblock steel frame for minimum deflection
under load up to 330 tons (Models above 330 tons are bolted).
Downstroking bending beam with two cylinders made from highquality
certified forged steel, precisely honed and chrome plated.
Ram travel fully supported in low friction fiber slideways.
Full electronic synchronization with proportional valve technology
assuring maximum bend accuracy and repeatability through
constant monitoring and correction of beam parallelism by a
CNC system +/- .0004 parallelism and repeatabiIity.
Stroke-depth measurement through high-precision linear scales
which are bed referenced for the best bending repeatability
CNC-controlled backgauge on ballscrew spindles with AC servo
motor for precise accuracy and speed.
Block-type European hydraulics.
Large electrical cabinet for maximum ventilation.
Full conformity with EU/CE Machinery Directive for safety
certification.
ST 44-2 Certified steel used for components.
CSA certified & PHSR compliance ready.
Block laser safety guarding.
