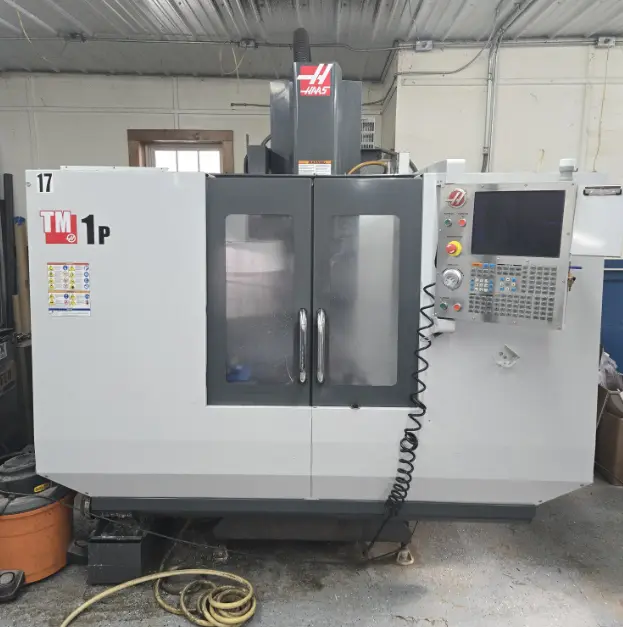

Haas TM-1P Vertical Machining Center, New in 2014
| X-Axis | 30" | 762 mm |
| Y-Axis | 12" | 304.8 mm |
| Z-Axis | 16" | 406.4 mm |
| Power | 7.5 hp | 5.6 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 10 | 10 |
| Taper | CT or BT 40 | CT or BT 40 |
| Table-W | 10.5" | 266.7 mm |
| Table-L | 47.75" | 1,212.8 mm |
| Control | CNC (Haas) | CNC (Haas) |
| Dimensions | 112" x 80" x 100" | 112" x 80" x 100" |
| Weight | 4,440 lbs | 4,440 lbs |
General Specifications:
Table Size: 47.75" x 10.5"
Weight on Table: 350 lbs
X-Axis Travel: 30"
Y-Axis Travel: 12"
Z-Axis Travel: 16"
Spindle Speed: 6,000 RPM
Spindle Taper: CT or BT 40
Spindle Power: 7.5 HP
Torque: 33.0 ft-lbf @ 1200 rpm
Cutting Feedrate: 400 IPM
Rapids (All Axes): 400 IPM
Tool Positions: 10
Tool Diameter: 3.5"
Tool Weight: 12 lbs
Under 4,000 Cutting Hours
Haas CNC Control
Coolant Tank
