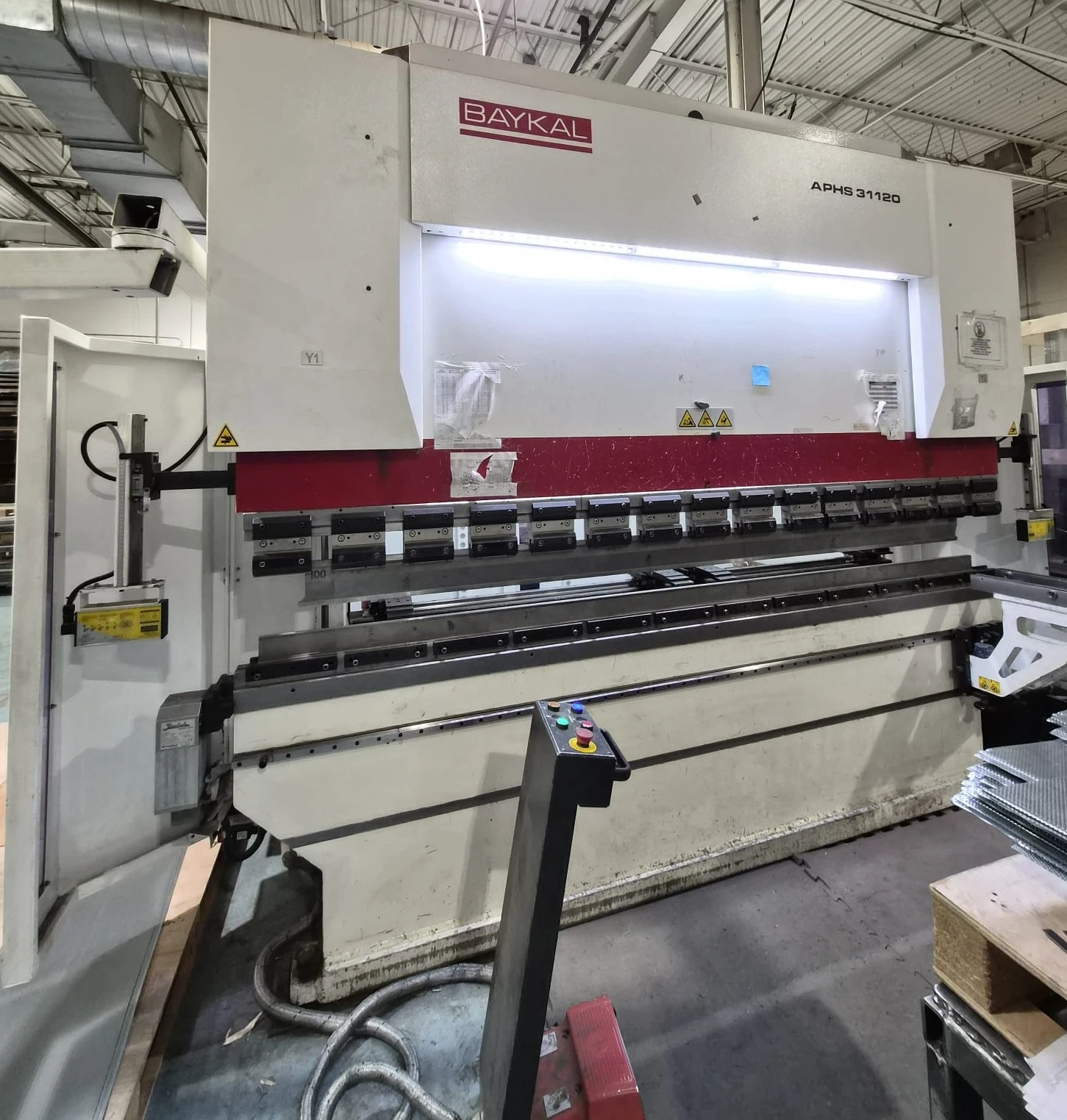

USED 2018 BAYKAL APHS 31120
Overview
Description
The Baykal APHS 31120 is a CNC hydraulic press brake designed for machining flat metal materials up to 3100 mm in length. It features a maximum bending capacity of 120 tons and operates with a precision of 0.01 mm. The press brake is equipped with a high-quality design made of ST44-2 steel, ensuring minimal deflection under full load. Safety features include emergency stop buttons and a laser safety system that automatically stops the machine if the laser beam is interrupted.
Specifications
| Tonnage | 220 t | 242.508 T |
|---|---|---|
| Type | '' 'HYD' 'MECH' 'PNE' 'ELE' 'HYB' | '' 'HYD' 'MECH' 'PNE' 'ELE' 'HYB' |
| Overall Length | 122" | 3.1 m |
| Stroke | 10" | 254 mm |
| # Axis | 0 | 0 |
| Control | CNC (Delem DR 66T) | CNC (Delem DR 66T) |
DESIGN AND OPERATING FEATURES
Rigid, welded, monoblock steel frame for minimum deflection
under load up to 330 tons (Models above 330 tons are bolted).
Downstroking bending beam with two cylinders made from highquality
certified forged steel, precisely honed and chrome plated.
Ram travel fully supported in low friction fiber slideways.
Full electronic synchronization with proportional valve technology
assuring maximum bend accuracy and repeatability through
constant monitoring and correction of beam parallelism by a
CNC system +/- .0004 parallelism and repeatabiIity.
Stroke-depth measurement through high-precision linear scales
which are bed referenced for the best bending repeatability
CNC-controlled backgauge on ballscrew spindles with AC servo
motor for precise accuracy and speed.
Block-type European hydraulics.
Large electrical cabinet for maximum ventilation.
Full conformity with EU/CE Machinery Directive for safety
certification.
ST 44-2 Certified steel used for components.
CSA certified & PHSR compliance ready.
Block laser safety guarding.
