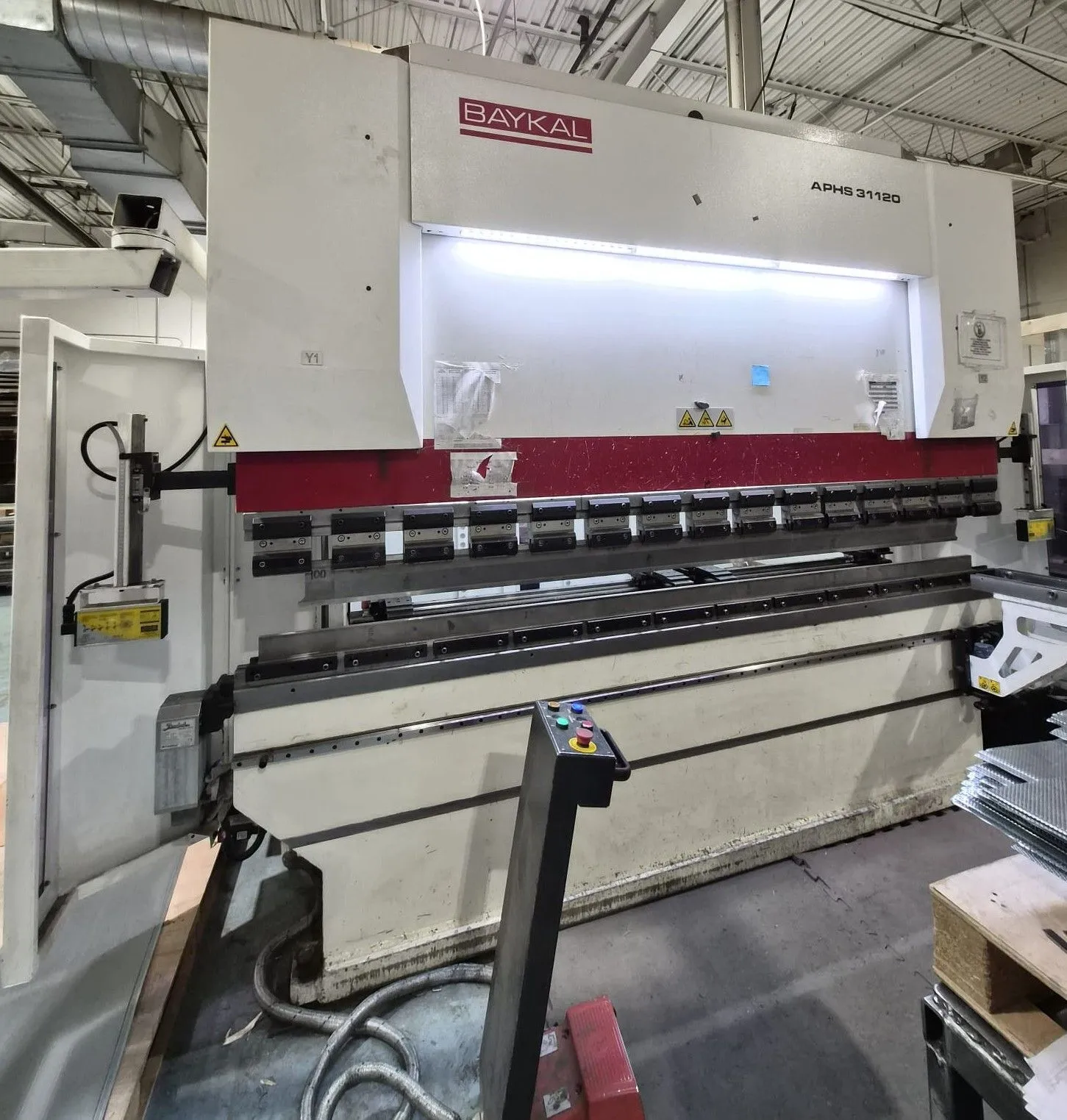

USED 2018 BAYKAL APHS 31120

10' x 120 Ton

Baykal APHS 31120 120 Ton x 10' CNC Hydraulic Press Brake (2018)

GENERAL SPECIFICATIONS
Tonnage: 120 Tons
Type: Hydraulic
CNC: Yes
Bending Length: 120”
Max Stroke: 10”
# of Axis: 3
Dimensions: 140” X 71” X 111” H
Weight: 18,519 Lbs

The Baykal APHS 31120 is a CNC hydraulic press brake designed for machining flat metal materials up to 3100 mm in length. It features a maximum bending capacity of 120 tons and operates with a precision of 0.01 mm.

Equipped with a high-quality design made of ST44-2 steel, ensuring minimal deflection under full load. Safety features include emergency stop buttons and a laser safety system that automatically stops the machine if the laser beam is interrupted.
Specifications: DESIGN AND OPERATING FEATURES
 Rigid, welded, monoblock steel frame for minimum deflection
under load up to 330 tons (Models above 330 tons are bolted).
 Downstroking bending beam with two cylinders made from high quality
certified forged steel, precisely honed and chrome plated.
 Ram travel fully supported in low friction fiber slideways.
 Full electronic synchronization with proportional valve technology
assuring maximum bend accuracy and repeatability through
constant monitoring and correction of beam parallelism by a
CNC system +/- .0004 parallelism and repeatabiIity.
 Stroke-depth measurement through high-precision linear scales
which are bed referenced for the best bending repeatability
 CNC-controlled backgauge on ballscrew spindles with AC servo
motor for precise accuracy and speed.
 Block-type European hydraulics.
 Large electrical cabinet for maximum ventilation.
 Full conformity with EU/CE Machinery Directive for safety
certification.
 ST 44-2 Certified steel used for components.
 CSA certified & PHSR compliance ready.
 Block laser safety guarding.
