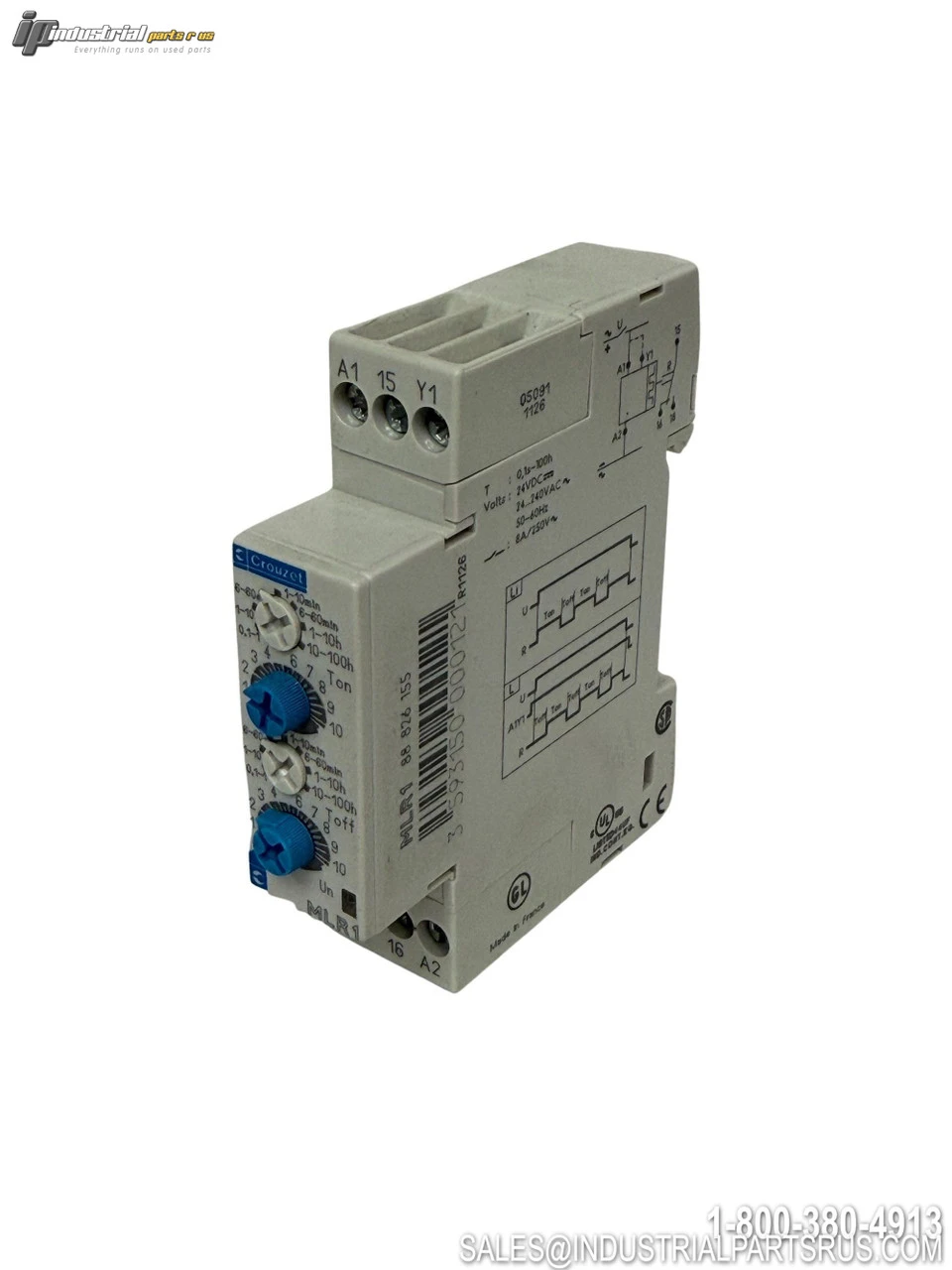

NEW CROUZET MLR1 88 826 155

The Crouzet MLR1 88 826 155 is a 17.5mm DIN rail mounted time delay relay designed for precise timing control in industrial automation applications. This bi-function timer features Li-L timing functions with adjustable time ranges from 0.1 seconds to 100 hours, making it suitable for a wide range of timing applications in control panels and machinery.
Specification
Value
Brand
Crouzet
Model/Part Number
MLR1 88 826 155
Product Type
Time Delay Relay
Series
MLR1
Functions
Li - L (Bi-function)
Timing Range
0.1s → 100h
Timing Ranges
1s - 10s - 1min - 10min - 1h - 10h - 100h (7 ranges)
Output
1 Changeover Relay (SPDT)
Contact Rating
8A @ 250V AC
Supply Voltage
24V DC / 24-240V AC
Frequency
50-60Hz
Connections
Screw Terminals
Mounting Type
DIN Rail Mount
Width
17.5mm
Repetition Accuracy
±0.5% (IEC/EN 1812-1)
Temperature Drift
±0.05%/°C
Voltage Drift
±0.2%/V
Display Accuracy
±10% @ 25°C (IEC/EN 61812-1)
Min Pulse Duration
30ms (relay version)
Weight
60g
Status
Discontinued (replaced by 88 827 155)
We warranty all items for 30 days from date of purchase.

SKU: AI1213
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Mounting Style: DIN Rail Mount
Current Rating: 8A
Manufacturer: Crouzet
Part Number: MLR1 88 826 155
Series: MLR1
Shelf: K-41
Model: MLR1 88 826 155
Coil Voltage: 24V DC / 24-240V AC
MPN: MLR1 88 826 155
Type: Time Delay Relay
