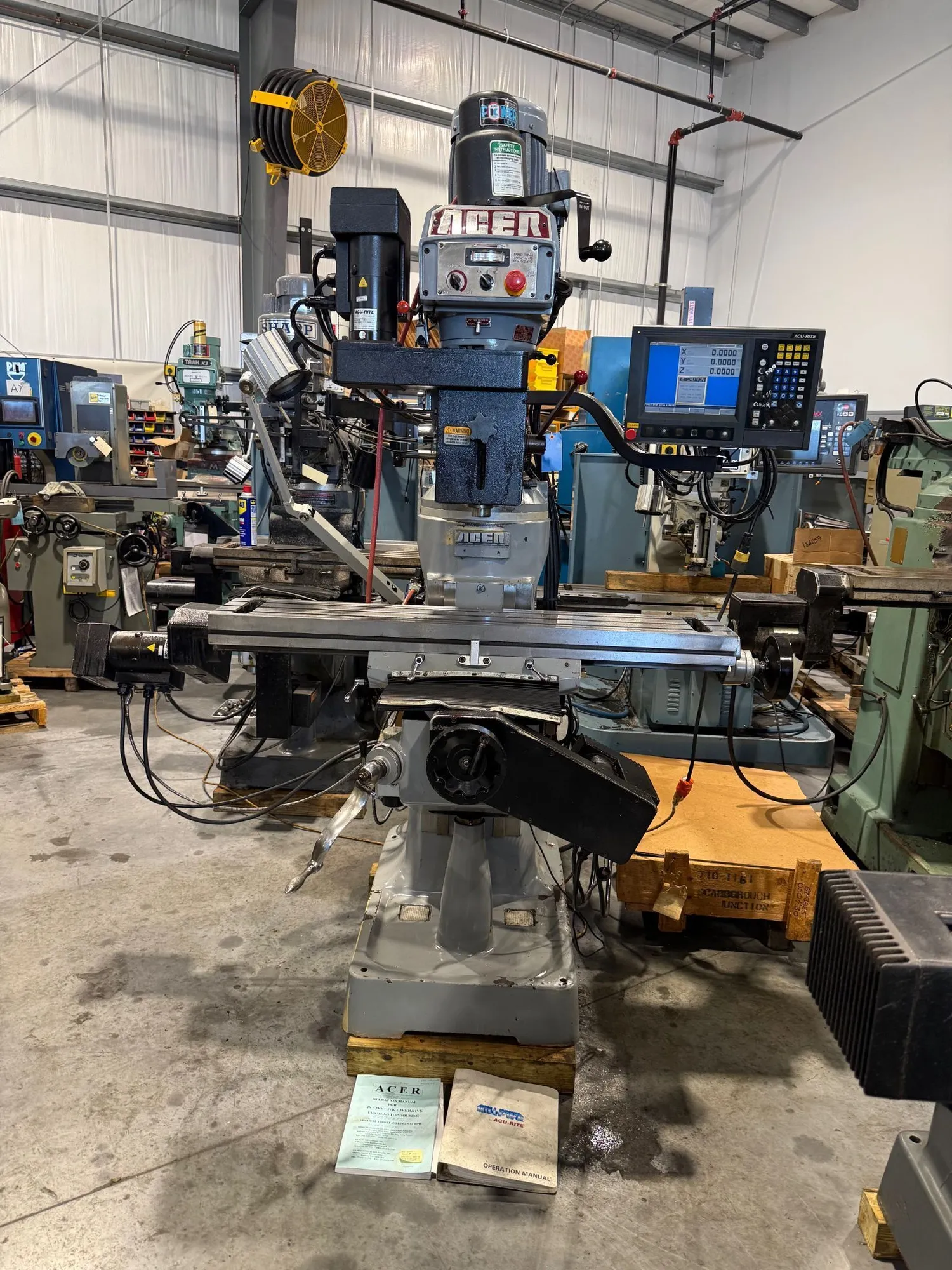

ACER E-MILL EVS-3VSII CNC Vertical Milling Machine 2012’ #8250
| Table-W | 9" | 228.6 mm |
| Table-L | 42" | 1,066.8 mm |
| Travel-Long | 28" | 711.2 mm |
| Travel-Cross | 12" | 304.8 mm |
| Power | 3 hp | 2.2 kW |
| RPM | 4,500 RPM | 4,500 RPM |
| Taper | R-8 | R-8 |
| Dimensions | 60” x 65” x 94” H | 60” x 65” x 94” H |
| Weight | 2,600 Lbs. | 2,600 Lbs. |
ACER E-MILL EVS-3VSII CNC Vertical Milling Machine 2012’ #8250
Reference #8250
Model # EVS-3VSII
Serial # N12030095
Year of manufacture- 2012’
Table size- 9” x 49”
X axis travel- 31”
Y axis travel- 12”
Knee travel- 16”
Ram- 12”
Head moves Right to Left- 90°
Head tilts front to back- 45°
Spindle speeds- 60 – 4,500 R.P.M.
Spindle taper- R-8
Power quill feeds- 0.0015”, 0.003”, 0.0006”
Quill diameter- 3-3/8”
Quill travel- 5”
ACURITE MILLPWR CNC 3 axis Control
Pneumatic drawbar
Machine Manuals
3 H.P. Motor
Machine is wired for 230 volt / 3 phase / 60 H.Z.
Machine weight- 2,600 Lbs.
Machine dimensions- 60” x 65” x 94” H
Machine location- F.O.B. Sarasota, Florida
