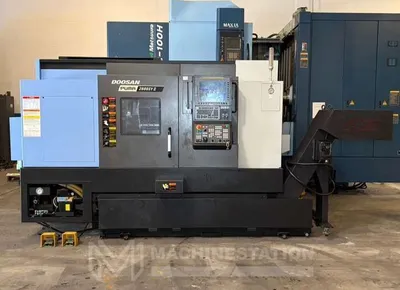

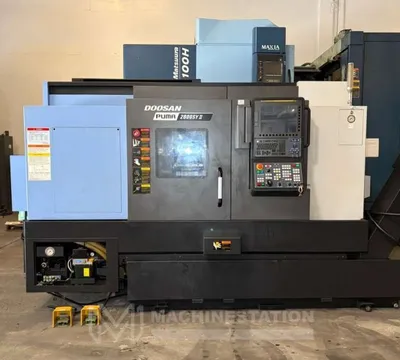

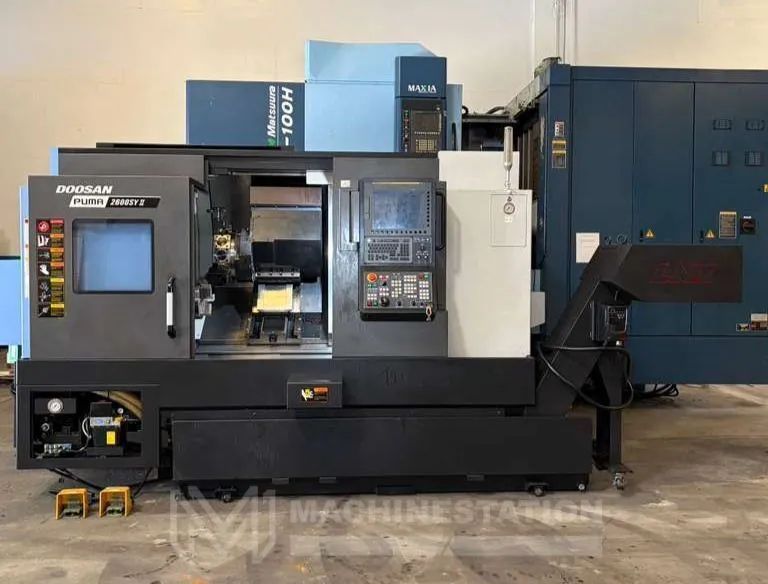

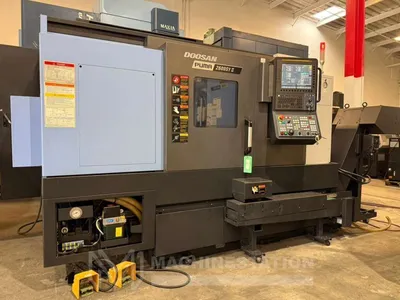

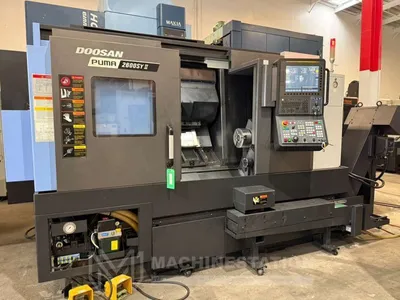

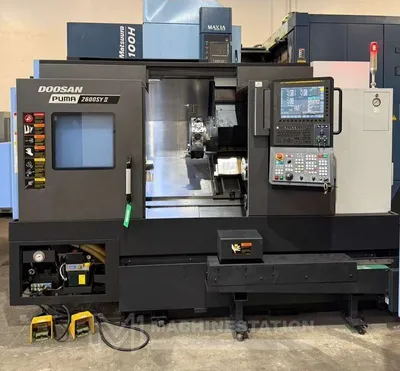

USED 2021 DOOSAN PUMA 2600SYII

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

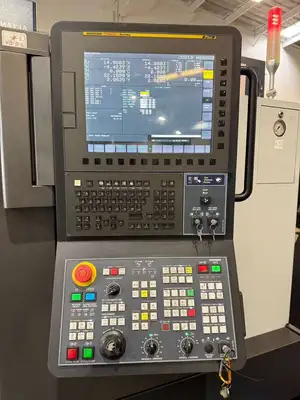

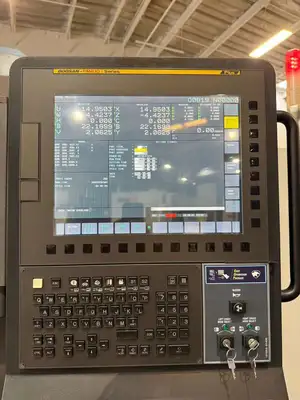

Doosan-Fanuc i-Plus Series CNC Control
2,513 Hours Cutting Time
Rigid Tapping on Both Spindles
Foot Operated Control for Chuck

Capacity:
Max Turning Diameter: 14.80″
Max Turning Length: 29.90″
Swing Over Bed: 30.70″
Swing over the Saddle: 24.80″
Max Bar Capacity: 3.20″

Travels:
X Axis Travel: 10.20″
Z Axis Travel: 32.70″
Y Axis Travel: 4.10″ (+ 2.10″ – 2.10″)
B Axis Travel: 32.70″ (Sub Spindle)
C Axis: 360° (0.001°) Both Spindle

Feedrate:
Rapid Traverse X Axis: 1181 IPM
Rapid Traverse Z Axis: 1181 IPM
Rapid Traverse Y Axis: 394 IPM
Rapid Traverse B Axis: 1181 IPM
Rapid Traverse C Axis: 200 RPM

Spindle:
Main Spindle Nose: A2-8
Main Spindle Bore: 3.60″
Main Spindle Bar Capacity: 3.20″
Main Spindle Speed: 4,000 RPM
Main Spindle Power: 30 HP

Sub Spindle:
Sub Spindle Nose: A2-5
Sub Spindle Bore: 2.40″
Sub Spindle Bar Capacity: 1.96″
Sub Spindle Speed: 6,000 RPM
Sub Spindle Power: 20 HP

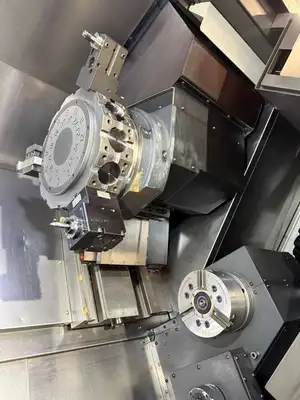

Turret:
Capacity: 12 Stations (24 Positions)
Turret Index Time: 0.15 Second
Live Tool Speed: 5,000 RPM
Live Tool Spindle Power: 10 HP
Tool Holders Type: BMT-65P

General:

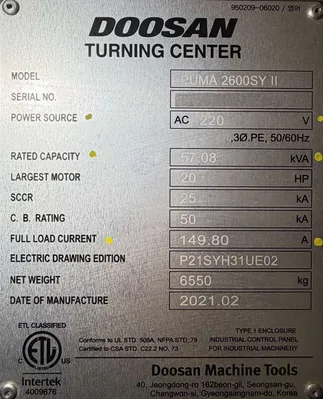

Power Source: 220v / 3-Phase / 60 Hz/ 57.08 kva
Overall Dimensions: 142″ x 75″ x 85″ High Approx.
Weight: 14,220 lbs Approx.

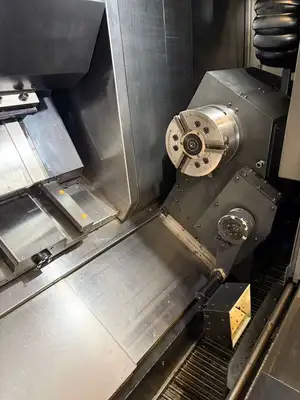

10″ 3-Jaw Chuck on Main Spindle

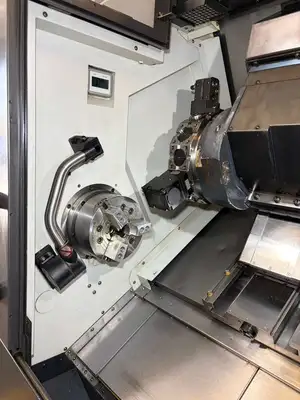

8″ 3-Jaw Chuck on Sub Spindle
Sub Spindle
Sub Spindle Parts Ejector
Servo Controlled Full C-Axis on Both Spindles

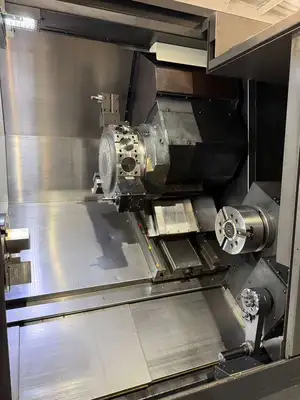

12-Station (24 Positions) Live Tool Turret
Y Axis Capable
Tool Presetter
Parts Catcher
Parts Conveyor
Bar Feeder Interface

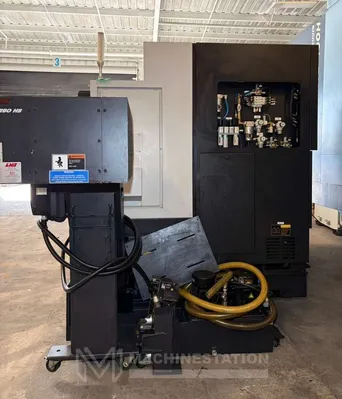

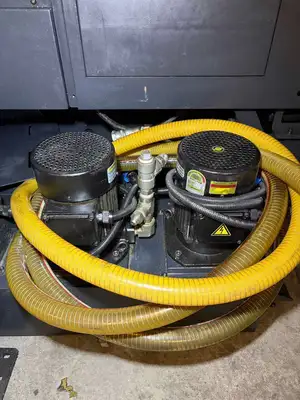

MP Systems VR8 High Pressure Coolant
Coolant Tank
LNS Chip Conveyor
