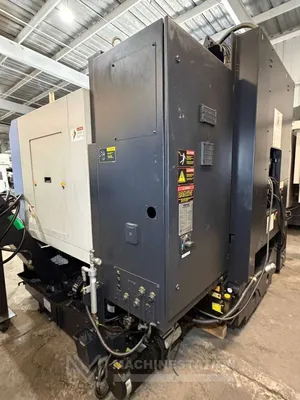

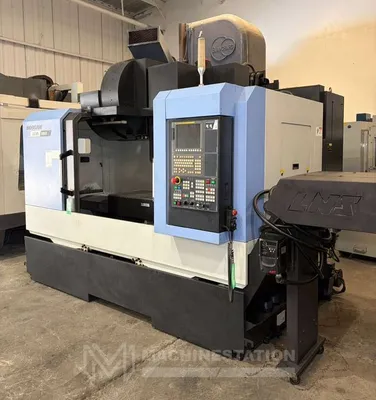

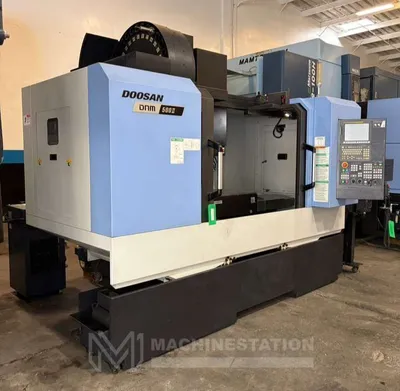

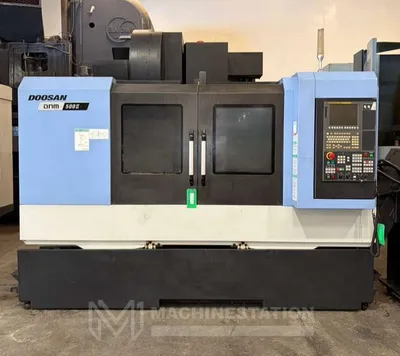

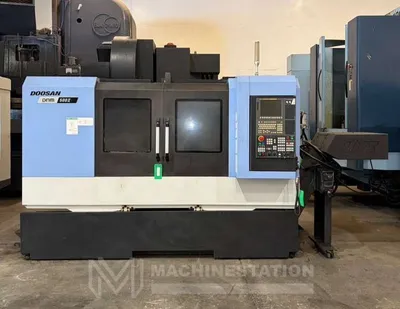

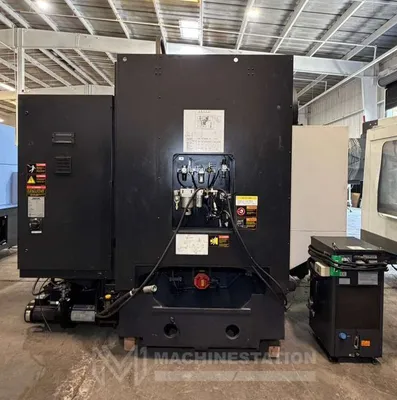

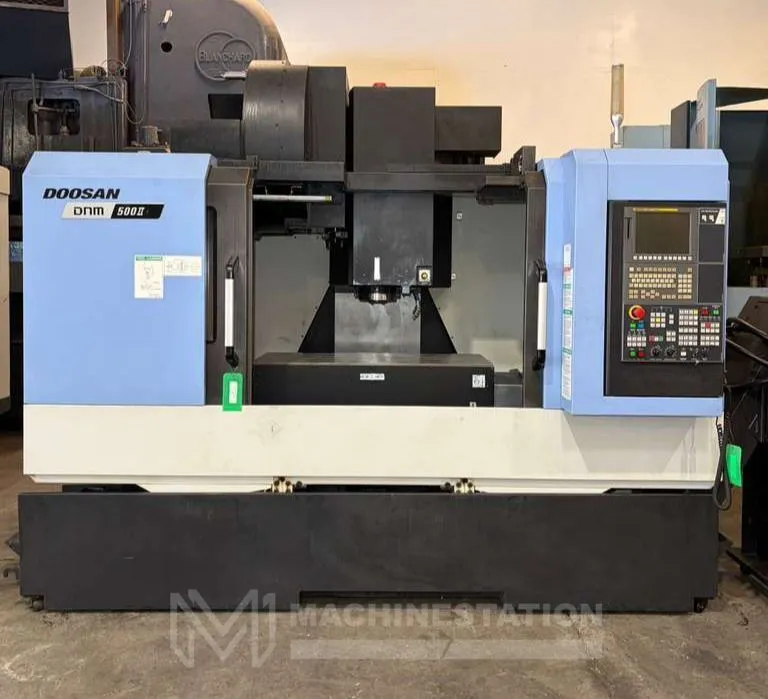

USED 2015 DOOSAN DNM 500II

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

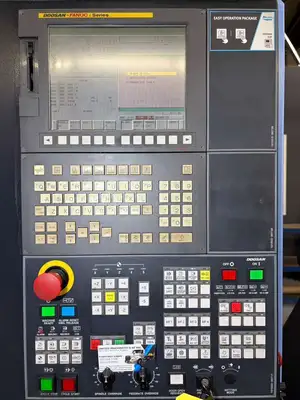

Doosan Fanuc i-Series CNC Control
4,127 Hours Cutting Time
CAT-40 Taper Spindle
USB Drive
PCMCIA Card Slot & RS-232 Port
MPG Hand Wheel Control
Automatic Lubrication System
Rigid Tapping
Coolant System
Note: Vise is not included with the machine

Travels:
X-Axis: 40.2″
Y-Axis: 21.3″
Z-Axis: 20.1″
Rapid Traverse Rates X & Y Axis: 1417 IPM
Rapid Traverse Rates Z Axis: 1181 IPM
Cutting Feed Rates: 590 IPM
Spindle Nose to Table (Min.- Max.): 5.9″ – 26.0

Table:
Length: 47.2″
Width: 21.3″
Number of Std T-Slots: 4
T-Slot Width: 4.9″ x 0.7″
Max Weight on Table: 1764 lbs

Spindle:
Taper Size: CAT-40
Speed Range: 8,000 RPM
Spindle Power: 12 HP

Automatic Tool Changer:

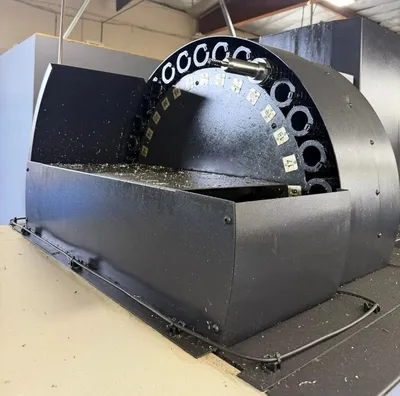

Capacity: 30 Station Side Mounted
Max Tool Weight: 17.6 lbs
Max Tool Dia: 3.1″ -4.9″
Max Tool Length: 11.81″
Tool Changing Time : 1.3 Seconds

General:
Air Required: 90 psi 4 scfm

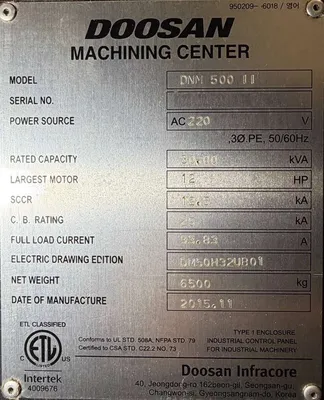

Power: 220v / 30 kva / 3-Phase / 50/60 Hz
Overall Dimensions: 116″ x 96″ x 107″ High
Weight: 14330 lbs

8,000 RPM Spindle

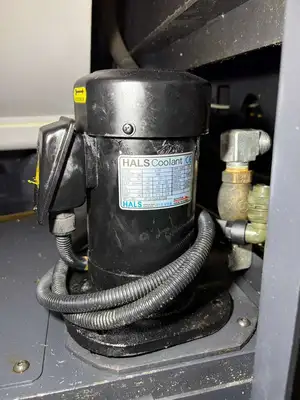

Through Spindle Coolant
30 Station Automatic Tool changer
Renishaw Receiver Installed

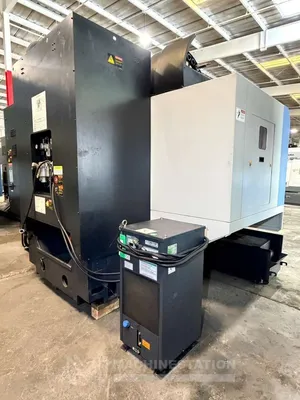

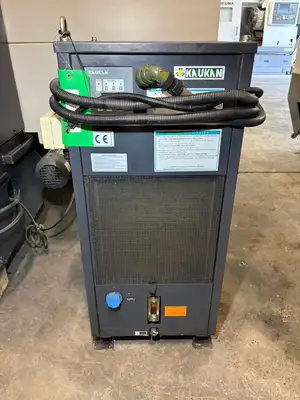

Spindle Chiller Unit
LNS Chip Conveyor
