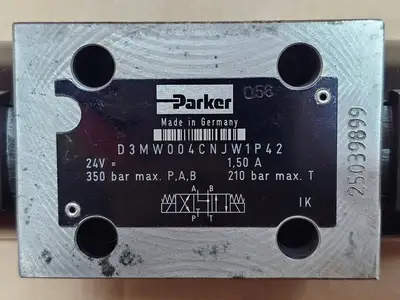

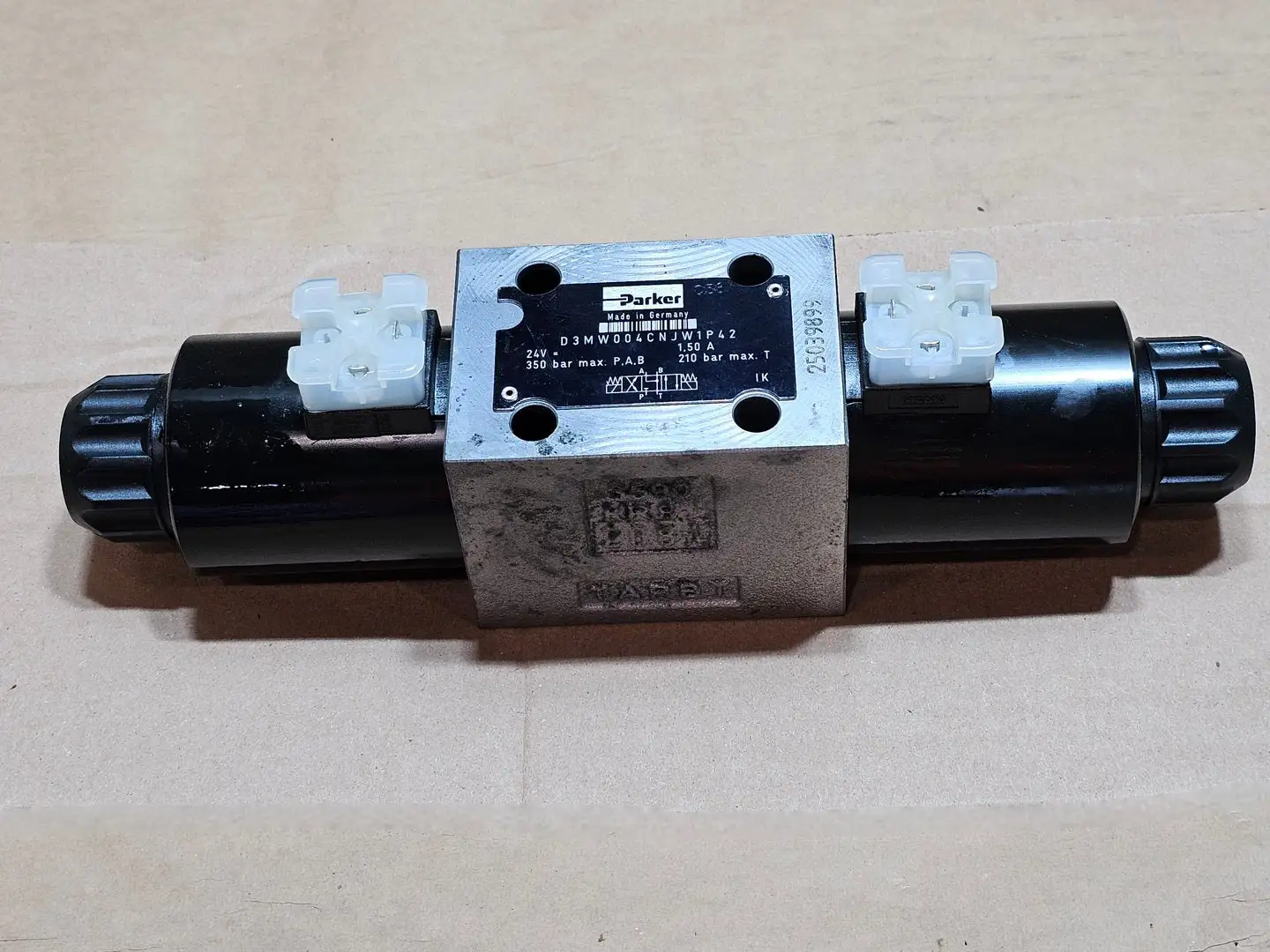

NEW PARKER D3MW004CNJW1P42

Overview:
Specs
Product Series: Directional control valve
Port Connection: NG10 / CETOP 05
Solenoid Connection: EN 175301-803
Division: Industrial Systems Division Europe
Function: 3-way
Corrosion Resistance Included: Anti corrosion coating
Signal Input: 24 V
Seal Material: NBR
Body Material: Cast iron
Solenoid Option: Standard solenoid
Spool Position: 3 positions, spring offset in position 0, operated in position a or b
Mounting Position: Unrestriced, preferably horizontal
Maximum Operating Pressure: 350 bar
Maximum Flow Rate: 150 L/min
Nominal Size: NG10 / CETOP 05
Maximum Operating Temperature: 60 °C
Minimum Operating Temperature: -25 °C
For Fluid Type: Hydraulic oil according to DIN 51524
Mounting Type: Subplate mounting
Actuation Type: Solenoid
Operation Type: Direct
