| Table-W | 11" | 279.4 mm |
| Table-L | 58" | 1,473.2 mm |
| Travel-Long | 33.5" | 850.9 mm |
| Travel-Cross | 15" | 381 mm |
| Power | 2 hp | 1.5 kW |
| RPM | 4,200 RPM | 4,200 RPM |
| Taper | r8 | r8 |

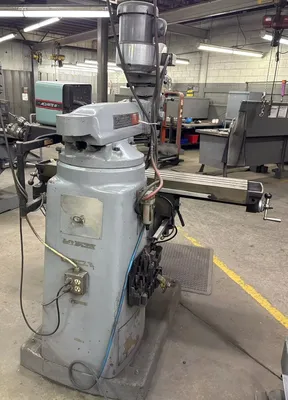

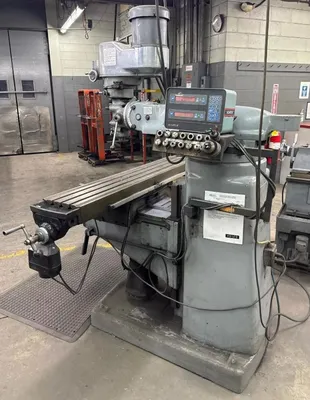

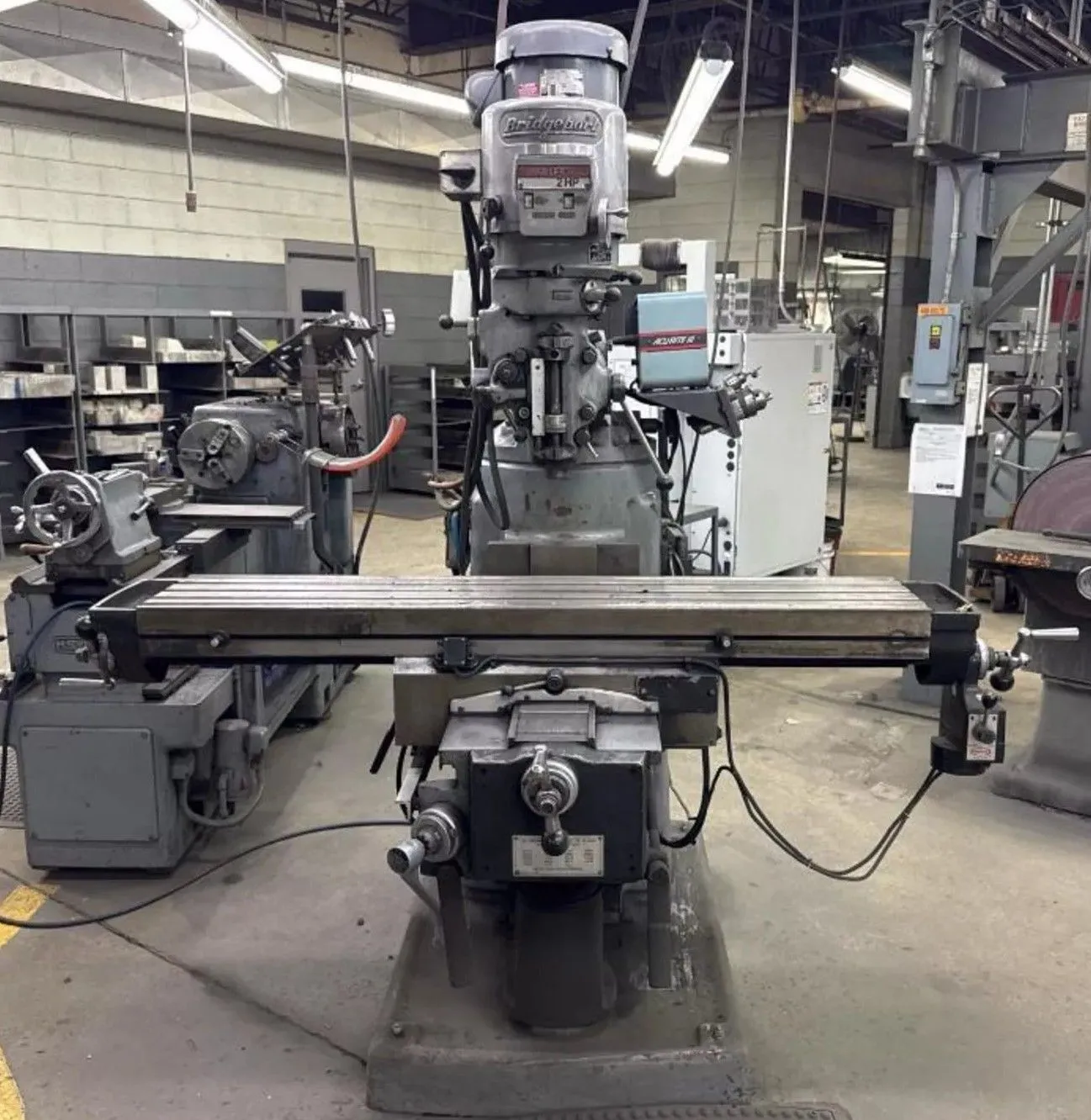

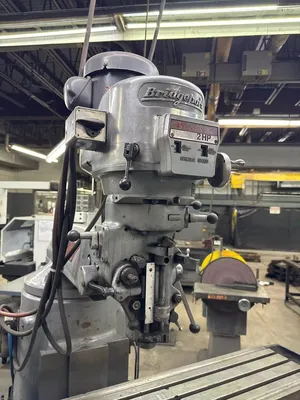

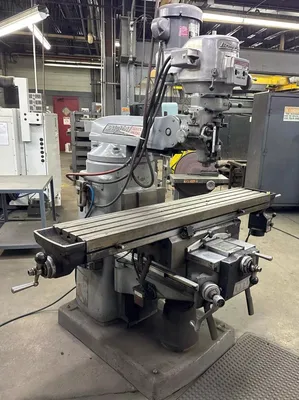

Bridgeport Series II Special Mill w/Rebuilt 2 HP, DRO, PF, Chrome, 11x58 Table
General:

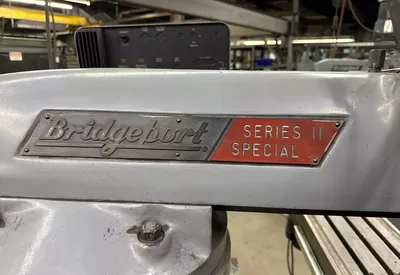

Model: Series II Special

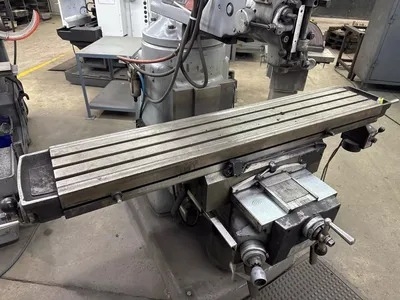

Table Area (T-Slotted): 58" x 11"

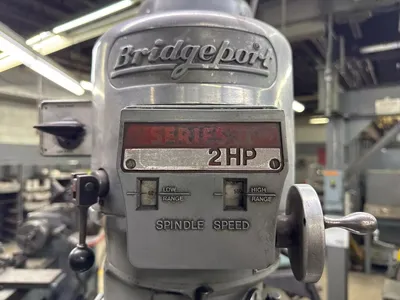

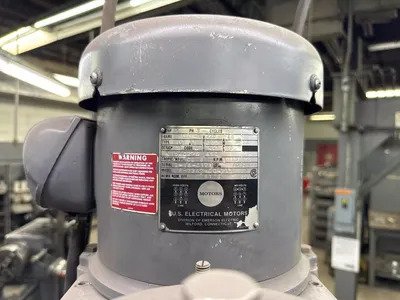

Motor: 2 HP Rebuilt Top Half

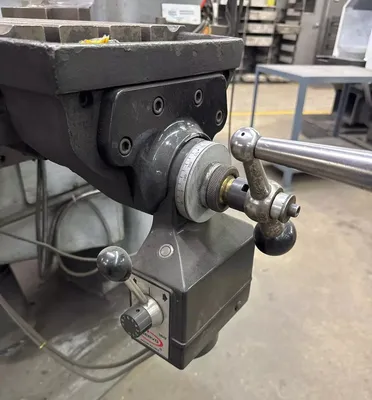

Servo Brand X Axis Power Feed

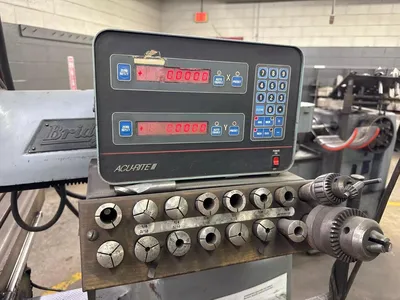

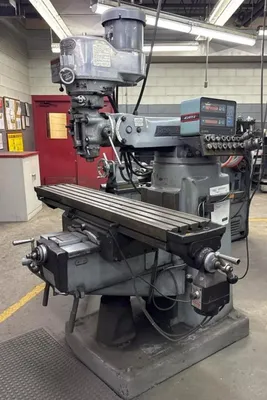

Acurite III 2 Axis DRO
Chrome Box Ways
Maximum Workpiece Weight:1500 lbs
Spindle Taper: R8
Travels:
Longitudinal Table Travel: 33.5"
Cross Travel (Saddle): 15"
Vertical Knee Travel: 16" Air Assisted
Ram Travel: 16"
Quill Travel: 5"
Spindle:
Spindle Speeds (Variable): 60 to 4200 RPM
Spindle Feeds: .0015, .003, .006 IPR
Quill Diameter: 3-3/8"
Throat Distance: 6" min, 23" max
Table Ways: Chrome Box Ways
Bijur One Shot Lube
Wired 230V 3 Phase
6' x 5' x 7' 3500lbs
