NEW 2022 DOOSAN VTR-1216M
Overview
2022 DOOSAN Model VTR-1216M Vertical Boring Mill, Only 1,000 cut hours, Live tools, 15 Pos ATC

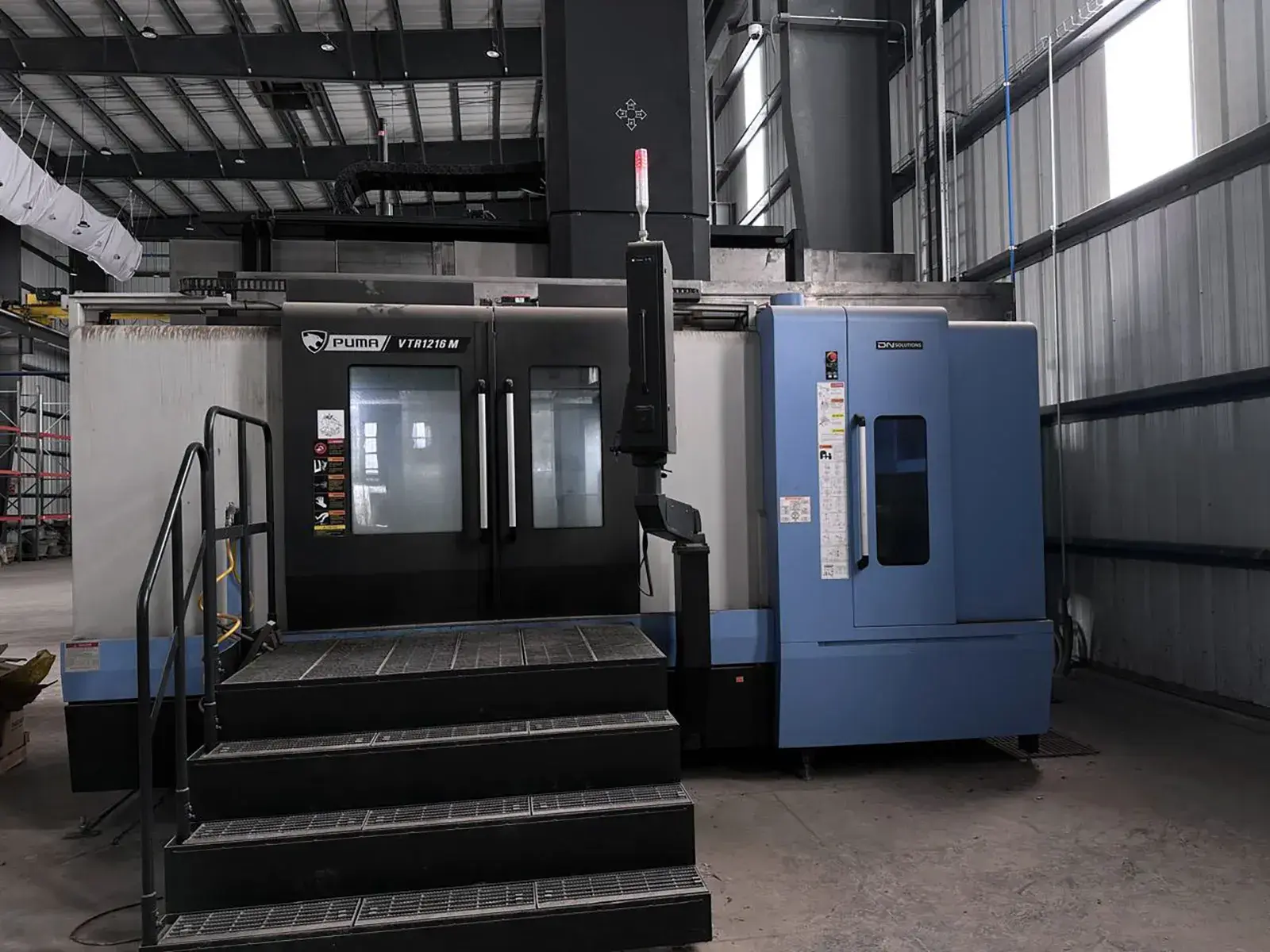

The Doosan Puma VTR1216M (now under DN Solutions) is a high-rigidity, large-capacity ram-type vertical turning center designed for heavy-duty machining of large, complex components. It features a 1250 mm (49.2 in) table, 1600 mm (63 in) turning diameter capacity, and 1250 mm (49.2 in) height, with a 30,000 kg total weight
Specs
CAPACITY
RAM Size 260 x 260 mm 10.2 x 10.2 in
Max Turning Diameter ⌀1600 mm 63 in
Max Turning Length 1250 mm 49.2 in
Max Table Load 8000 kg 17637 lbs
Spindle to Floor Distance 1105 mm 43.5 in
TOOLING
Changer Capacity 15
Max Tool Length 500 mm 19.7 in
RAM Milling Tool Speed 3000 RPM
RAM Milling Tool Power 15 kW 20 HP
RAM Milling Tool Torque 674 Nm 497 ft-lbs
Shank BMT-KEY
SPINDLE
Speed 400 rpm
Power 45 kW 60 HP
Torque 31977 Nm 23585 ft-lbs
TRAVELS
Rapid Traverse Z-axis 10 m/min 394 in/min
Travel Distance X-axis 1700 mm 66.9 in
Travel Distance Z-axis (RAM) 1200 mm 47.2 in
Rapid Traverse X-axis 12 m/min 472 in/min
MACHINE SIZE & WEIGHT
Length 5265 mm (207 in.)
Height 5583 mm (220 in.)
Width 3824 mm (150.5 in.)
Weight 30000 kg (66140 lbs.)
Equipped With
C Axis
Live Tooling Included
15-Position Automatic Tool Changer

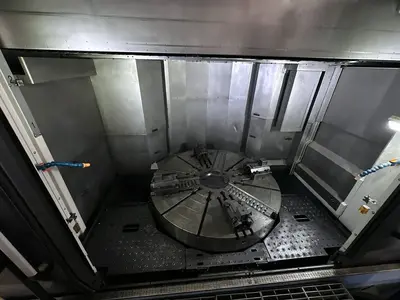

55" dia Chuck
4 Jaw's Included
Chuck open/close confirmation
Automatic Tool Gauge
Cooling System

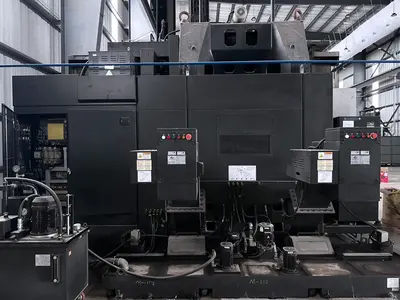

725 psi Hydraulic System
Complete Tool Holder Set
Operation and Maintenance Manuals
Hydraulic Actuator
Chuck Clamp/Unclamp Confirmation Proximity Switches
1 Renishaw RMP600-1IN-DIA Part Probe with 1" Shank and 3.9" Stylus Included
1 Dual Chuck Pressure Included
1 REN-RMIQ-SW-2 Receiver Renishaw RMI-Q
Radio Frequency Interface Included

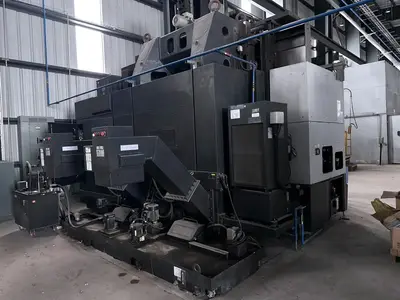

2 Chip Conveyors
Doosan EZ Guide Conversational Programming Assistant
