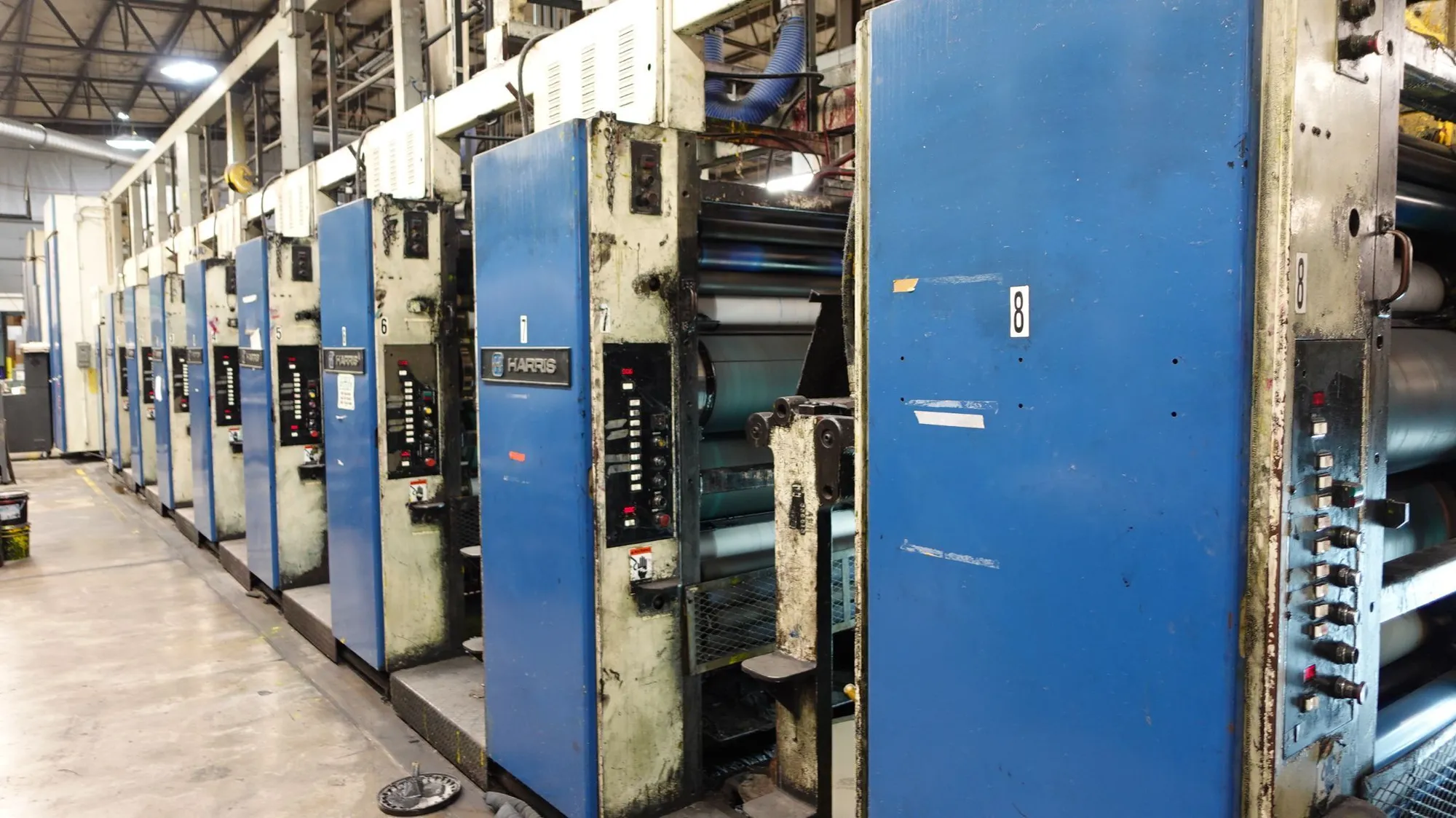

Harris M1000A2 (8) unit, (2) web offset press system configured for 32-page commercial heatset production with inline finishing. This double-web configuration includes splicing, 2-pass infeed, printing units, drying, chill stands, register control, and a complete finishing line.
Rated up to 45,000 impressions per hour, the M1000A2 represents the final generation of the M1000A series prior to the M1000B, offering a proven platform for high-volume commercial and specialty print applications.
Available immediately.
Manufacturer: Harris
Model: M1000A2
Configuration: (8) Unit | (2) Web
Cutoff: 22.75" (578 mm)
Web Width: 38" (965 mm)
Capacity: Up to 45,000 IPH
Format: 32-Page Production
Applications: Commercial Printing, Inline Finishing
Harris M1000A2 (6) Unit (1) Web Offset Press System
22.75" (578mm) Cutoff x 38" (965mm) Width
Equipped with:
(2) Butler Model 6000 Datamat splicer 50" Diameter Roll Capable
(1) Harris 2 Pass Infeed
(2) WPC Web 9400 guides (Infeed)
(8) Harris M1000A2 Printing Units w/ Duotrol Dampening
(1) TEC Air Turn system for two webs
(1) Press Control console with touchscreen control
(2) Telecolor Remote Ink Consoles
(1) AWS fountain solution recirculator
(2) Main Motors and Drives
(2) AWS chillPacs
(1) Spec remoist gluer
(1) Thermo Electron dryer
(1) Thermo electron chill roll stand
(1) WPC 2 Pass CCR Register system
(2) WPC 9400 Web Guides
(2) Silicone applicators
(1) WPC 9500 Cutoff Control
(1) 90 Degree angle bar section
Finishing Line
(1) AGM 2-in / 6-out Right Angle Bar with Ribbon Deck & Compensators
(1) Scheffer Pattern Gluer
(2) Driven Roller Compensator Sections
(3) Scheffer Plow Stations (2004)
(1) Scheffer Die Cutter (2004)
(1) Scheffer Series III Rotary Cutter with TED Delivery Table (2004)
