Mecon 30" wide x 15,000lbs Coil Feed Line
| Coil Weight Capacity | 15,000 lb | 6,803.9 kg |
| Stock Width Capacity | 30" | 762 mm |
| Max Stock Thickness Capacity at Full Width | 0.125" | 3.175 mm |
| Minimum Expansion Range | 20" | 508 mm |
| Maximum Expansion Range | 24" | 609.6 mm |
| Coil O.D. Capacity | 72" | 1,828.8 mm |
Model: 150OBTJ30 / 150CCRT
Serial #: 1509606 / 2499-153
Coil Weight Capacity: 15,000lbs
Stock Thickness Capacity......... 30" wide x 0.125" thick
Min. Thickness Capacity at Stock Width: 30" wide x 0.030" thick
Coil I.D.: Range: 20" - 24"
Coil O.D.: 72"
Power Supply: 480/3/60
Feed Direction: Left to Right

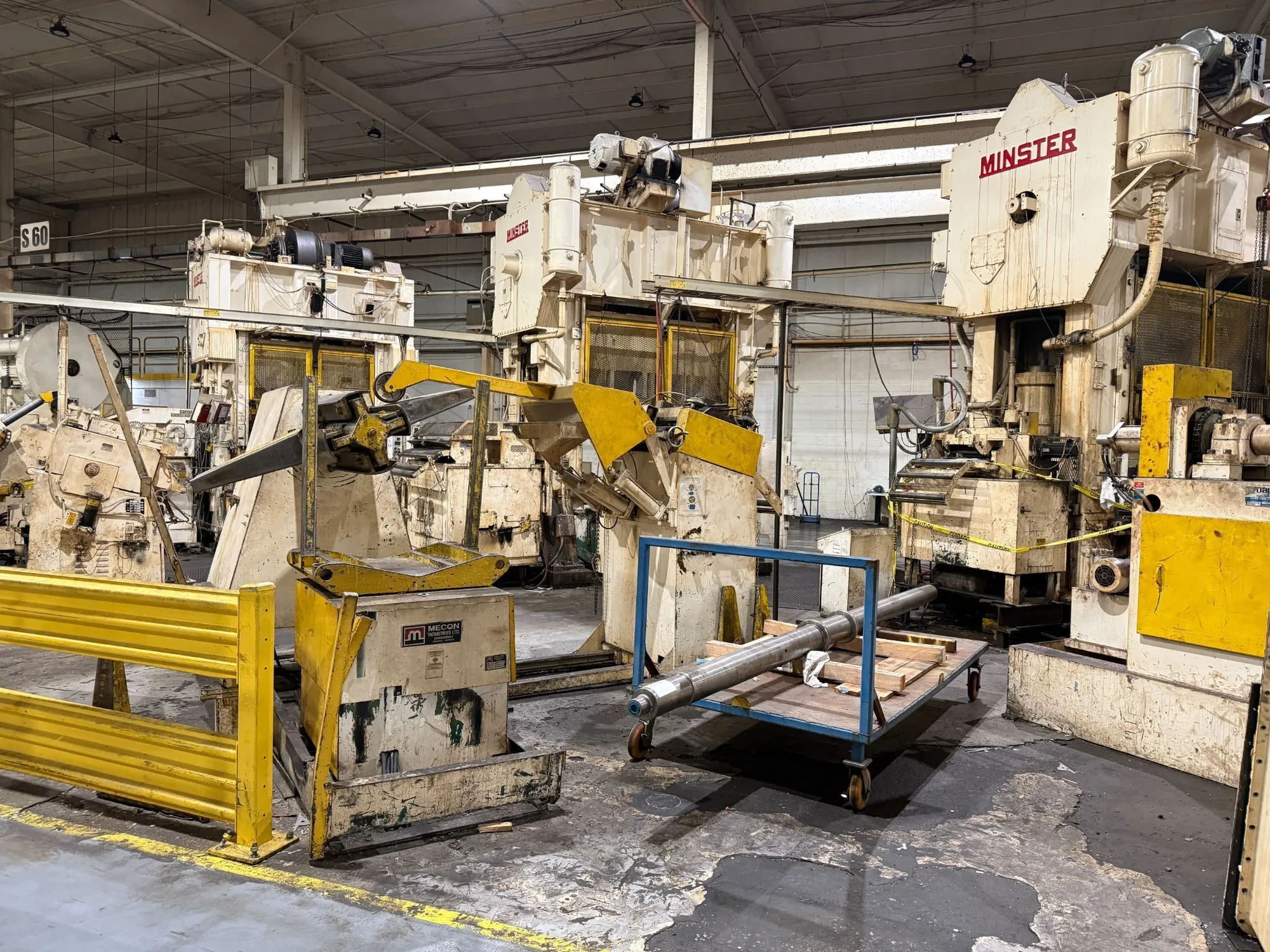

Mecon Coil Reel w/ Coil Car (Model: 150OBTJ30 / 150CCRT)
Back tension brake with jog motor for threading
Coil car
Mecon Powered Straightener w/ Hold Down Arm
Mecon Servo Feed
Floor Standing
