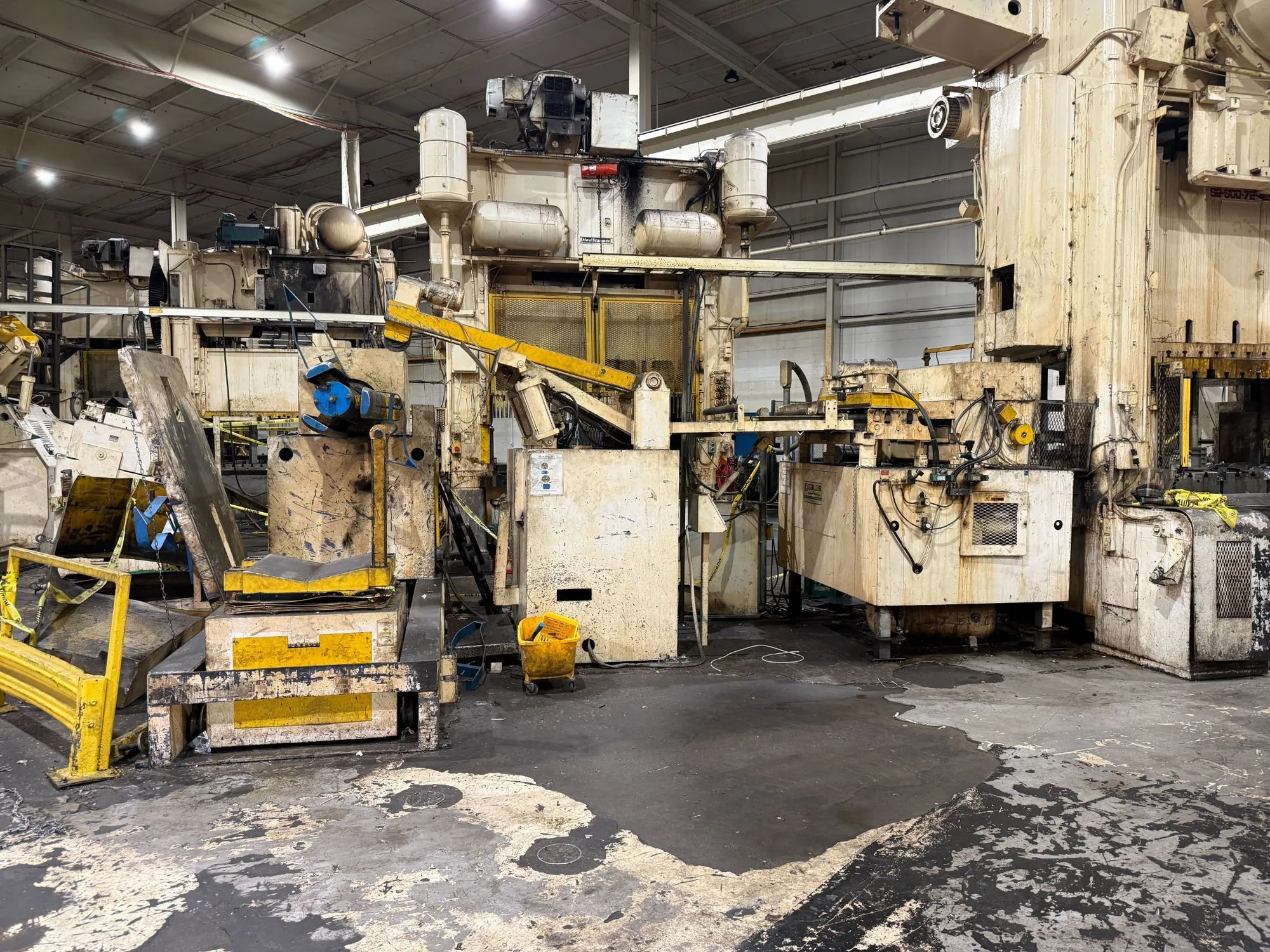

USED DALLAS DPR-15000 x 30 / DRF-630
Overview
Description
Dallas 30" wide x 15,000lbs Space Saver Coil Feed Line (30" wide x 0.188" thick)
Line was completely rebuilt in 2010
Specifications
| Coil Weight Capacity | 30 lb | 13.6 kg |
|---|---|---|
| Stock Width Capacity | 15,000" | 381,000 mm |
| Max Stock Thickness Capacity at Full Width | 0.188" | 4.7752 mm |
| Minimum Expansion Range | 20" | 508 mm |
| Maximum Expansion Range | 24" | 609.6 mm |
| Coil O.D. Capacity | 72" | 1,828.8 mm |
Model: DPR-1500 x 30 / DRF-630 RH
Serial #: 18399 / 18396
Coil Weight Capacity: 15,000 lbs
Coil Width Capacity: 30”
Stock Thickness Capacity: 30” wide x .188” thick material
………………………………………………18” wide x 0.250” thick material
Coil I.D. Range: 20-24”
Coil O.D.: 72”
Power Supply: 460/3/60
Feed Direction: Right To Left (Back-side load)
Equipped With
Dallas Coil Reel Motorized - Model No. DPR-15000 x 30 (Serial #: 18396)
Three leaf mandrel
Hydraulic mandrel expansion
Motorized payout with space saver loop control
Air brake
Keeper Arms
Back Deflector Plate
Jog drive for threading
Spindle Jog Forward/Reverse
Travelling Coil Load Car - Model No. LC-15000 x 30 (Serial #: 18397)
Hydraulic Lift for Coils
Dallas PTR Unit with Hold Down Arm Motorized End Wheel
Hold Down Arm (Hydraulically Actuated)
Peeler/Threader/Debender Unit
Motorized End Wheel
Dallas Servo Feed with Pull Thru Straightener - Model No. DRF-630RH (Serial #: 18399)
Individual upper straightenering roll adjustments
Five straightening rolls x 3” diameter
Pinch rolls with air operated adjustments
6” diameter Feed Rolls
Entry Edge Guides
AC Servo Controls
