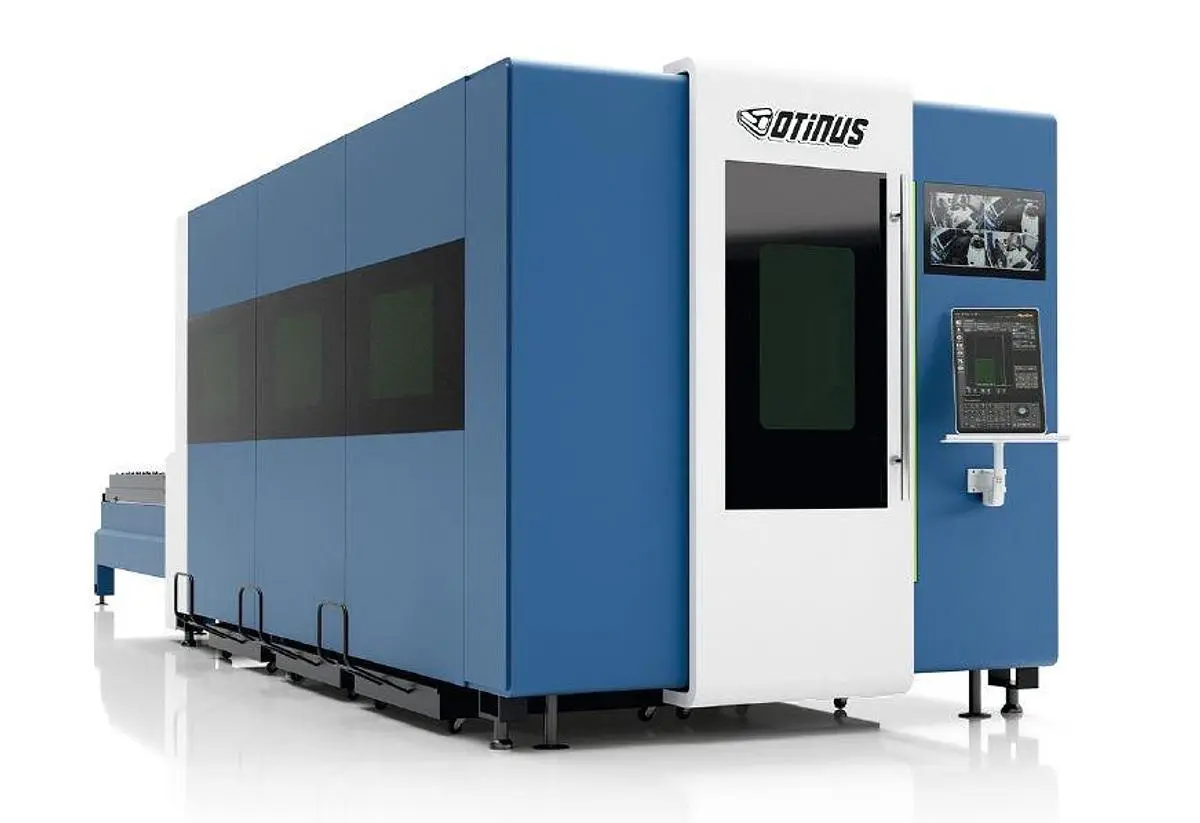

NEW OTINUS FLC-3015-12000W

The OTINUS Fiber Laser Cutting Machine, model FLC-3015-12000W, is designed to handle industrial-level cutting with precision and speed. This new cutting machine features a generous maximum sheet size capacity of 120 x 60 inches, making it suitable for substantial projects. It boasts a powerful 12 kW nominal power output and runs on a power supply of 3x480V 60 Hz, with other connections available as needed, ensuring optimal efficiency.

With impressive positioning accuracy of ±0.05mm and repeatability of ±0.03mm for the X/Y axes, the machine supports precision in detailed work. The OTINUS laser cutter operates with a maximum idle speed of 120,000 mm/min and features a travel acceleration of 1.5 G, allowing for swift processing without compromising accuracy. With a power consumption of 73 kW, this machine is engineered for performance and reliability, embodied in its ingress protection rating of IP54.

The source brand for the laser is customizable, offering either MAX Photonics or Raycus. It handles a variety of metals effectively, cutting up to 35 mm of mild steel, 25 mm of stainless steel, and up to 18 mm for both aluminum and brass. This laser cutting machine is a robust choice for professionals needing versatility and robust cutting power in their routine manufacturing processes.

MODEL NUMBER: FLC-3015-12000W
MAX SHEET SIZE: 120 X 60"
POSITIONING ACCURACY OF X/Y AXES: +/- 0.05MM
POSITIONING REPEATABILITY OF X/Y AXES: +/- 0.03MM
MAX IDLE SPEED: 120000 MM/MIN
MAX TRAVEL ACCELERATION: 1.5 G
NOMINAL POWER OUTPUT: 12.0 kW
POWER CONSUMPTION: 73.0 kW
SOURCE BRAND: MAX PHOTONICS AND RAYCUS AS AVAILABLE OPTIONS FOR SELECTION
POWER SUPPLY: ~3x480V 60 Hz OR OTHER
INGRESS PROTECTION RATING: IP54
MILD STEEL: 35.0 MM RECOMMENDED/MAX
STAINLESS STEEL: 25.0 MM RECOMMENDED/MAX
ALUMINUM: 18.0 MM RECOMMENDED/MAX
BRASS: 18.0 MM RECOMMENDED/MAX
