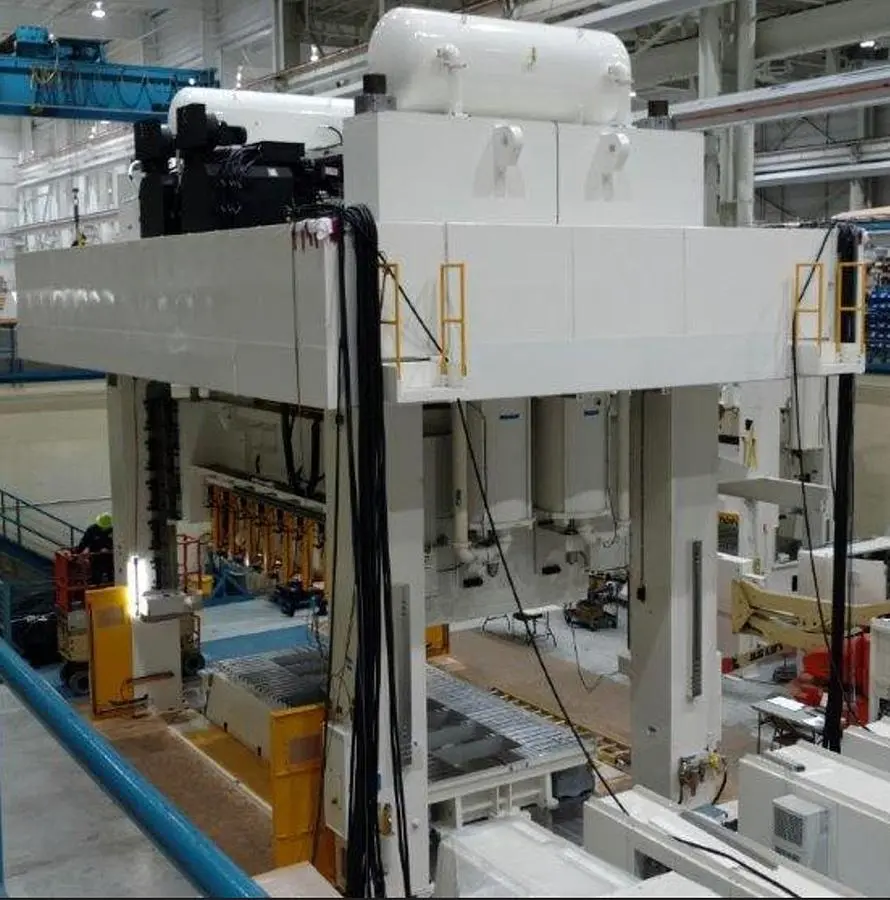

USED 2016 AIDA DSF-S4-15000(2)-610-245
Overview
Description
The AIDA 1500 Metric Ton Servo Press, model DSF-S4-15000(2)-610-245, is a robust used straight side servo press. With a tonnage capacity of 1500 metric tons, it offers a range of versatile operations suitable for heavy-duty industrial applications. The press operates at a stroke length of 610mm, with continuous strokes per minute ranging from 1 to 30 and a pendulum stroke of up to 40 per minute for a 200mm setting. It provides significant working energy, reaching up to 685KJ at 10 strokes per minute in continuous mode.
This model features a moving bolster with dimensions of 6100mm by 2450mm, and a slide adjustment capability of 400mm. Designed for precision and efficiency, it accommodates a maximum upper die weight of 30,000 kg. The press is powered by three A8870 servo motors, emphasizing powerful performance and control. Essential requirements include a connecting voltage of 480V/3PH/60HZ, and it operates comfortably within an ambient temperature range of 5-40°C.
The press is equipped with a comprehensive control system utilizing 120VAC and 24VDC for optimal operational efficiency. Approximately weighing 490,000 lbs, with a height above the floor of 9301mm, this robust machine is ready to meet demanding industrial challenges with precision and reliability.
Specifications
MODEL NUMBER: DSF-S4-15000(2)-610-245
SERIAL NUMBER: 2028745
TONNAGE: 1500 METRIC TON
RATING POINT: 12.7MM
STROKE LENGTH: 610MM
STROKES PER MINUTE (CONTINUOUS): 1-30
STROKES PER MINUTE (PENDULUM 200MM): 1-40
WORKING ENERGY (CONTINUOUS @ 30 SPM): 375KJ
WORKING ENERGY (CONTINUOUS @ 10 SPM): 685KJ
WORKING ENERGY (PENDULUM 200MM): 140KJ
INCH SPEED: MAX 10 SPM
DIE HEIGHT (SDAU): 1220MM
SLIDE ADJUSTMENT: 400MM
SLIDE AREA: 6100 LR x 2450 FB
BOLSTER AREA: 6100 LR x 2450 FB
BOLSTER TYPE: MOVING
BOLSTER THICKNESS: 720MM
FLOOR TO TOP OF BOLSTER: 720MM
COLUMN SIDE MINIMUM OPENING: 3250MM
MAX UPPER DIE WEIGHT: 30,000KG
SERVOMOTOR TYPE AND QUANTITY: A8870 X 3
PRESS FULL LOAD AMPS: TBD
REQUIRED AIR PRESSURE: 0.55MPa
PASSLINE ABOVE BOLSTER: 711.2MM
CONNECTING VOLTAGE: 480V/3PH/60HZ
CONTROL VOLTAGE: 120VAC & 24VDC
AMBIENT TEMPERATURE: 5-40 CEL
RELATIVE HUMIDITY: 30-85%
APPROXIMATE WEIGHT OF PRESS: 490,000 LBS
APPROXIMATE HEIGHT OF PRESS ABOVE FLOOR: 9301MM
