USED FRORIEP KZ10 350-360
Overview
Description

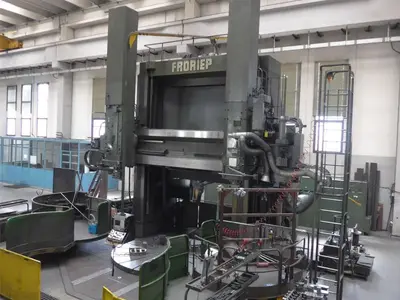

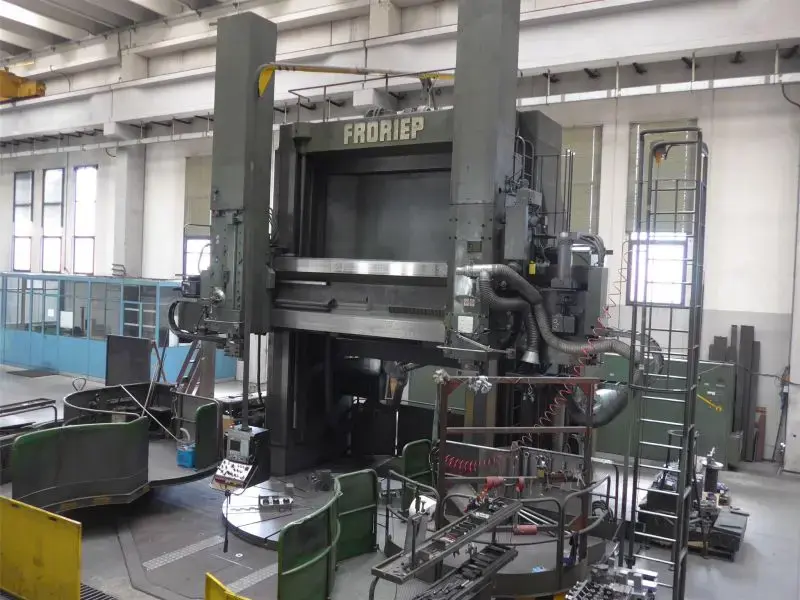

FRORIEP Model KZ310 350-360 Vertical Boring Mill with Fagor 8035 Control
Froriep, based in Rheydt, Germany, was a premier manufacturer of heavy-duty machine tools, specializing in vertical boring mills, vertical lathes, and specialized railway wheel production machinery. Known for high-precision, large-capacity machines, Froriep merged with Schiess to become Schiess-Froriep, eventually focusing on heavy-duty vertical turning and boring machines.
Specifications
| Table Dia | 122.05" | 3,100.1 mm |
|---|---|---|
| Swing | 196.85" | 5,000 mm |
| Work Ht-U/R | 141.73" | 3,599.9 mm |
| Control | CNC | CNC |
Model KZ310 350-360
Swing diameter mm 3600 141.7"
Max. turning diameter over bed (mm) 3600 141.7"
Max. turning height (mm) 3600 141.7"
Faceplate diameter (mm) 3100 122"
Z-axis ram travel (mm)vertical rail 3000 118"
Max. table load (kg) 35000 77,000 lbs
Control Fagor 8035
Turning speeds 0.32 - 40 RPM
Total power requirement 70 kW 94 HP
Equipped With
Equiped With:
2x Ram head 250 x 250 mm
Chip conveyor
Mist extraction unit
Coolant system
