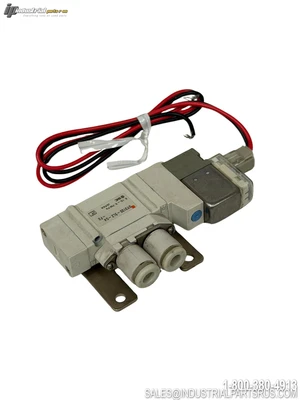

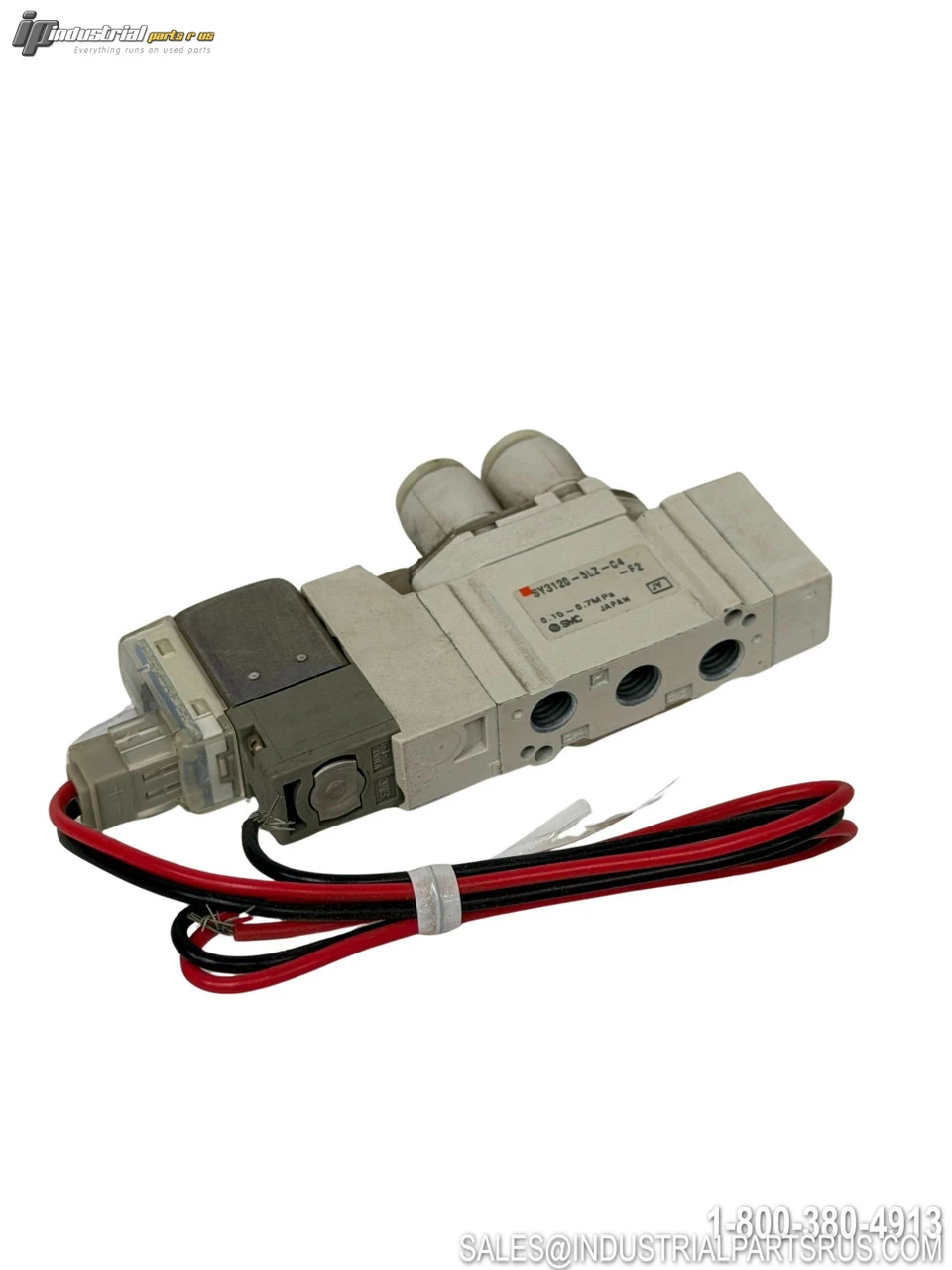

USED SMC SY3120-5LZ-C4-F2

The SMC SY3120-5LZ-C4-F2 is a 5-port, 2-position single solenoid valve from the SY3000 series designed for pneumatic air control applications. This body-ported valve features 24VDC coil voltage, internal pilot operation, and 4mm one-touch fittings for easy installation and reliable performance in automation systems.
Specification
Value
Brand
SMC
Model/Part Number
SY3120-5LZ-C4-F2
Series
SY3000
Valve Type
5-Port 2-Position Single Solenoid
Coil Voltage
24 VDC
Power Consumption
0.1 W (with power saving circuit)
Mounting Style
Body Ported
Pilot Type
Internal Pilot
Operating Pressure Range
0.1 - 0.7 MPa (Internal Pilot)
Fluid Media
Air
Port Size
4mm One-Touch Fitting
Thread Type
Rc
Electrical Entry
L-type Plug Connector with Lead Wire (300mm)
Surge Voltage Suppressor
With Light/Surge Voltage Suppressor
Manual Override
Push-turn Locking Type
Bracket
With Side Bracket
Response Time
32ms or less (0.5MPa, without indicator light)
Operating Temperature
-10°C to +50°C
We warranty all items for 30 days from date of purchase.

SKU: AI1266
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: SMC
Part Number: SY3120-5LZ-C4-F2
Shelf: A-10
Model: SY3120-5LZ-C4-F2
MPN: SY3120-5LZ-C4-F2
Type: Solenoid Valve
