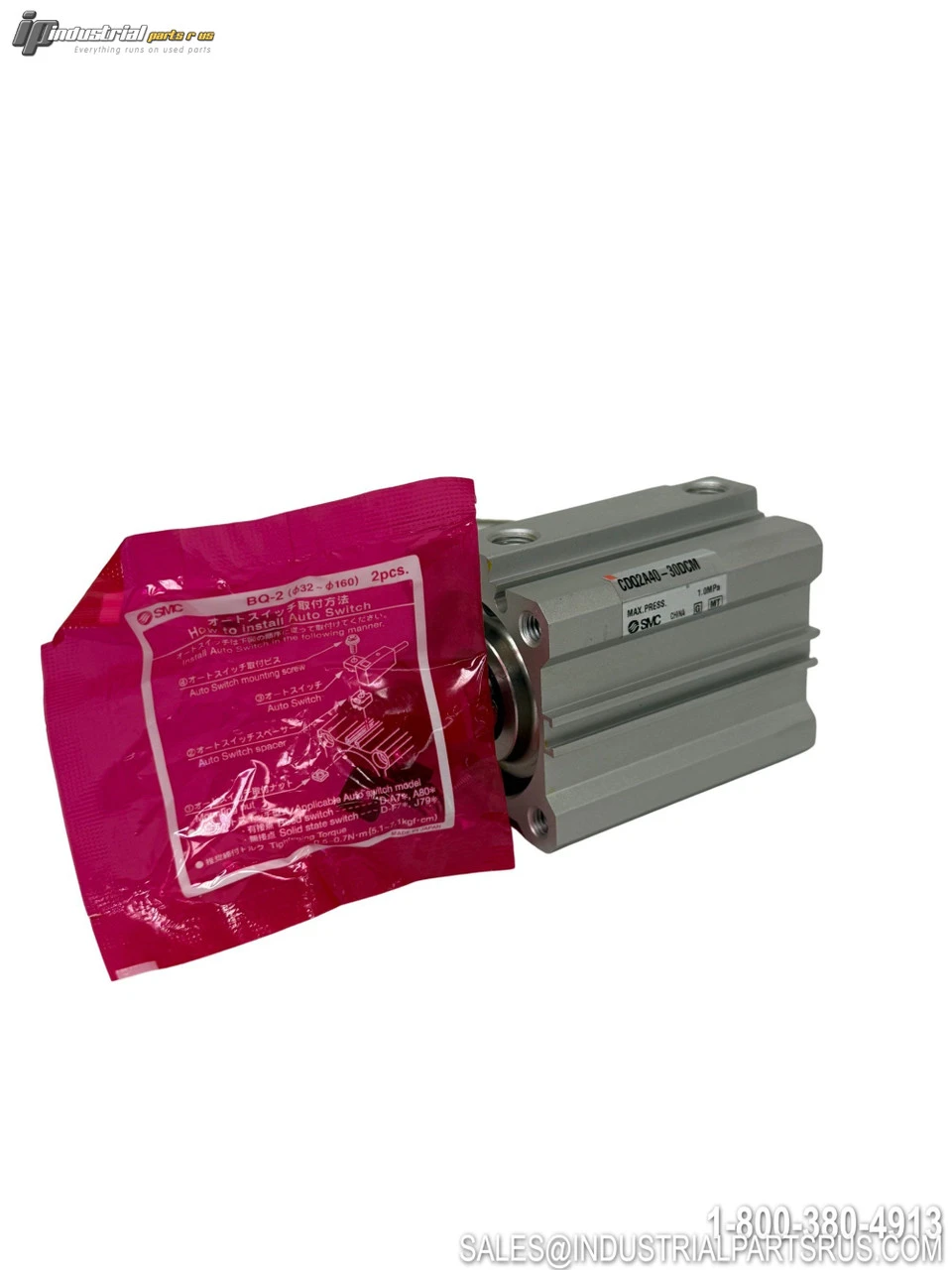

USED SMC CDQ2A40-30DCM

The SMC CDQ2A40-30DCM is a CQ2 series compact pneumatic cylinder designed for space-saving applications. This double acting cylinder features a 40mm bore diameter with a 30mm stroke length and built-in magnet for sensor mounting. The compact design makes it ideal for various jigs and equipment where space is limited.
Specification
Value
Brand
SMC
Model/Part Number
CDQ2A40-30DCM
Series
CQ2
Cylinder Type
Compact Cylinder
Action Type
Double Acting
Rod Type
Single Rod
Bore Diameter
40 mm
Stroke Length
30 mm
Mounting Type
Threaded Mount
Built-in Magnet
Yes
Support Bracket
Both Ends Tapped
Port Thread Type
Rc/M Thread
Rod End
Male Thread
Operating Pressure
1 to 1.5 MPa
Operating Temperature
-10 to 60°C
Auto Switch Mounting
4 Surfaces (32-100mm bore)
Product Status
Obsolete
We warranty all items for 30 days from date of purchase.

SKU: AI1238
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: SMC
Part Number: CDQ2A40-30DCM
Shelf: A-11
Bore Diameter: 40 mm
Model: CDQ2A40-30DCM
MPN: CDQ2A40-30DCM
Type: Pneumatic Cylinder
