Rigid Tapping
Remote Jog Handle
16 Position Side Mounted Dual Arm ATC

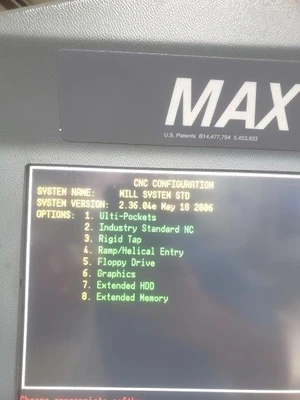

Conversational Programming
Ulti-Pockets
Ramp/Helical Entry
Graphics
Extended HDD
Extended Program Memory
Flood Coolant System w/ Tank & Pump
3.5" Floppy Disk Drive
RS 232 Port Interface
Work Light
Machine Status Lights
Wired 230V Electrics

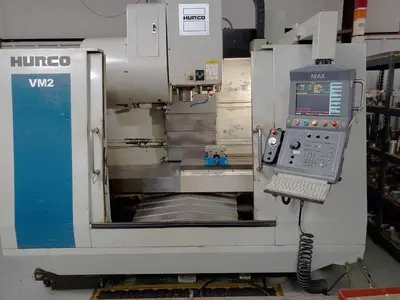

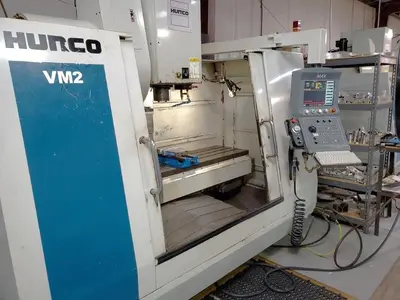

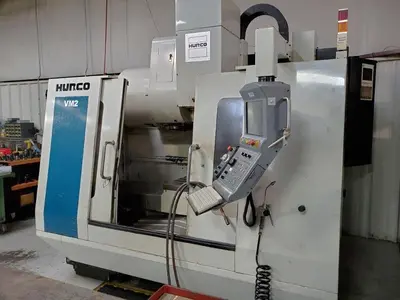

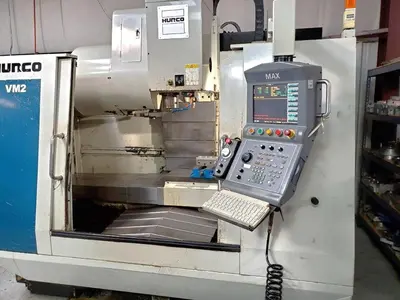

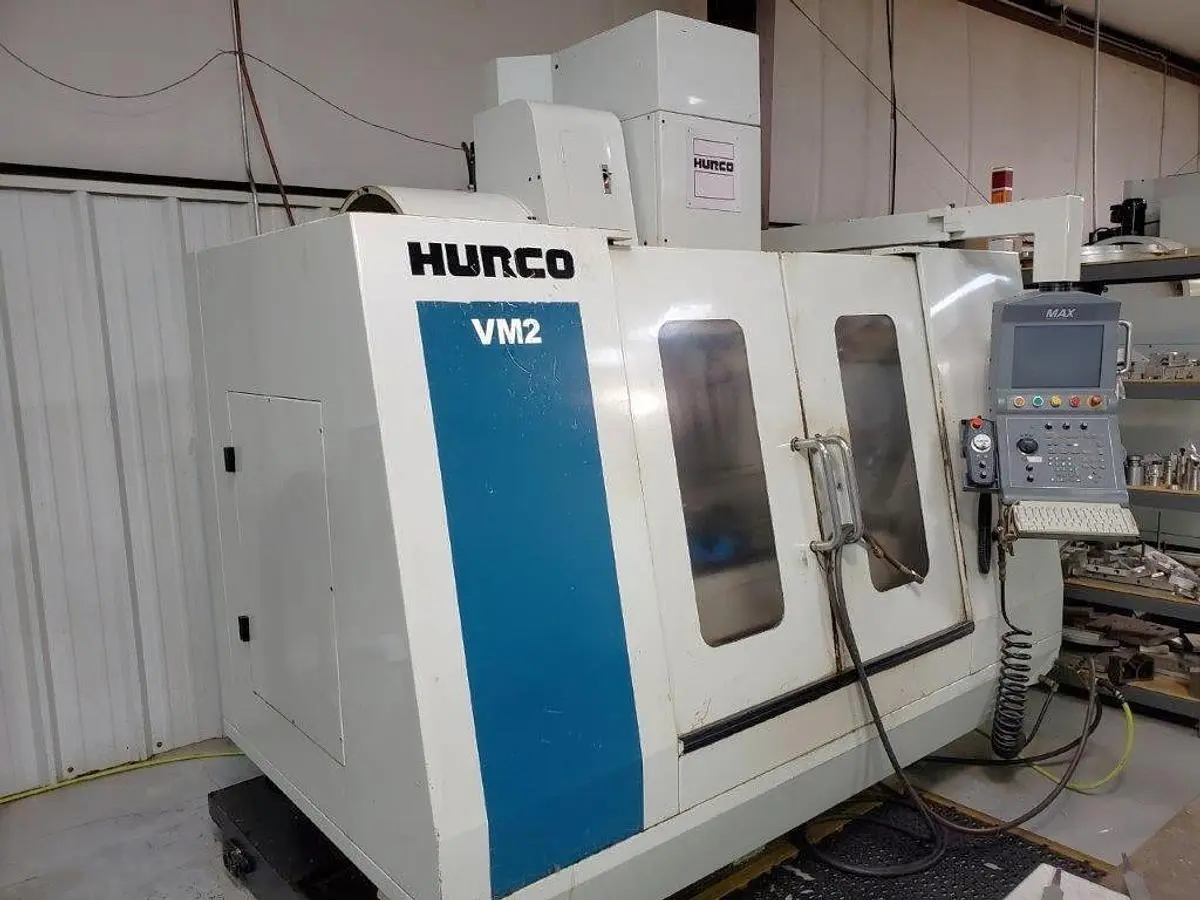

The 2003 Hurco VM2 is a robust CNC Vertical Machining Center built for precise and efficient machining tasks. This model features a 46" x 20" table, supporting a substantial load capacity of up to 1,200 lbs., making it suitable for a variety of workpieces. The machine is powered by a 20 HP spindle motor, capable of reaching speeds up to 8,000 RPM, and it offers a spindle torque of 75 ft./lbs. at 1,450 RPM. This ensures a balance of speed and power for demanding machining operations.
Equipped with the Hurco Max Control, the VM2 includes an array of practical features such as a 16-position side-mounted tool changer, facilitating quick tool switches for enhanced productivity. Its travel capabilities are impressive with X, Y, and Z travels of 40", 18", and 18" respectively. The rapid traverse rates are 945 IPM for the X and Y axes, and 750 IPM for the Z-axis, enabling swift positioning and reducing cycle times.
Achieving rigid tapping and extended memory capabilities, this model is fitted with a remote jog handle and a floppy drive for operational convenience. The machine's sturdy build, with an overall weight of 9,000 lbs., and dimensions of 100" x 81" x 92", emphasizes its industrial-strength design, making it an excellent choice for various manufacturing environments.

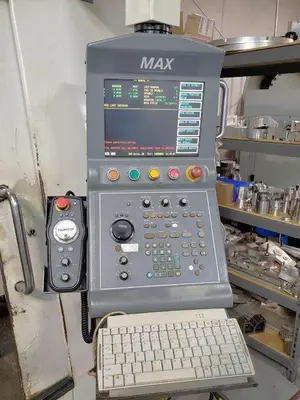

Control: Hurco Max Control

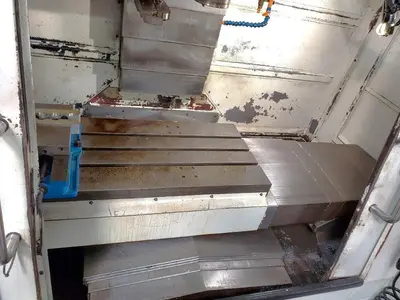

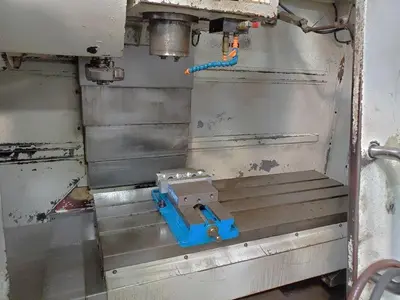

Table Size: 46" x 20"
Maximum Table Load: 1,200 lbs.
X-Axis Travel: 40"
Y-Axis Travel: 18"
Z-Axis Travel: 18"
Spindle Taper: CAT 40
Spindle Speeds: 8,000 RPM
Spindle Motor: 20 HP
Spindle Torque: 75 ft./lbs. @ 1,450 RPM
Number of Tool Positions: 16 Station Side Mounted Tool Changer
Rapid Traverse Rates X, Y / Z: 945 IPM / 750 IPM
Machine Dimensions: 100" x 81" x 92"
Machine Weight: 9,000 lbs.
