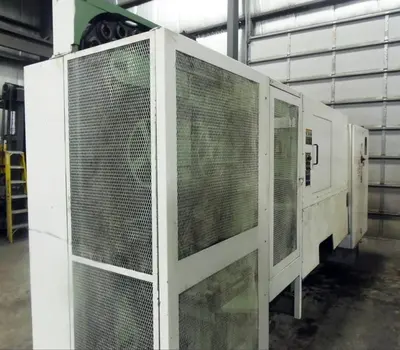

USED 1997 HITACHI SEIKI HI-CELL 40

5-Axis Capable

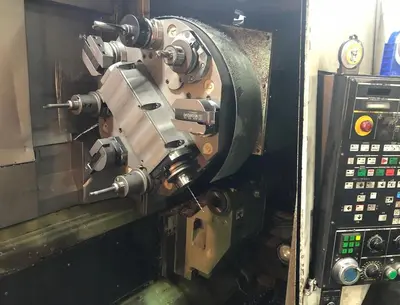

Live Millling/Drilling Capability
Y Axis Capability
C Axis Spindle Rotation

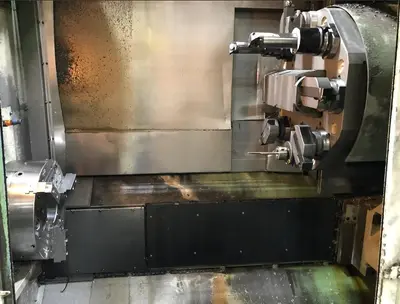

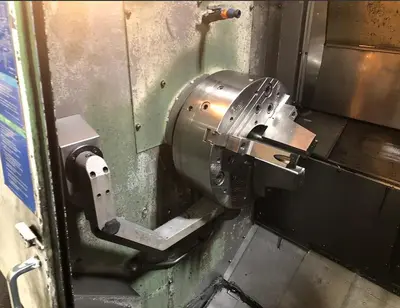

15" 3-Jaw Cushman Hydraulic Chuck
Tailstock
Tool Presetter
Chip Conveyor

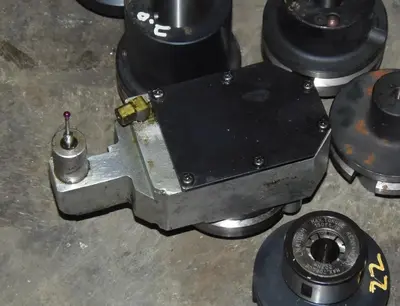

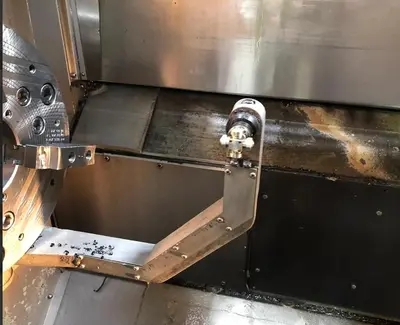

Probe

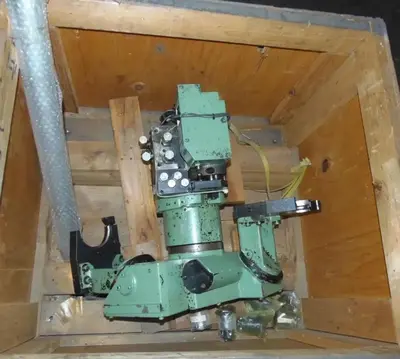

Extra Tool Changer Arm

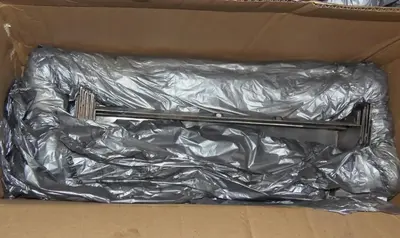

Unused Way Cover

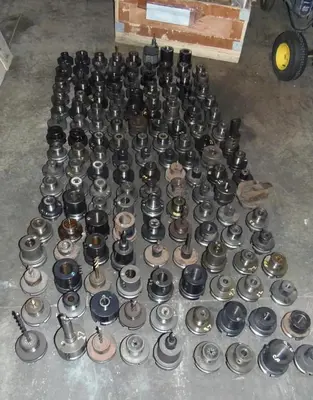

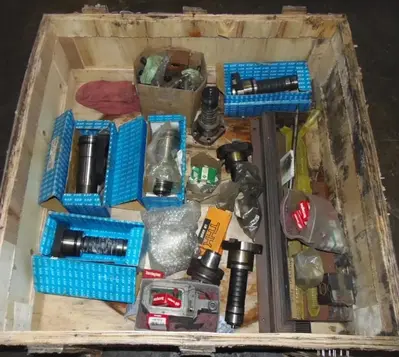

150 Tool Holders

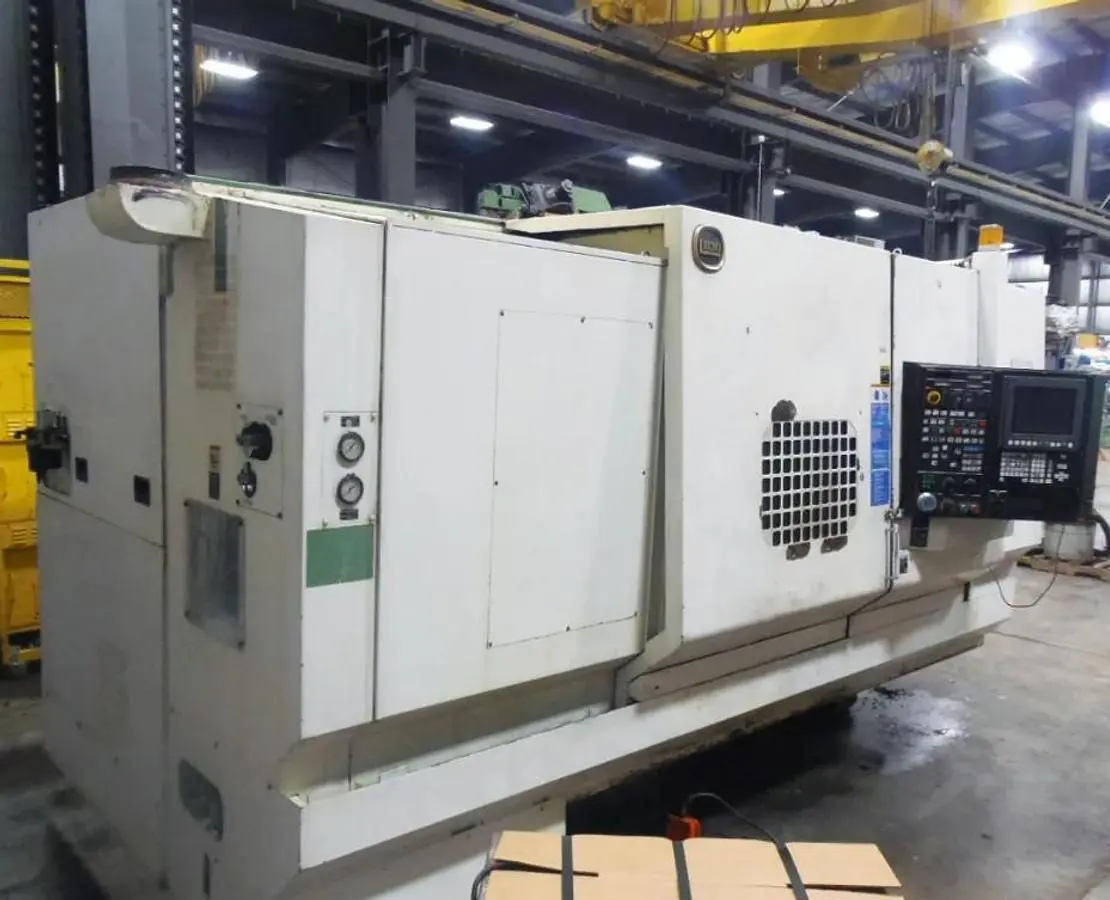

The 1997 Hitachi Seiki Hi-Cell 40 is a robust CNC lathe designed for demanding machining tasks. Equipped with a Seicos LIII-A control, it offers a substantial maximum swing of 27.6 inches and a generous machining length of 61.8 inches. The machine's 15-inch 3-jaw hydraulic chuck supports a bar capacity of up to 4 inches, making it versatile for various applications.

It features impressive axis travels with 13 inches on the X, 7.9 inches on the Y, and 63.8 inches on the Z-axis. The spindle operates at speeds ranging from 20 to 1,800 RPM across three gear ranges, powered by a 40 HP motor. Complementing this is a milling spindle capable of 2,000 RPM, driven by a 7.4 HP motor. The 90-station automatic tool changer allows for efficient operations, and the tool presetter and chip conveyor add convenience.

The Hi-Cell 40 also boasts rapid traverse rates of 590 IPM on the X-axis and 787 IPM on the Z-axis, enhancing productivity. Despite its extensive capabilities, it maintains a solid footprint with dimensions of 160" x 126" and a weight of 36,000 lbs. This machine is an excellent choice for operators seeking reliability and efficiency in metalworking tasks.

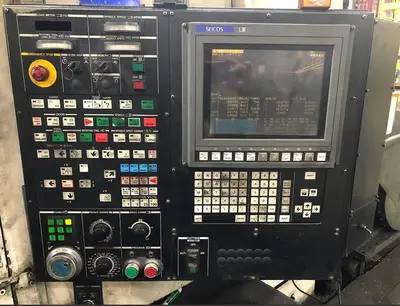

Machine Control: Seicos LIII-A
Chuck Size: 15" 3 Jaw Hydraulic Chuck
Maximum swing: 27.6"
Maximum Machining Length: 61.8"
X-Axis Travel: 13"
Y-Axis Travel: 7.9"
Z-Axis Travel: 63.8"
Spindle Nose / Spindle Bore / Bar Capacity: A2-11" / 4.7" / 4"
Spindle Speeds: 20-1,800 RPM - 3 Gear Ranges
Spindle Motor: 40 HP
Milling Spindle Speed: 2,000 RPM
Milling Spindle Motor: 7.4 HP

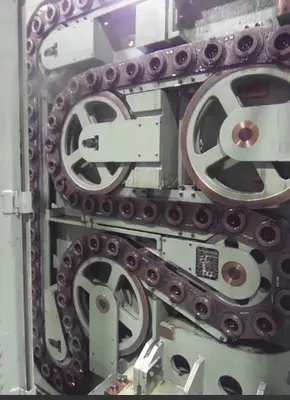

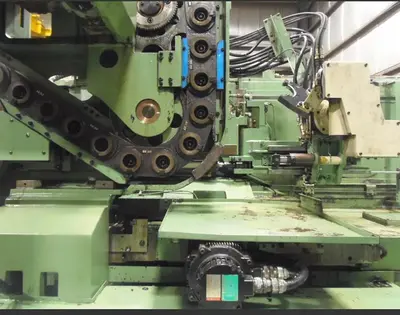

Tool Magazine Capacity: 90 Station Tool Changer
Rapid Traverse Rates X / Z: 590 ipm / 787 ipm
Tailstock Body Travel / Taper: 63" / #5 MT
Machine Dimensions LxWxH: 160" x 126"
Machine Weight: 36,000 lbs
