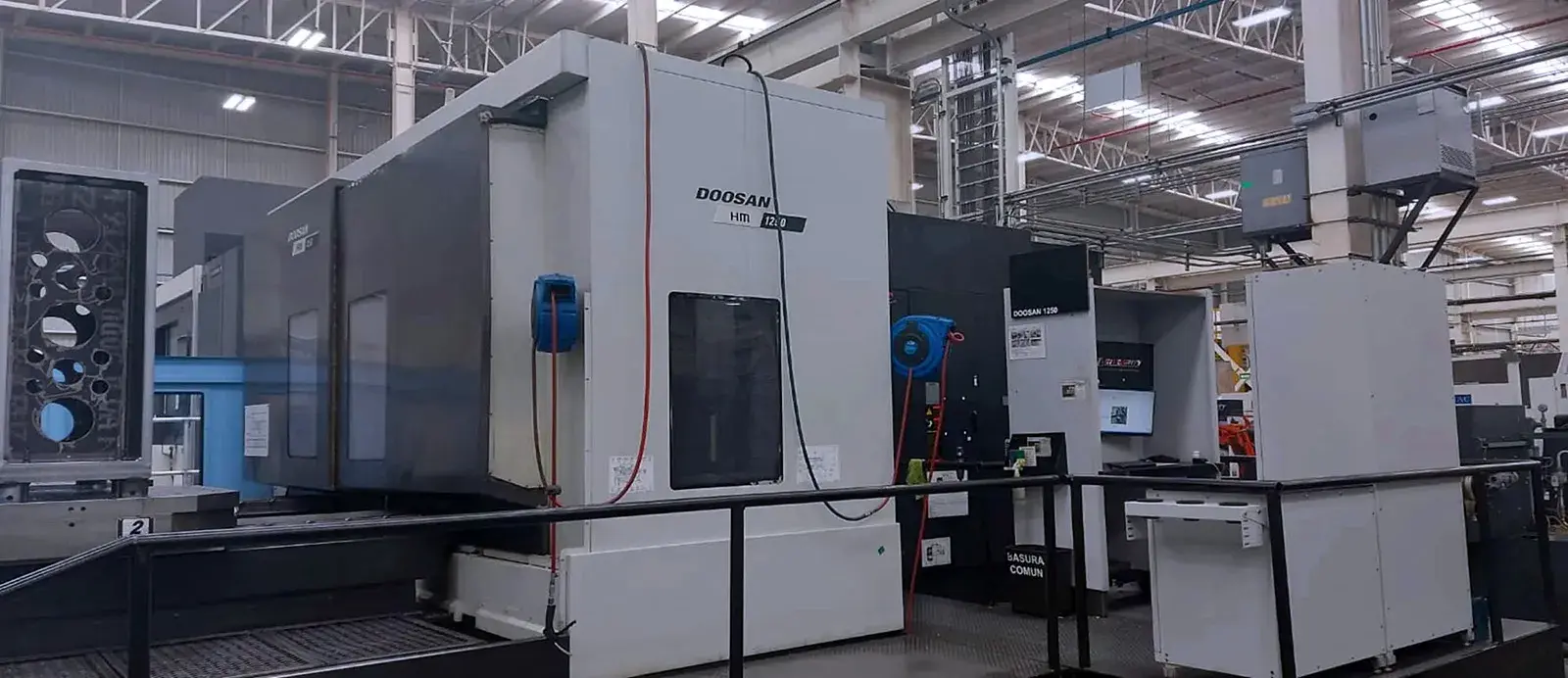

USED 2015 DOOSAN HM 1250
Overview
The Doosan HM 1250 Horizontal Machining Center (2015) with Fanuc 31i-B control is a powerful, twin-pallet CNC built for high-precision, large-part machining. Ideal for aerospace, automotive, and heavy equipment industries, it delivers high-torque cutting for steel and titanium, ensuring rigidity, accuracy, and efficient production of complex components.
Specs

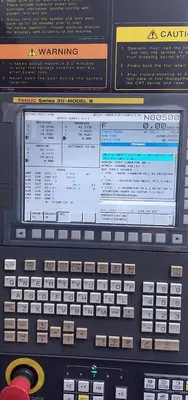

Fanuc Series 31iB Control
Coolant Thru Spindle
90 Tool Capacity
CAT 50 Spindle Taper
Renishaw Probing

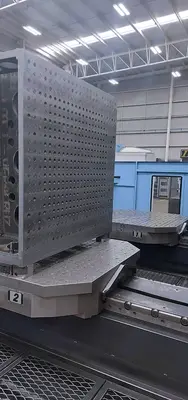

Pallet Size (2 Pallets): 49.2" X 49.2"
X-Axis Travel: 82.69"
Y-Axis Travel: 59"
Z-Axis Travel: 59"
DISTANCE FROM SPINDLE CENTER TO PALLET TOP: 1.9" TO 61"
DISTANCE FROM SPINDLE NOSE TO TABLE CENTER: 11.2" TO 70.2"
Pallet Load Capacity: 13,320 LBS
Pallet Indexing: 1 DEGREE
Maximum Workpiece Size: 78.74" X 67.9"
MAXIMUM SPINDLE SPEEDS: 6,000 RPM
Spindle Taper: 50
Spindle Motor: 50 HP
Rapid Traverse Rate: 945 IPM
Cutting Feed Rate: 472 IPM
Tool Changer Capacity: 90 TOOLS
MAX TOOL DIAMETER (CONTINUOUS/ADJACENT PORTS ARE EMPTY): 5.1"/11.8"
Maximum Tool Length: 25.5"
Maximum Tool Weight: 55 LBS
Machine Size: 402" L, 229" W, 160" TALL
Machine Weight: 68,200 LBS
Equipped With
Fanuc Series 31iB Control
Coolant Thru Spindle
90 Tool Capacity
CAT 50 Spindle Taper
Renishaw Probing
