Under Power! Readily Available!

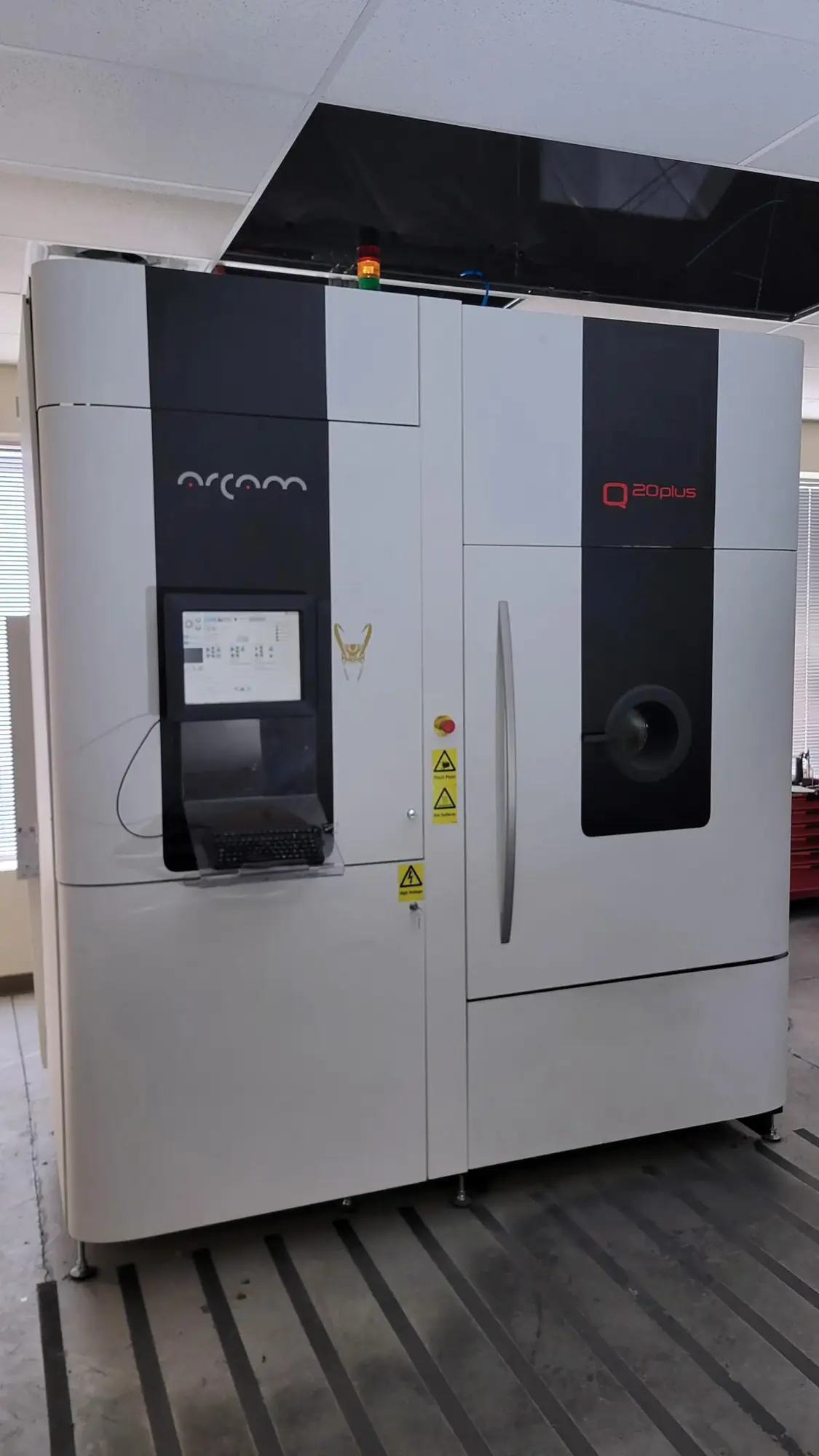

The Arcam AB Q20+(2015) is a high-productivity metal 3D printer built for cost-efficient production of complex, large-format titanium parts. Utilizing advanced EBM technology, it excels in aerospace and defense applications, including turbine blades and structural components. Also ideal for medical implants, delivering precision, strength, and repeatability in additive manufacturing.
Max. build size: ⌀13.78" × 14.96" (Ø × H)
Max. beam power: 3 kW
Min. beam diameter : 0.0055"
Max. EB translation speed: 26,247 ft/s
Min. chamber pressure: 7.25 × 10⁻⁶ psi
Typical build atmosphere : 5.80 × 10⁻⁵ psi (partial pressure of He)
He consumption (build process): 0.14 ft³/hr
He consumption (ventilation): 3.53 – 5.30 ft³/build
Power Supply: 3 × 400 V, 32 A, 7 kW

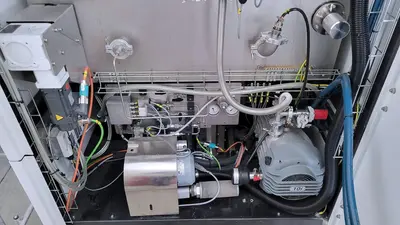

Vacuum
Throttle Plates
Materials Ran: Ti-64 (Only used Arcam Supplies)
Maintenance Records Upon Request
