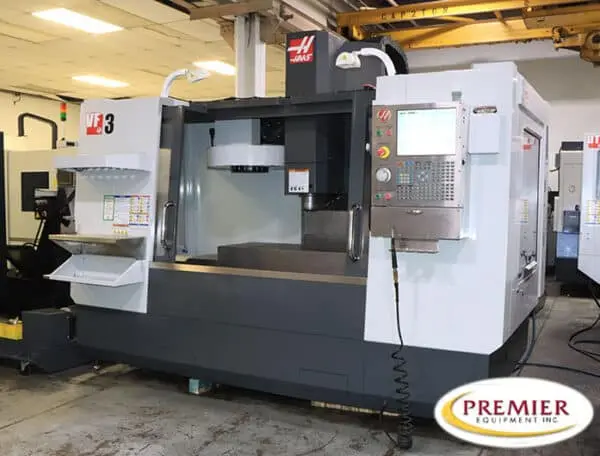

HAAS VF3 CNC Mill
VERTICAL MACHINING CENTER
X-AXIS TRAVEL…………………….. 40″ – 1016mm
Y-AXIS TRAVEL…………………….. 20″ – 508mm
Z-AXIS TRAVEL…………………….. 25″ – 635mm
SPINDLE NOSE TO TABLE……………… 4″ TO 29″
TABLE SIZE……………………….. 18″ X 48″
MAXIMUM WEIGHT ON TABLE……………. 3,500 LBS
SPINDLE SPEED MAX ………………… 10,000 RPM
SPINDLE MOTOR…………………….. 30 HP
SPINDLE TAPER…………………….. CAT 40
TOOL CHANGER …………………….. 20 + 1 POSITIONS
RAPID TRAVERSE RATE……………….. 1000 IPM
MAX CUTTING FEEDRATE………………. 650 IPM
APPROX MACHINE WEIGHT……………… 12,500 LBS
EQUIPPED WITH
– HAAS CNC CONTROL:
RIGID TAPPING, ROTATION & SCALING, QUICK CODE,
M19 SPINDLE ORIENTATION, ADVANCED TOOL MANAGEMENT
MACROS, USB PORT, ENABLE DNC
– REMOTE JOG HANDLE (RJH)
– WIRELESS INTUITIVE PROBING SYSTEM (WIPS)
– RENISHAW PART & TOOL PROBES
– 20 POCKET CAROUSEL TOOL CHANGER
– HIGH INTENSITY LIGHTING
– CHIP AUGER
– 30 HORSE POWER SPINDLE DRIVE
