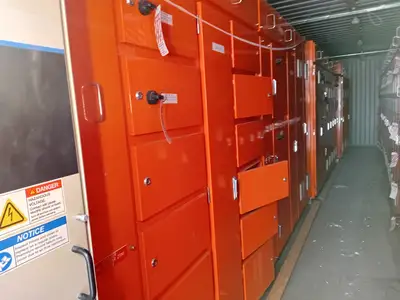

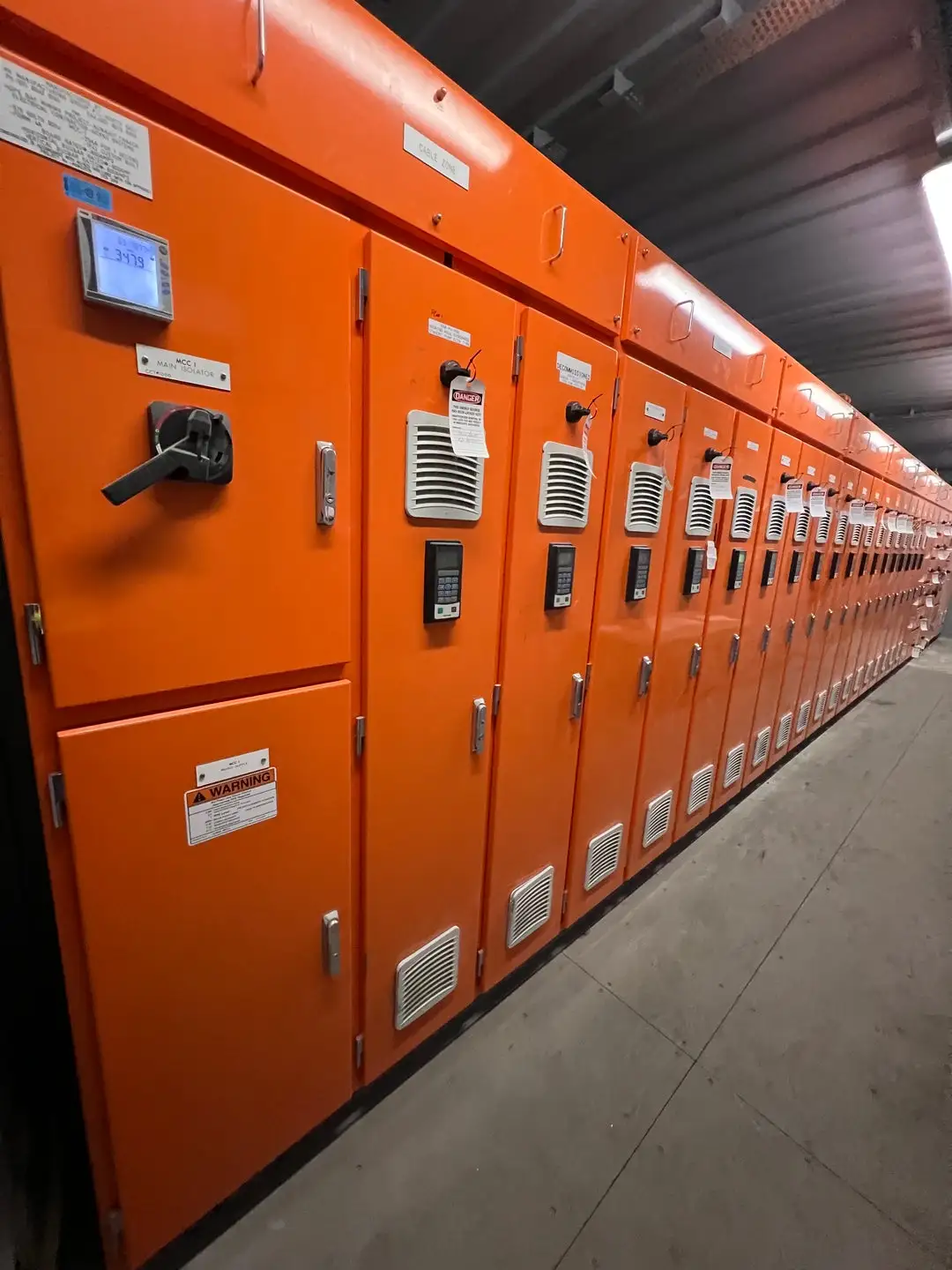

1200A Motor Control Center MCC, 575V, 1200A Bus, Form 4A, IP42 Enclosure

Original Designation: MCC-O Gravity & Grinding area
Bus Voltage: 575 V
Short Circuit Rating: 25 kA rms Sym
Board Rated: 1200 A
Horizontal Busbar Rated: 1200 A
Vertical Busbar Rated: 1200 A
Form: 4A
Enclosure: IP42 custom built
Main Equipment Summary
Main Switch: (1) 1200 A switch
Motor Control Assemblies:

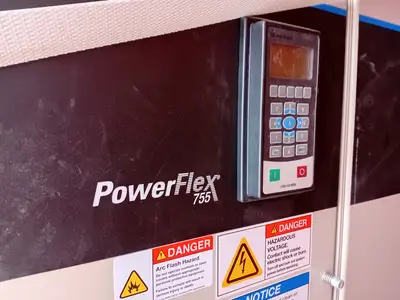

(1) 450 kW, VSD free standing, external to MCC
(1) 0.18 kW
(1) 4 kW
(3) 7.5 kW
(1) 1.5 kW
(1) 55 kW
(1) 2.33 kW
(1) 3 kW
(1) 0.055 kW
Supply Sections:

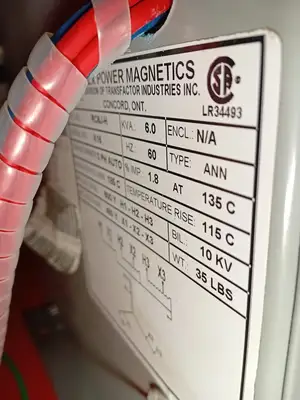

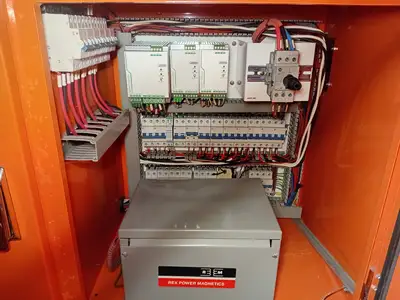

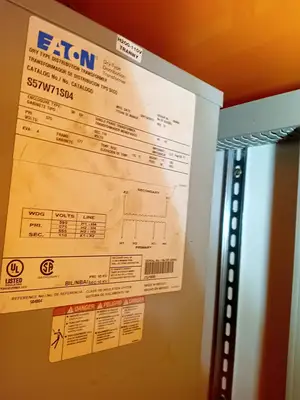

(1) 4 kVA, 575 VAC to 110 VAC Control Transformer
(3) 575 VAC to 24 VDC Control Power Supply
