USED 2015 SOUTHWESTERN INDUSRIES PROTOTRAK TRL 1630SX

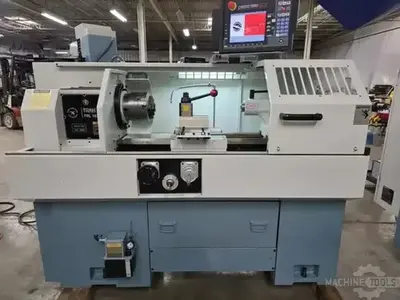

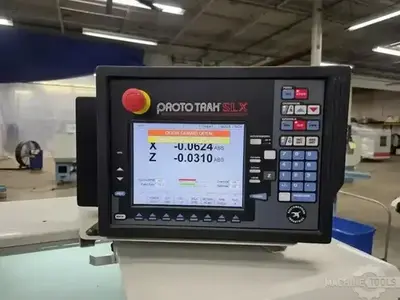

Southwestern Indusries ProtoTRAK TRL 1630SX CNC Lathe w/ ProtoTRAK SLX Control

General Info

Stock #: 163260006
Location: VA
Brand: Southwestern Indusries ProtoTRAK
Model: TRL 1630SX
Year: 2015
Approx. Shipping Weight: 3,500 lbs
Approx. Shipping Dimensions: 87"L x 45"W x 67"H
Loading Fee: Free Loading

Specifications

Height of Centers: 8"
Distance Between Centers: 30"
Swing Over Bed: 16"
Swing Over Saddle Wings: 16"
Swing Over Cross Slide: 8.6"
Cross Slide Travel: 8.5"
Tool Section Max: 3 /4"
Coolant Tank Capacity: 8 Gallon
Width of Bed: 12.6"
Height of Bed: 12.6"
Spindle Nose: D1-6
Spindle Through Hole: 2.12"
Spindle Taper: MT#6
Spindle Diameter at Front Bearing: 3.15"
Spindle Speed Range (RPM): 150-2500
Tailstock Quill Travel: 5"
Quill Diameter: 2.36"
Quill Taper Hole: MT#4
Spindle Motor HP: 7.5 HP

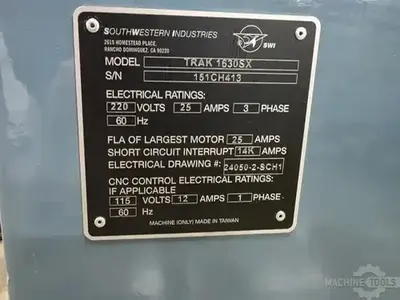

Power Requirements (Control): 110v 1-Phase , 8 Amps
Power Requirements (Machine): 220v 3-Phase, 60Hz
FLA: 25

Equipped With

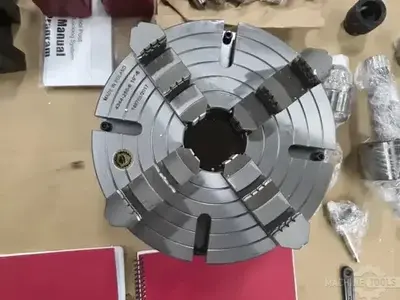

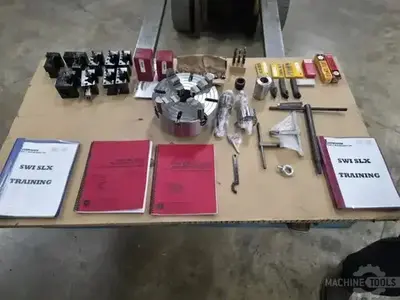

Brand New Bison 4-Jaw Chuck, Loads of New Tooling, and More (Comes As Pictured)

Additional Info
This machine was very lightly used and is in excellent condition. It can be inspected under power upon request.
