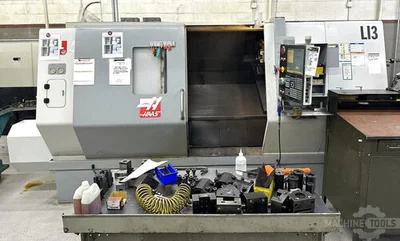

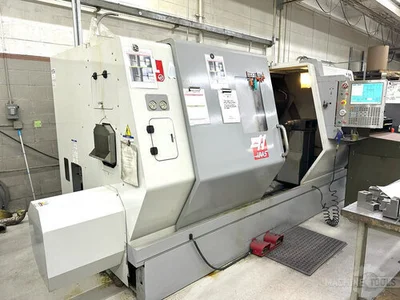

HAAS SL-40, 55HP CNC Lathe (2011)
| Swing | 40" | 1,016 mm |
| Machining Length | 51" | 1,295.4 mm |
| # Axis | 2 | 2 |
| Chuck Size | 15" | 381 mm |
| Bar Capacity | 4" | 101.6 mm |
| Power | 40 hp | 29.8 kW |
| Max RPM | 2,400 RPM | 2,400 RPM |
| Turning Dia | 25.5" | 647.7 mm |
| Tailstock | Yes | Yes |
General Info
Stock #: 113260007
Brand: HAAS
Model: SL-40
Year: 2011
Specifications
Max Swing: 40"
Max Cutting Diameter: 25.5"
Max Cutting Length: 44"
X-Axis Travel: 17"
Z-Axis Travel: 44"
Chuck Size: 15"
Bar Capacity: 4"
Spindle Bore: 4.6"
Spindle Nose: A2-8
Spindle Motor: 55 hp
Spindle Speed: 2400 RPM

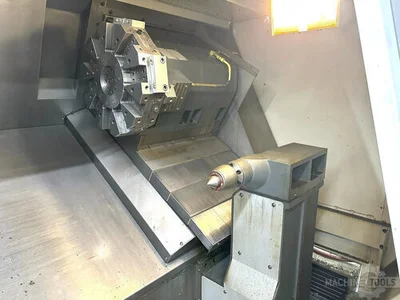

Turret Positions: 10
2-Speed Gearbox: Included
High-Torque Extra-Performance Package: Included
Programmable Tailstock: Included
High Pressure Coolant System: Included
Remote Jog Handle: Included
Extra Rapid Traverse: Included
Spindle Load Monitor: Included

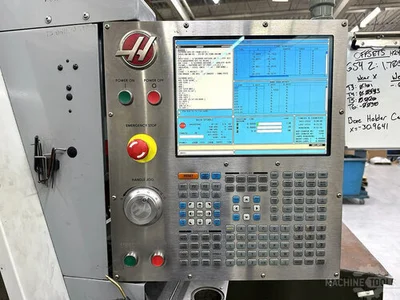

Intuitive Programming System: Included
Spindle Drive Line Accelerator: Included
Rigid Tapping: Included
Quick Code: Included
Equipped With

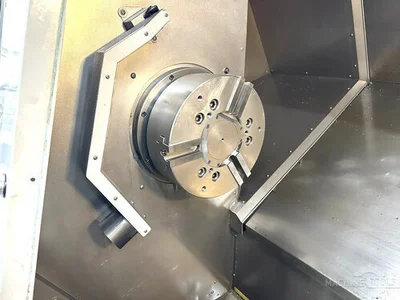

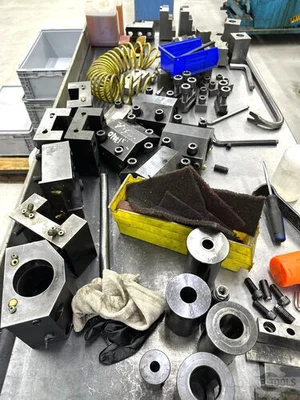

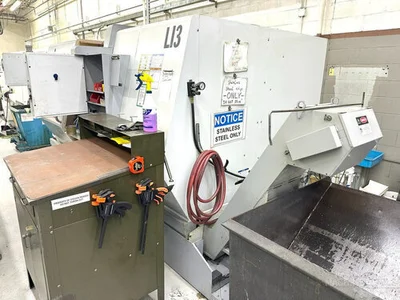

15" 3-Jaw Hydraulic Chuck, Tool Presetter, Chip Conveyor, Tooling as Pictured Included
Additional Info

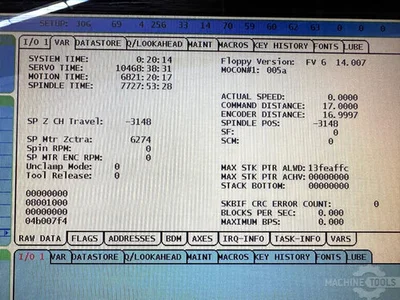

Spindle Time: 7727 Hours, Machine Cut Primarily Stainless Steel, Machine Manufactured Date: September 2011, Replacement Cost New as Equipped: $218000, In Plant, Under Power, Available for Immediate Inspection & Purchase
