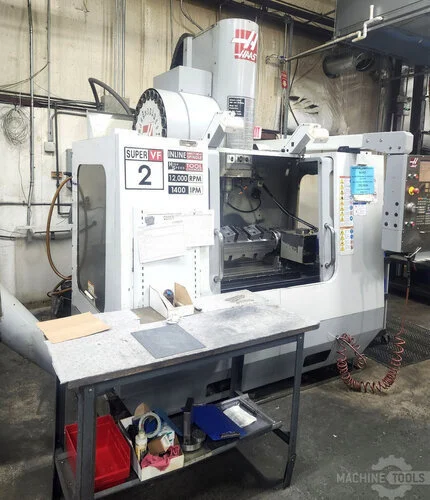

HAAS VF-2SS, TSC, PROBE Vertical Machining Centers (2008)
| X | 30" | 762 mm |
| Y | 16" | 406.4 mm |
| Z | 20" | 508 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 24 | 24 |
| Taper | CT or BT 40 | CT or BT 40 |
| Table-W | 14" | 355.6 mm |
| Table-L | 36" | 914.4 mm |
General Info
Stock #: 113260010
Brand: HAAS
Model: VF-2SS
Year: 2008
Approx. Machine Weight: 9200 lb
Approx. Machine Dimensions: 111" x 89" x 101"
Specifications
Table Length: 36"
Table Width: 14"
Table Capacity: 1500 lb
X-Axis Travel: 30"
Y-Axis Travel: 16"
Z-Axis Travel: 20"
Spindle Speed: 12000 RPM
Spindle Motor: 30 hp
Spindle Taper: CAT 40
Tool Capacity (ATC): 24
Rapid Traverse - X Axis: 1400 in/min
Rapid Traverse - Y Axis: 1400 in/min
Rapid Traverse - Z Axis: 1400 in/min
4th Axis Ready: Yes
High Speed Machining: Yes
Rigid Tapping: Yes
Spindle Orientation: Yes
Coordinate Rotation & Scaling: Yes
Quick Code Macros: Yes
Equipped With

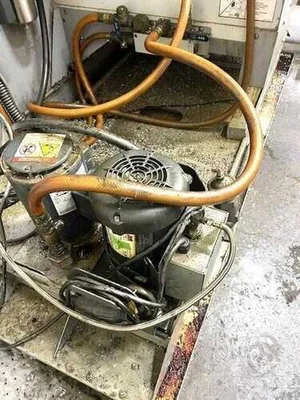

Through Spindle Coolant, Wireless Intuitive Probing System, Programmable Coolant, 24-ATC Sidemount Tool Changer, Air Gun, Chip Auger, Remote Jog Handle, High Intensity Lighting, USB
Additional Info
Original Owner, Single Shift Environment, Machine Cutting Primarily Aluminum, Spindle Replaced 2022, In Plant, Under Power, Ready for Immediate Inspection & Purchase
